Description
Type
#3: 1 x G6 Metal Mechanical Paw (Without Servo)
#3: 1 x G6 Metal Mechanical Paw (Without Servo)
Type

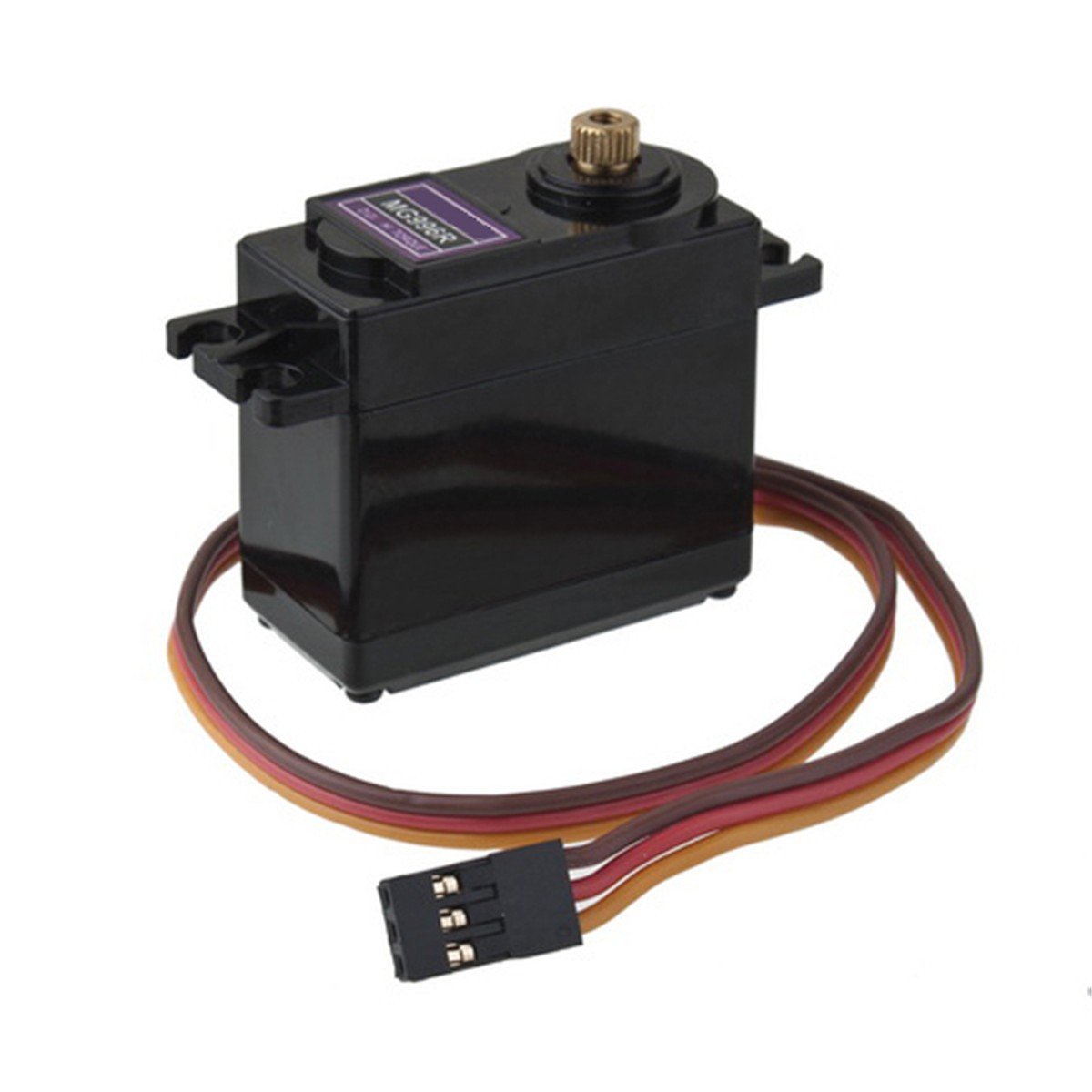

#2: 1 x G6 Metal Mechanical Paw with MG996R Servo
#2: 1 x G6 Metal Mechanical Paw with MG996R Servo
Type
#1: 1 x G6 Metal Mechanical Paw with DT-3316 Digital Servo
#1: 1 x G6 Metal Mechanical Paw with DT-3316 Digital Servo
Description:

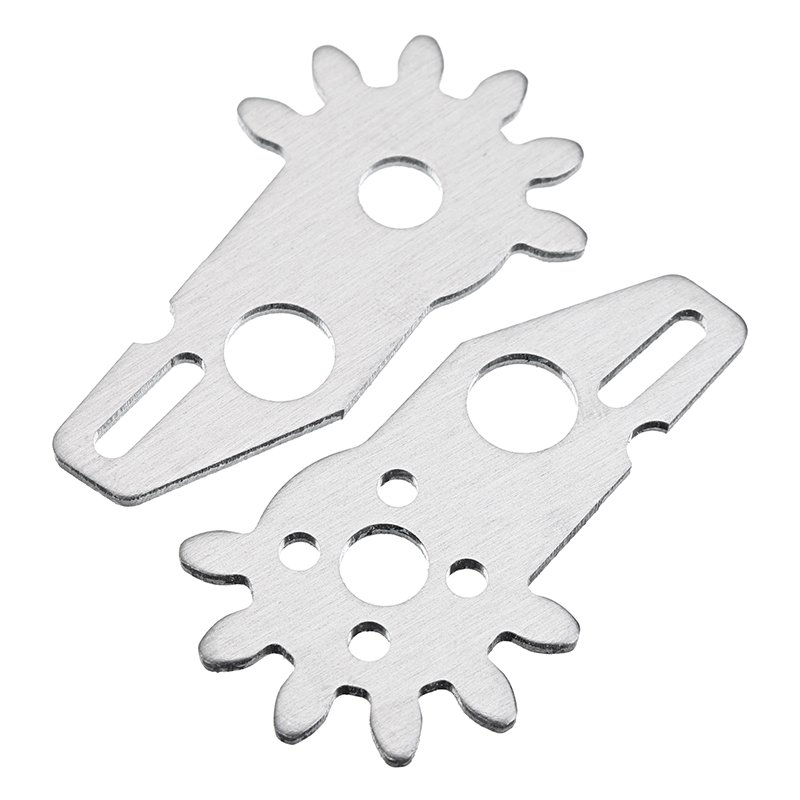

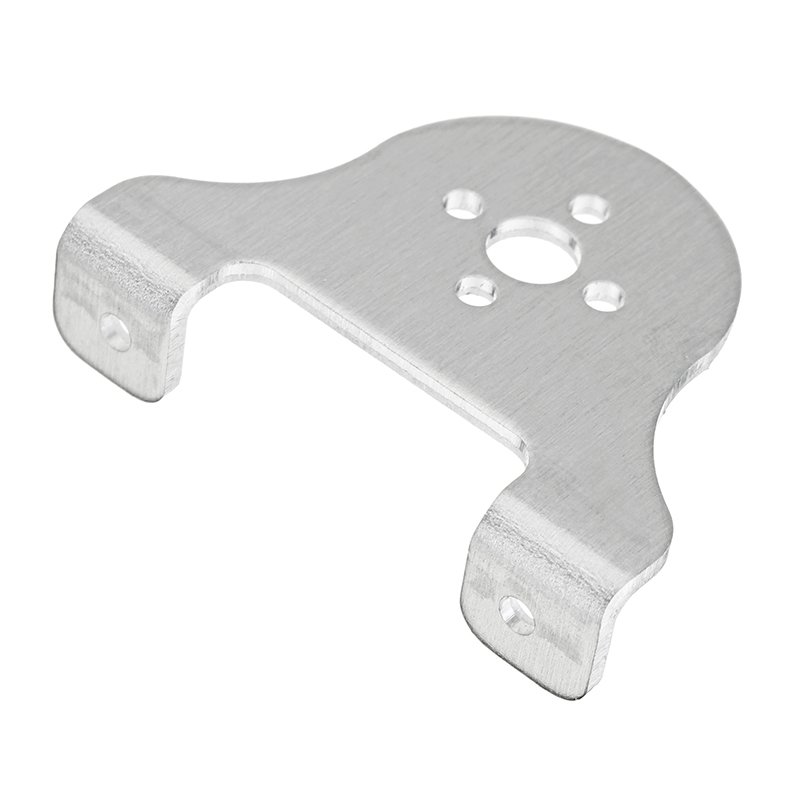

– The mechanical gripper is made of thick hard aluminum alloy, beautiful and practical

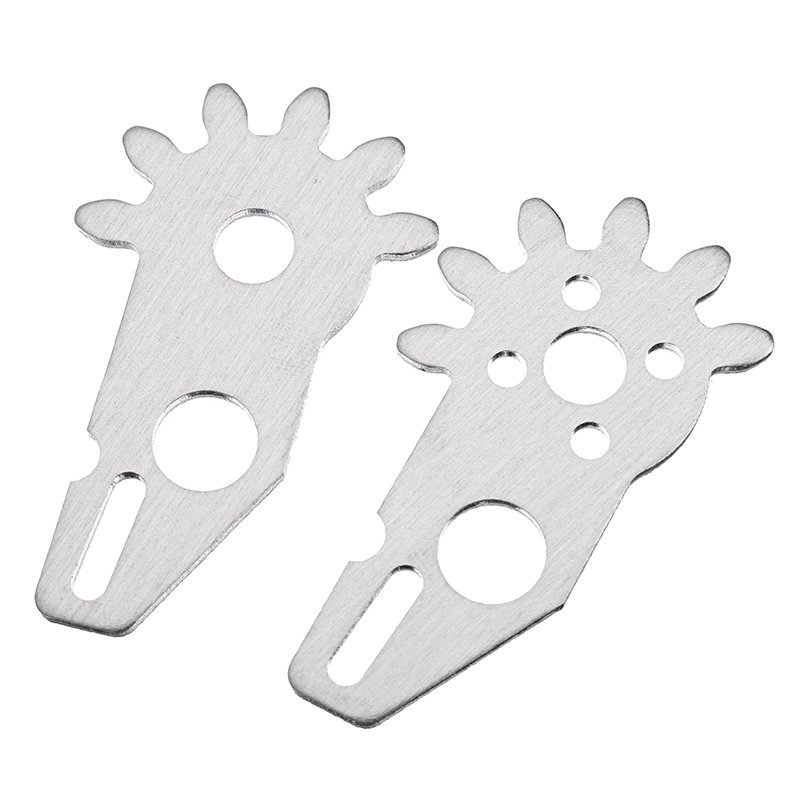

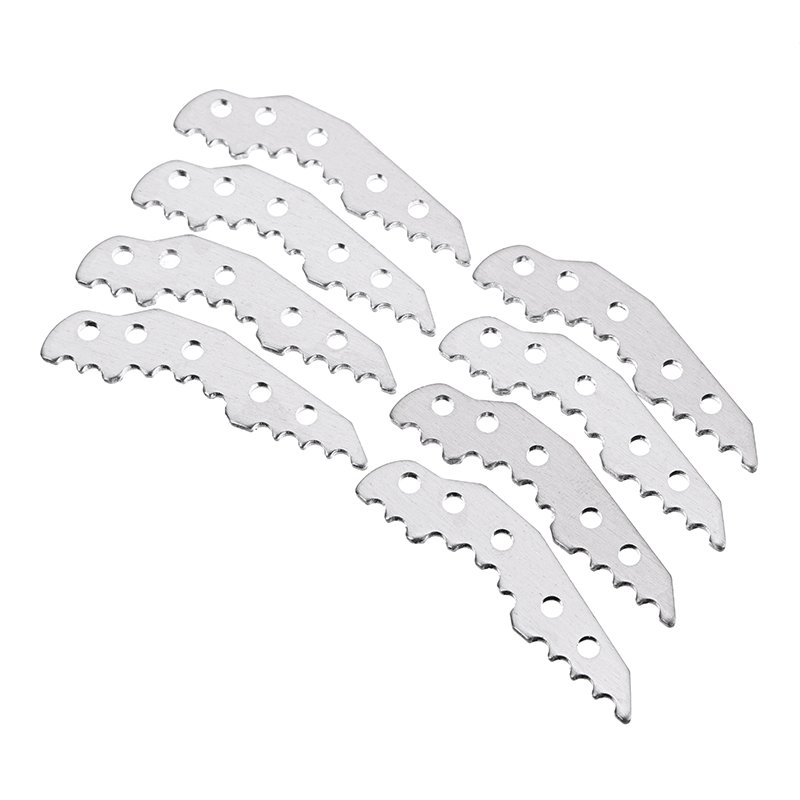

– With the two-sided toothed structure, the grippers grip the object more firmly and securely
– Standard servos can be installed, perfectly compatible with the MG995 MG996 MG946 SG5010.
Specifications about single mechanical gripper:
– Paw material: hard aluminum alloy
–
Paw weight: about 40g (without servo)
Paw weight: about 40g (without servo)
–
Maximum pawl spacing: 86mm
Maximum pawl spacing: 86mm
–
Overall length of paw: 83mm (maximum overall length when claws are closed)
Overall length of paw: 83mm (maximum overall length when claws are closed)
–
The width of the paw is 1:150mm (the maximum overall width when the paw is opened)
The width of the paw is 1:150mm (the maximum overall width when the paw is opened)
–
Overall width of paw 2:55mm (maximum overall width when claws are closed)
Overall width of paw 2:55mm (maximum overall width when claws are closed)
–
Overall thickness of paw: 54mm (maximum overall thickness with rudder claw)
About

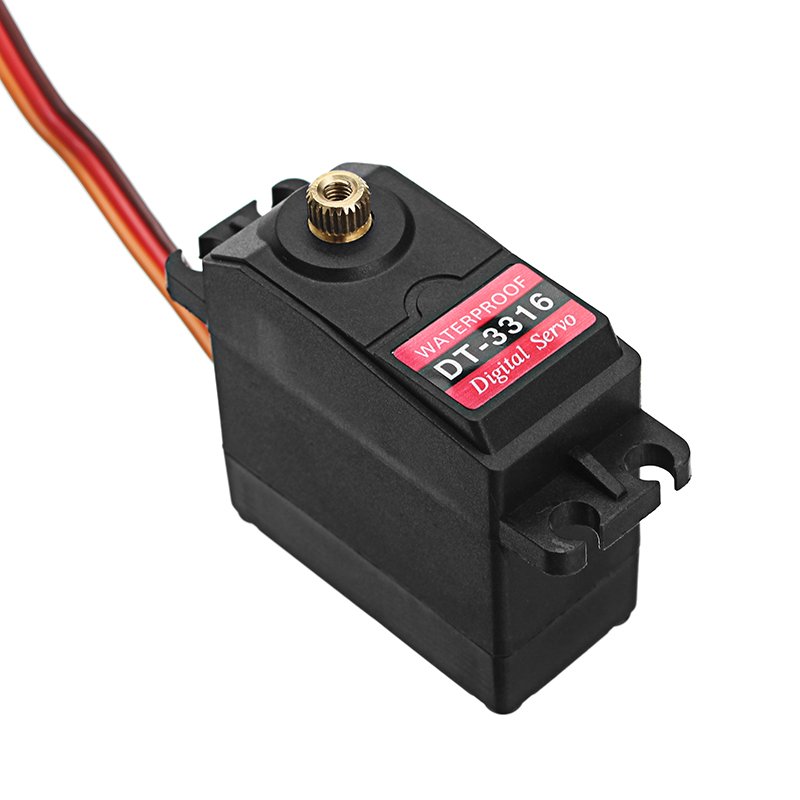

DT-3316 Digital Servo parameters:
Overall thickness of paw: 54mm (maximum overall thickness with rudder claw)
About
DT-3316 Digital Servo parameters:
– Torque (4.8V) 12.0kg/mg
– Torque (6.6V) 15.0kg/mg
– Speed: 0.07 seconds (4.8V) / 0.06 seconds (6.0V)
– Working voltage: 4.8v/6.6v DC voltage
– Weight: 55g
– Bearing type: ball bearing × 2
– Motor type: High-speed magnetic high-speed motor
– Gear type: copper and aluminum
– Working temperature: -20 ℃ -60 ℃
– Working frequency: 500μs / 2500hz
Package Included:

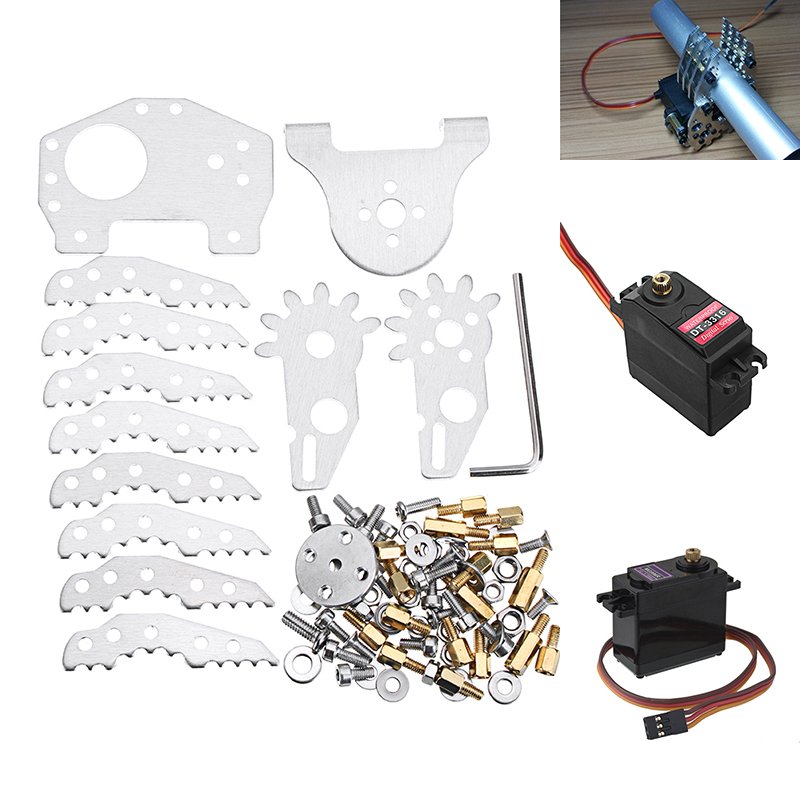

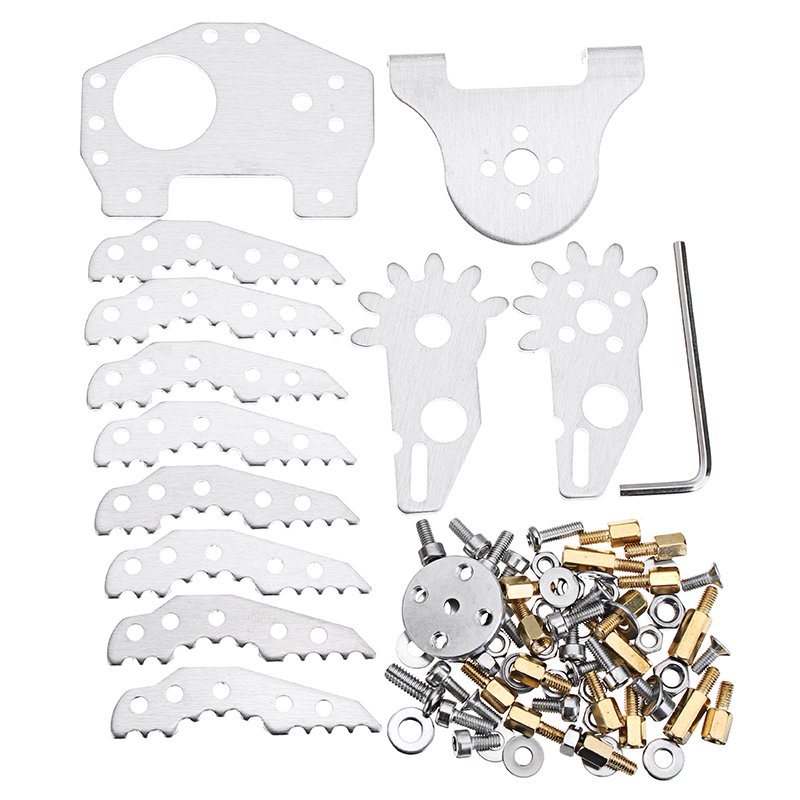

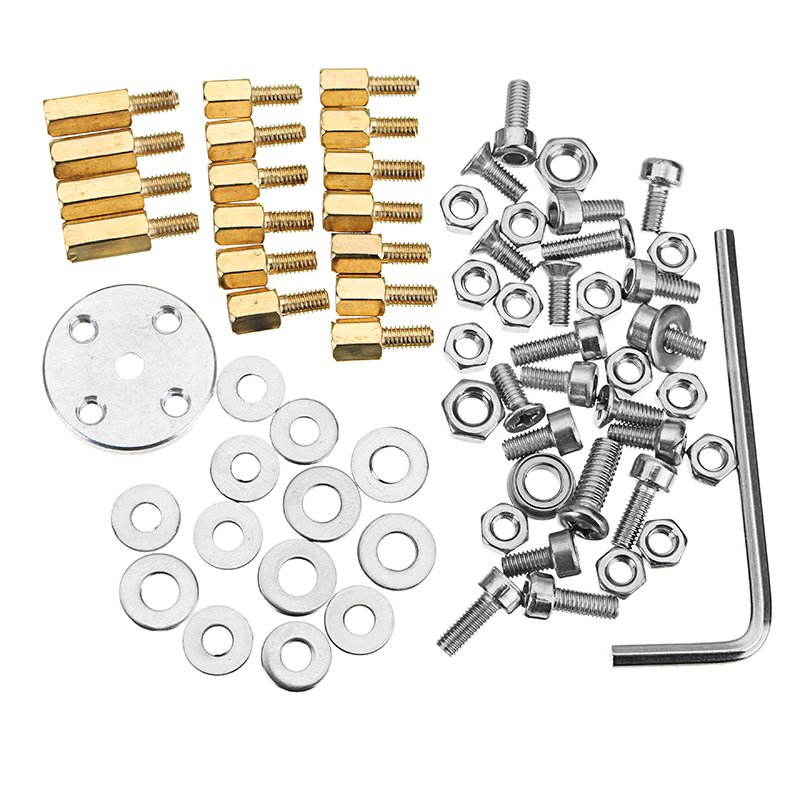

1 x G6 Metal Mechanical Paw (With / Without Servo)
