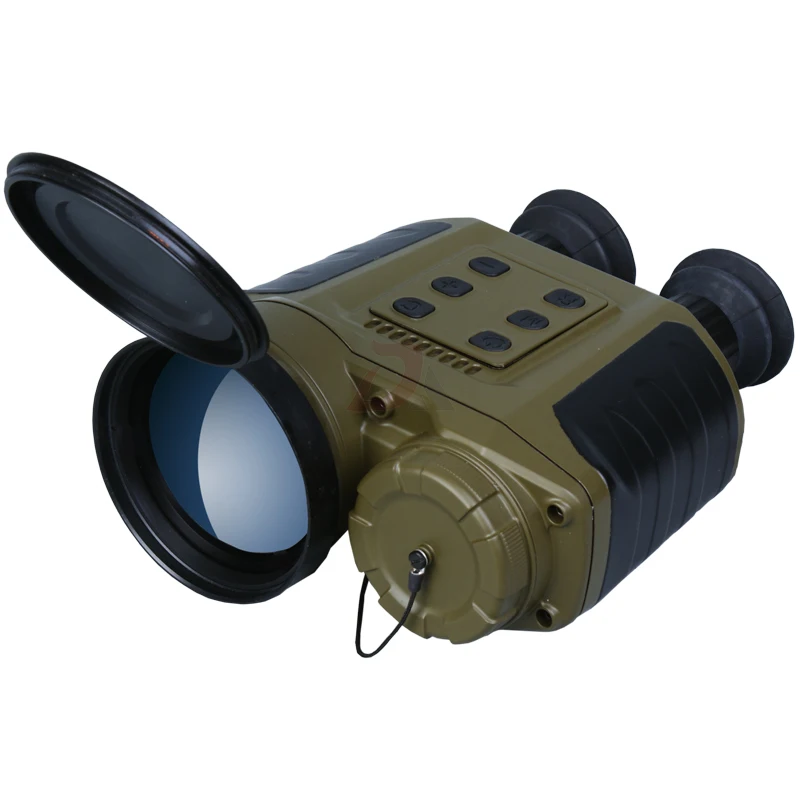

Long detection range binocular thermal imaging night vision reconnaissance scope

Specifications:



Item	Specification

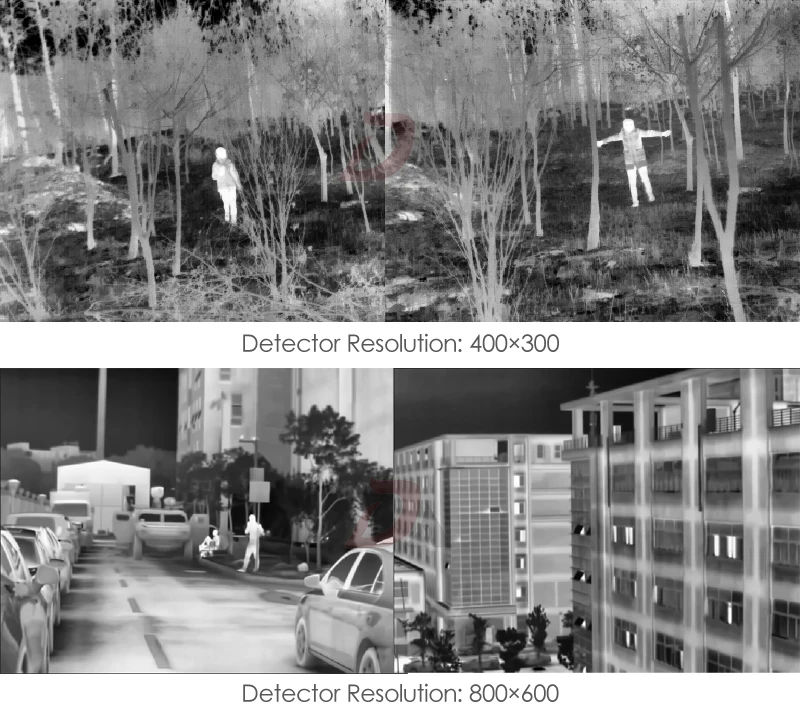

Detector Resolution	800×600，17μm
Spectral Range	8μm～14μm
Detector type	uncooled focal plane detector
Lens	70mm
FOV	11.1°×8.31°(±5%)
Image Enhancement	Auto image filtering and sharp
Brightness/Contrast	Auto/Manual
Polarity	White-hot/black-hot，palette
Digital Zoom	2×
Video Storage	Built-in 16GB SD card
View Finder	OLED 1280×1024, visual acuity
Power Input	12V power adapter/ built-in Li-ion battery
Working Time	≥4h（without changing battery）
Electrical Interface	power、video PAL（NTSC can customizable）、communication RS232
Mechanical Interface	1/4 inch standard interface
Working Temperature	－40℃～60℃（Except for display equipment）
Encapsulation	IP67
Electromagnetic Compatibility	GJB151A-97
Weight	≤1.5kg（including battery）
Size	≤210mm×170mm×100mm
Standard	AL18650x4(rechargeable)battery,Charger,Power adapter,External connection cable,Safety box,User Manual
Optional	Tripod,Carryingbag
Detection Range	3Km

































































Mobile-friendly APP for

Remote Control and Steaming

It supports image quality adjustment, color palettes switching, smooth zoom, photography, video recording, hot spot tracking, and other operation settings to meet the needs of different users.



Multiple scene modes to highlight the target

Five scene modes of “Forest/Desert/Snow/City/Default” can be quickly switched by one button, and the image can be adaptively adjusted for different scenes to highlight the target in the background.

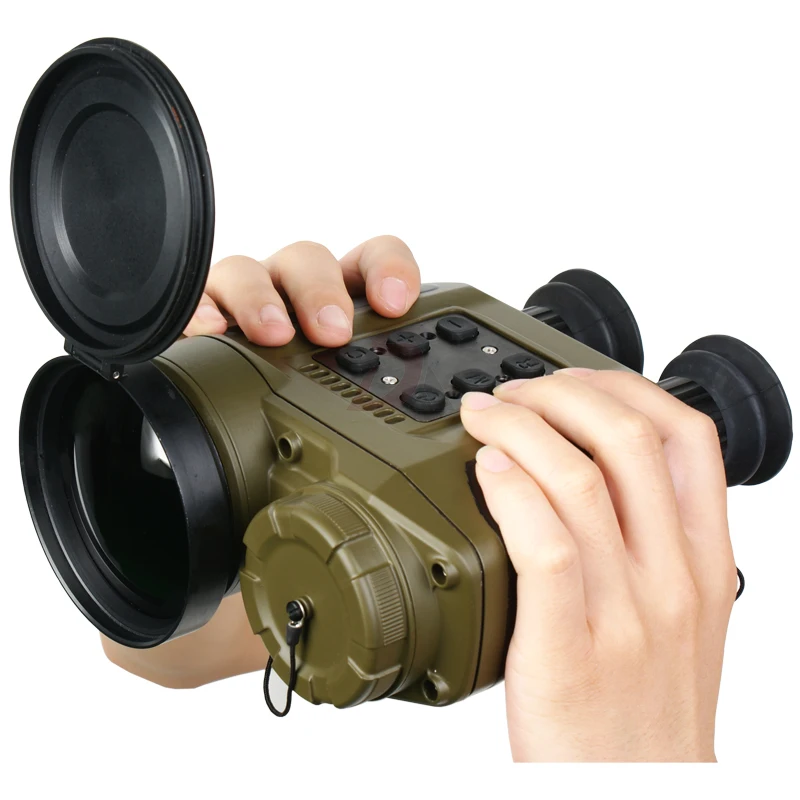

Excellent ergonomic design

With easy-distinguished button, the target button can be quickly recognized by touch even in the total darkness.



With modern streamlined appearance and ergonomic design, which allow you to observe the target for a long time without tired.



External connectable design

for more applications

Standard picatinny rail, support connect the external display, rangefinder and other accessories, which is suitable for camping security, night patrol, law enforcement, search and rescue, personal security and many other applications.
