Swans 2.8AHT flagship home theater 5.2 system surround home theater system low distortion big dynamic home theater



Parameters



HiVi Swan 2.8A



System type : 4 way 4 orders vented speaker system



Drivers Configuration: professional 8 inch bass *2+professional 6.5 inch mid-bass*8+equal magnetic field



tweeter*8



Frequency response : 35Hz-20kHz



Distortion : 55Hz-20kHz<=1% (2.83V/1m)



Sensitivity (2.83V/1m) : 88dB



Rated impedance : 4 ohms



Power range : 10W- 300W



Size : 450*545*1590mm



Weight : 83 kg

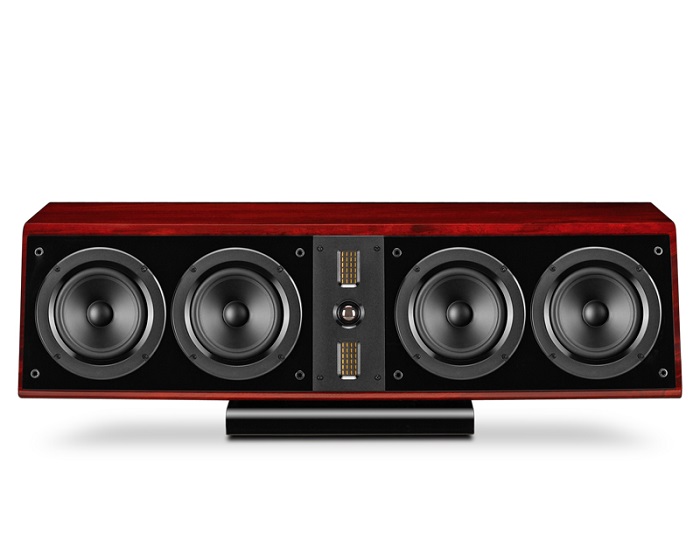

HiVi Swan 2.3C+



System type : 3 way 4 orders vented speaker system



Drivers Configuration: 6.5 inch bass *4+28mm dome tweeter+equal magnetic field tweeter*2



Frequency response : 35Hz-20kHz



Distortion : 40Hz-20kHz<=1% (2.83V/1m)



Sensitivity (2.83V/1m) : 99dB



Rated impedance : 8 ohms



Power range : 10W- 320W



Size : 1020*341*308mm



Weight : 33 kg



HiVi Swan F5R+



System type : Di-pole surround speaker



Drivers Configuration: professional 6.5 inch mid-bass *2+28mm dome tweeter*2



Frequency response : 55Hz-20kHz



Distortion : 53Hz-20kHz<=1% (2.83V/1m)



Sensitivity (2.83V/1m) : 87dB



Rated impedance : 8 ohms



Power range : 10W- 150W



Size : 505*290*236mm



Weight : 13 kg



HiVi Sub15B



System type : 1 way closed active super bass



Drivers Configuration: professional 15 inch super bass



Frequency response : 26Hz-120Hz(DIRECT) 26Hz-80Hz(INTERNAL X-OVER)



Rated power : 1000W



SNR: >100dB



Input sensitivity : 100mV



Input impedance : 22000 ohms



Size : 582*536*476mm



Weight : 34kg





This system include 3 pieces of front high performance speaker, 2 pieces of 15 big active super bass. You can choose two or more surround speaker to making 7.2/9.2/27.2.4 panoramic sound or DTS multi channel surround sound system.

HiVi 2.8A main speaker adopt linear sound source,16 pieces of loudspeaker consist of standard linear sound, improve the sound pressure input to make sure low distortion, big dynamic response.







8 pieces of equal magnetic field tweeter.







8 pieces of 50mm midrange unit.







1 piece of 6.5 inch midrange unit







2 pieces of 8 inch bass unit







Log pattern with luxurious piano paint decorated with the panel.
