Descriptions:
Meowbit is a card-sized graphical retro game computer with allows you coding with Makecode arcade and Python. In other words, it can use combines game programming with hardware devices.
Meowbit is a card-sized grahical programming video game console designed for teenagers. It contains 1.8′ full-color screen, 6 x programmable buttons ,1 x buzzer, built-in light sensor , temperatur sensor, SD card slot (For extenal stoage),multyplayer connector and edge connector. Espcially the edge connector could access most micro:bit expension boards. We recommend to use Robot:bit for Mewobit, it can help you create a robot quickly.
Parameters:
– MCU: STM32F401RET6, 32-bit ARM Cortex M4 core
– Operating voltage: 3.3V
– Supply voltage: USB(5V), Lithium battery pack(3.7~4.2V)
– Output current: 500mA(max)
– Dimensions: 52x76x12(mm)
– AVAILABLE: Windows 7 and above/macOS
Programming Mode:
Makecode Arcade graphical programming mode
● Arcade: https://arcade.makecode.com/
● micropython programming mode
Package Included:
1 x Meowbit -Codable Console

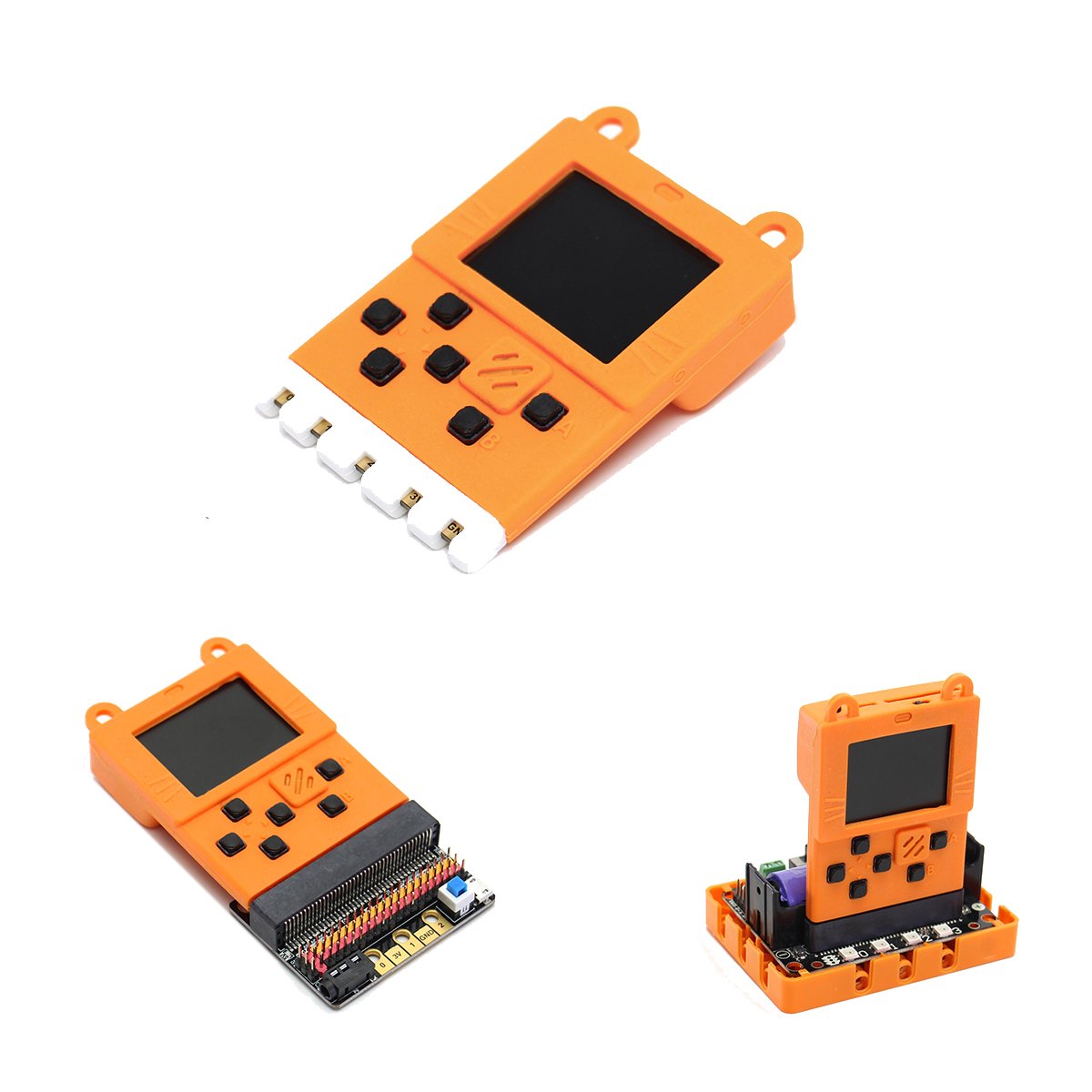

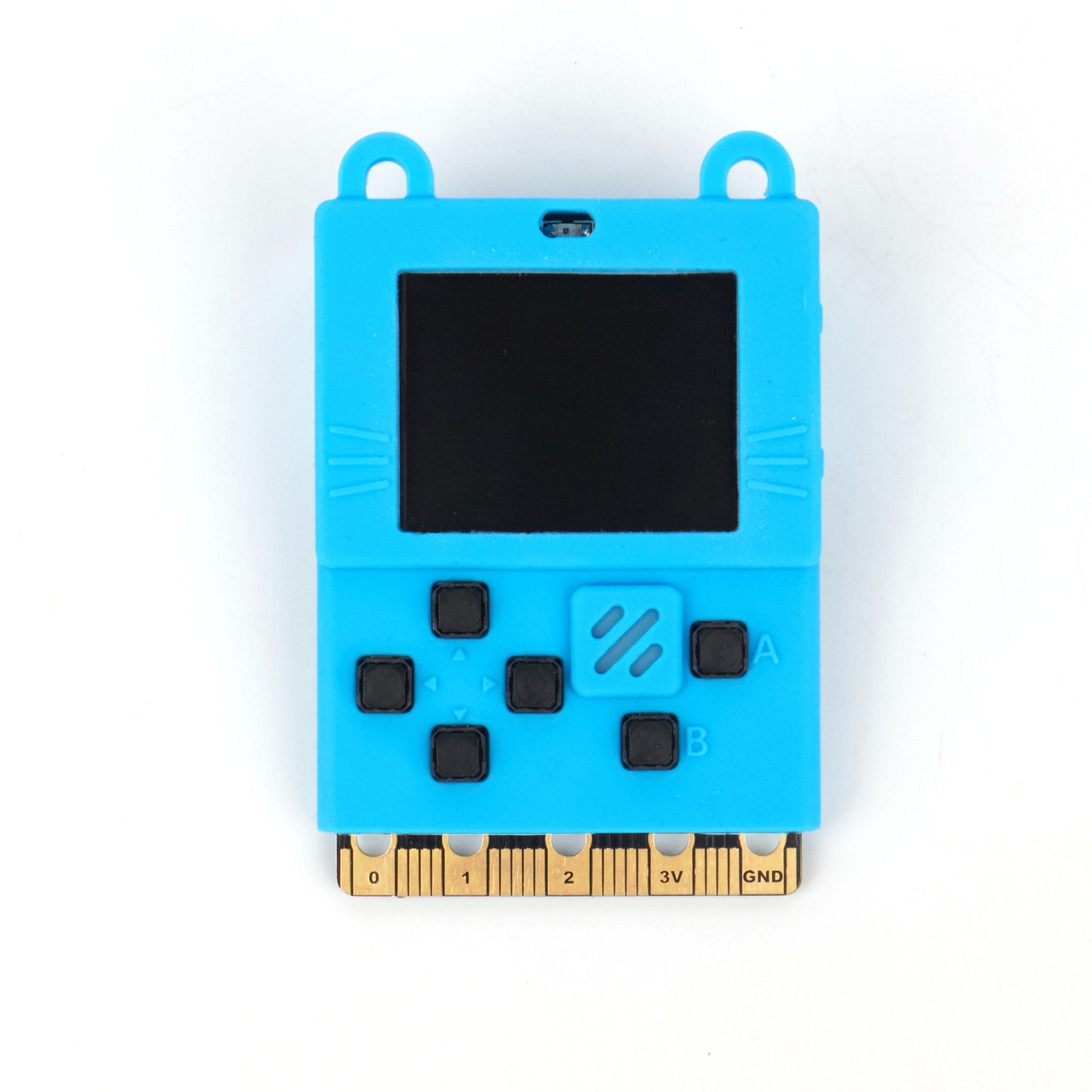

1 x protect case(color send randomly)

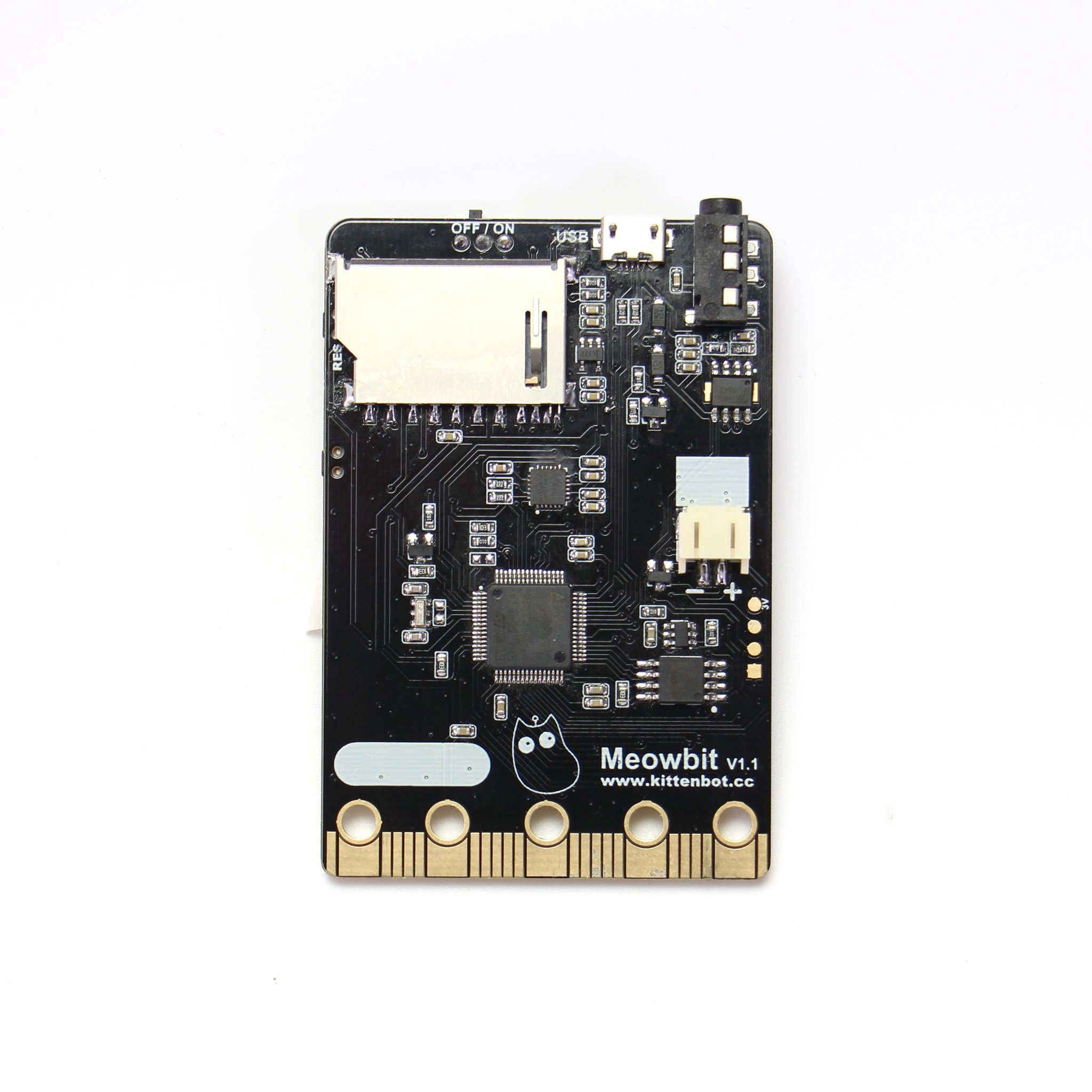

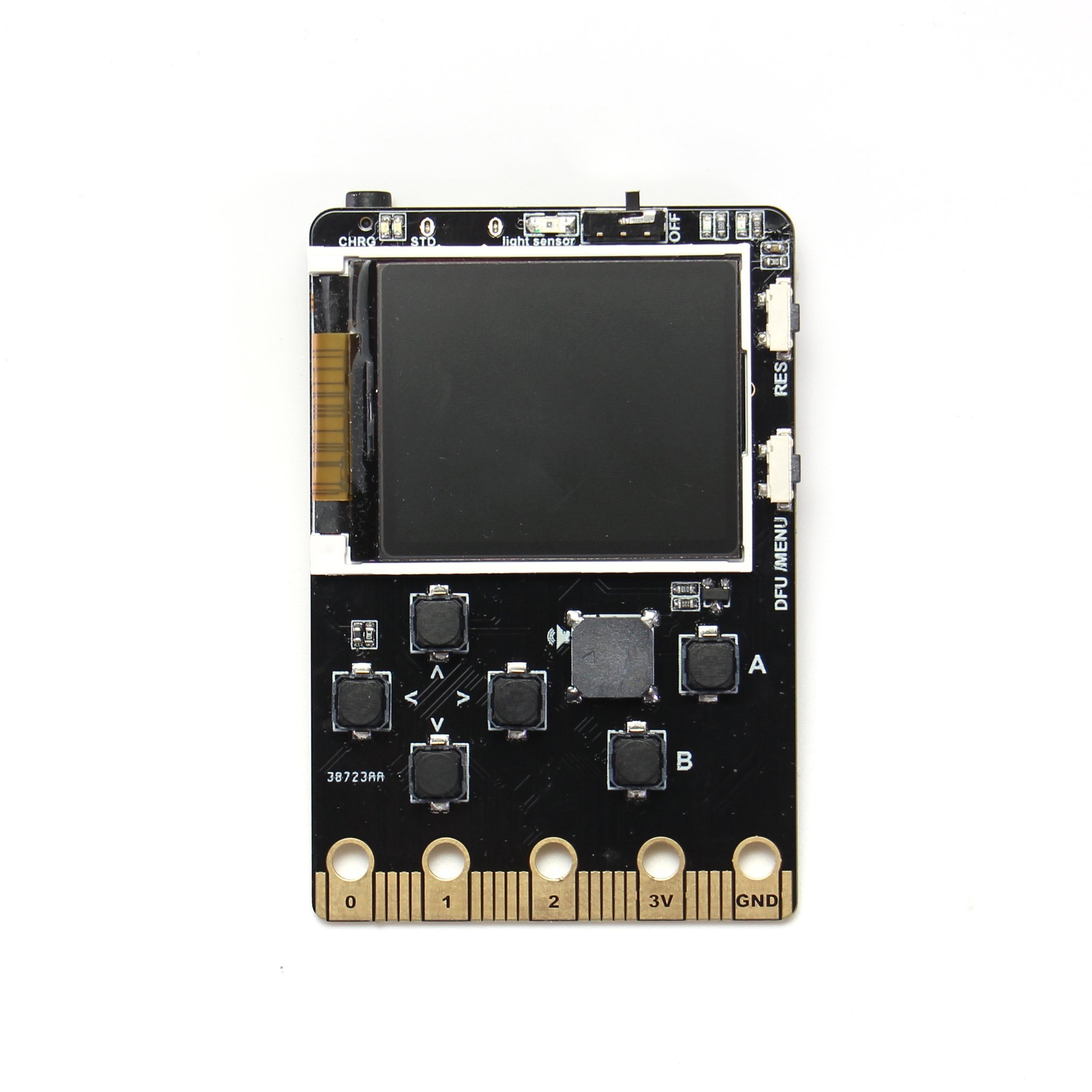

RESOURCES
1. Charging/work indicator
2. Light sensor
3. Power switch
4. Programmable led x 2
5. Reset
6. DFU mode button(use for toggle firmware or for Bring up the menu in Makecode Arcade mode)
7. 160 x 128 TFT color screen
8. Temperature sensor
9. Direction button x 4
10. Buzzer
11. Button A/B x 2
12. compatible with microbit’s 40 PINs Goldfinger
13. USB program download port / charging port
14. SD card slot(Use for store programs or extend wireless modules)
15. Multiplayer Connector
16. mp6050 gyroscope
17. 3.7V lithium battery package interface
18. MCU
19. 2MByte spi-flash (default download unicode character table)
20. Signature area
2. Light sensor
3. Power switch
4. Programmable led x 2
5. Reset
6. DFU mode button(use for toggle firmware or for Bring up the menu in Makecode Arcade mode)
7. 160 x 128 TFT color screen
8. Temperature sensor
9. Direction button x 4
10. Buzzer
11. Button A/B x 2
12. compatible with microbit’s 40 PINs Goldfinger
13. USB program download port / charging port
14. SD card slot(Use for store programs or extend wireless modules)
15. Multiplayer Connector
16. mp6050 gyroscope
17. 3.7V lithium battery package interface
18. MCU
19. 2MByte spi-flash (default download unicode character table)
20. Signature area
