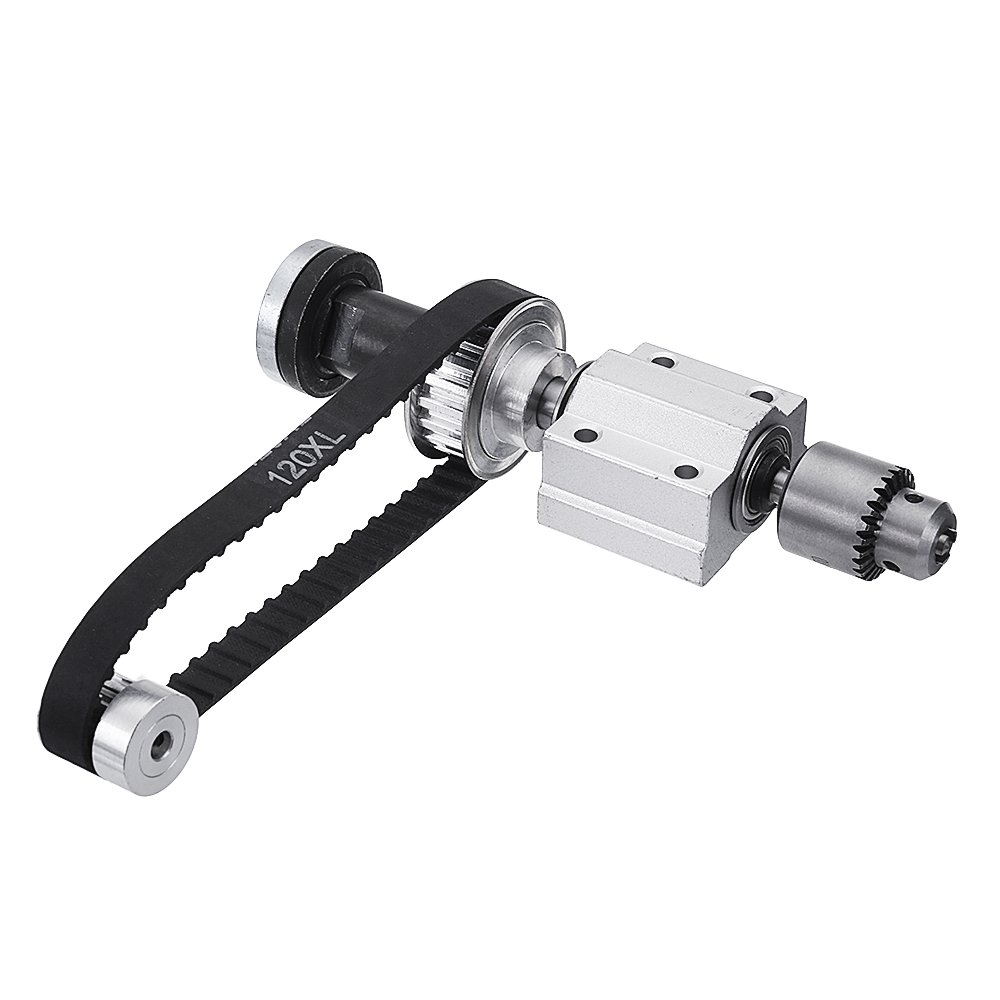

Machifit No Power Spindle Assembly Small Lathe Accessories Trimming Belt JTO/B10/B12/B16 Drill Chuck Set

$ 3.02$ 29.39

Clear
Estimated delivery between Jul 25, 2019 - Aug 1, 2019
Add to Wishlist
Add to Wishlist
Add to Wishlist
Add to Wishlist
SKU: 18487 Category: Tags: , , , , , , , , , , , , , , ,

Description:
No power DIY woodworking cutting grinding spindle small lathe accessories fit for table saw / bench drill / electric drill.

Specification:

Cutting ability Unpowered spindle
Cutting depth 10 (mm)
Saw blade size/diameter 90 * 10 (mm)
No load speed 10000 (RPM)
Scope of application Making small saw
Power type No power

Features:
– The shipper and the synchronous wheel are equipped with the gasket isolation of 1mm to lock tightly.
– The rotation is smooth and without phase grinding, and the accuracy is good.
– No power spindle, precision machining by grinding machine, precision of 0.005mm, that is, a high-precision spindle with less than one wire.
– DIY bench drill, bench mill, table saw and so on.
– Through the connecting rod, the shaft sleeve link is eliminated, and the drill clamp is installed directly, so the accuracy is higher.
– The non-powered spindle (Mohs drill chuck connecting rod) is precision machined with a grinding machine with an accuracy of 0.005MM. Can be used to make bench drills, bench mills, table saws, etc.

Installation tips:
1. Pay attention to the mounting direction of the bearing, and carefully look at the description diagram or video.
2. Do not damage the bearing blindly. Patience and carefulness are the key points of mechanical work.
3. Various methods: to activate the brain and complete the assembly.
4. The sliding block and the contact surface of the synchronous wheel shall be separated by gasket to prevent phase grinding.The gasket is small. Don’t lose it.

Package Included :
#1:
1 X XL10T 5mm hole synchronization wheel
1 X 120XL Timing belt
1 X Wrench

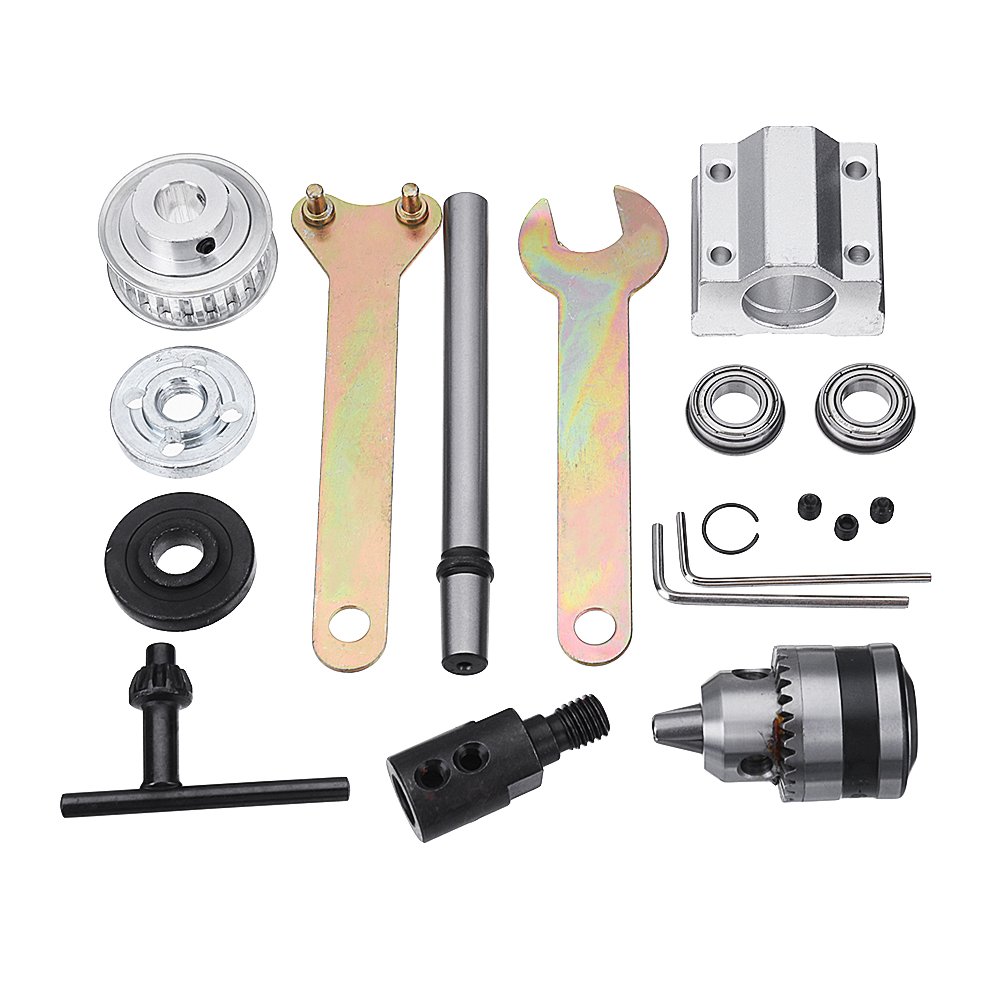

#2:
1 X Drill chuck connecting rod
1 X XL20T 10mm hole synchronization wheel
1 X 10mm hole slider (including 2 bearings)
1 X 0.6-6mm B10 Drill Chuck
1 X M10 Shaft sleeve
(including shaft socket wrench, synchronous wheel wrench, drill clamp key)

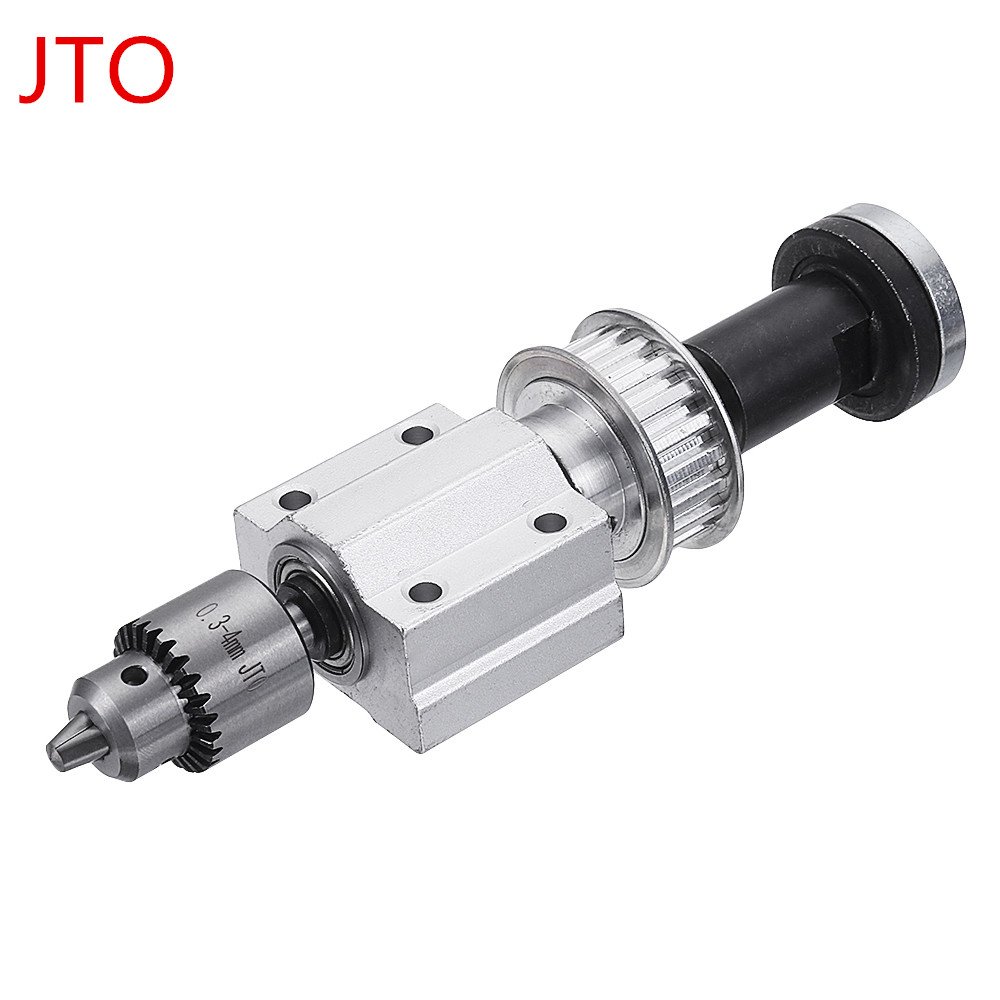

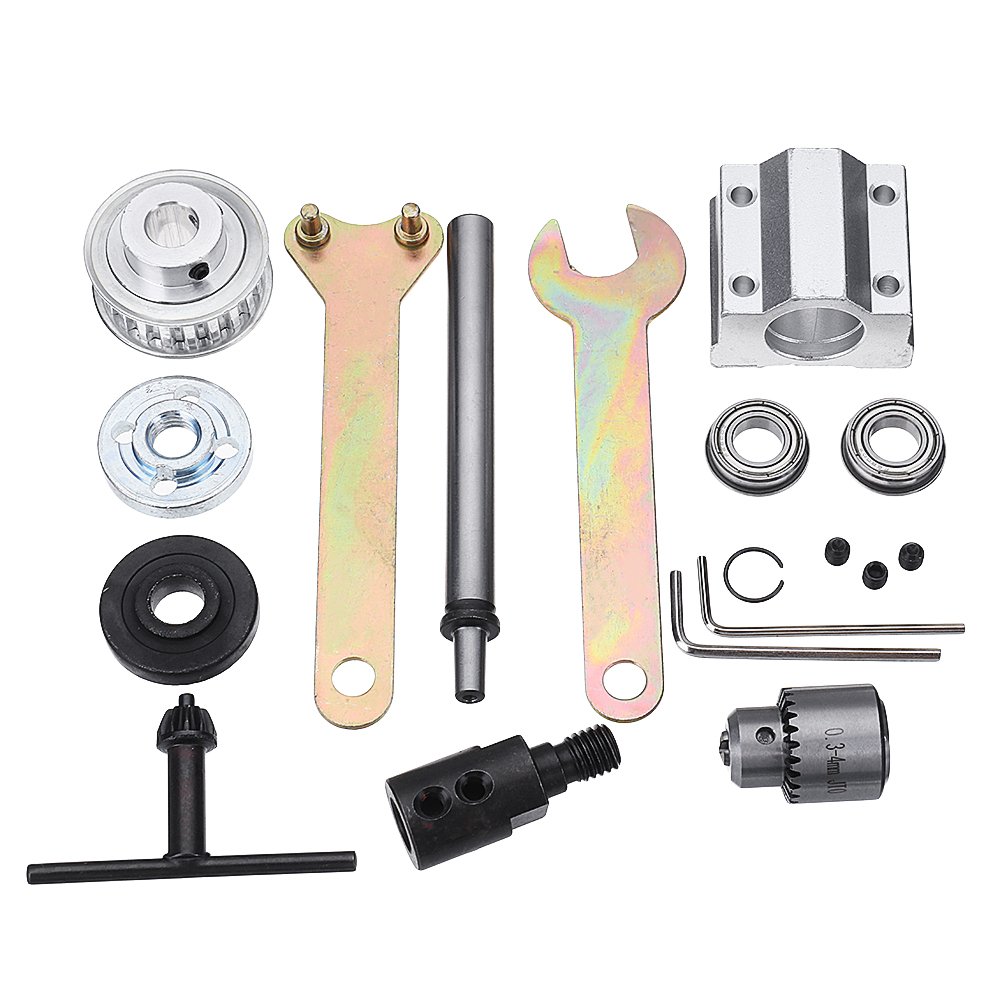

#3:
1 X Drill chuck connecting rod
1 X XL20T 10mm hole synchronization wheel
1 X 10mm hole slider (including 2 bearings)
1 X 0.3-4mm JTO Drill Chuck
1 X M10 Shaft sleeve
(including shaft socket wrench, synchronous wheel wrench, drill clamp key)

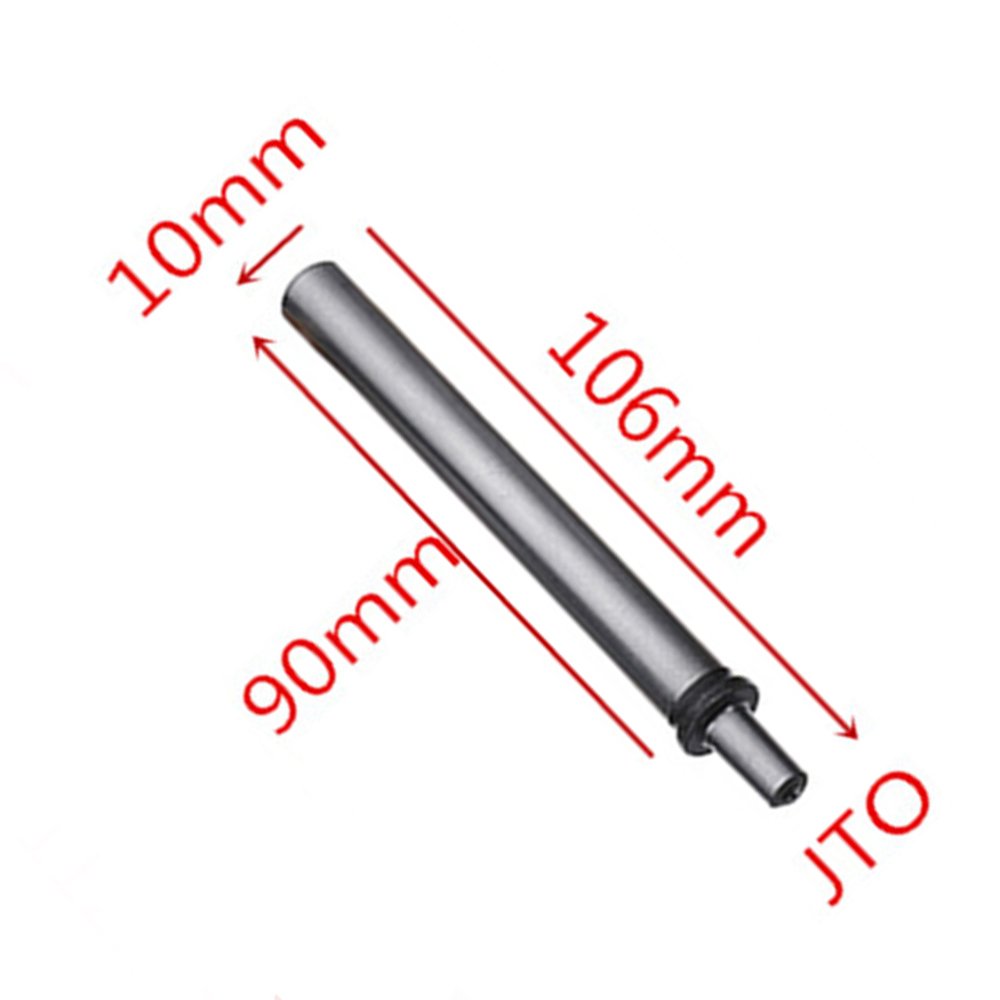

#4:
The JTO shank

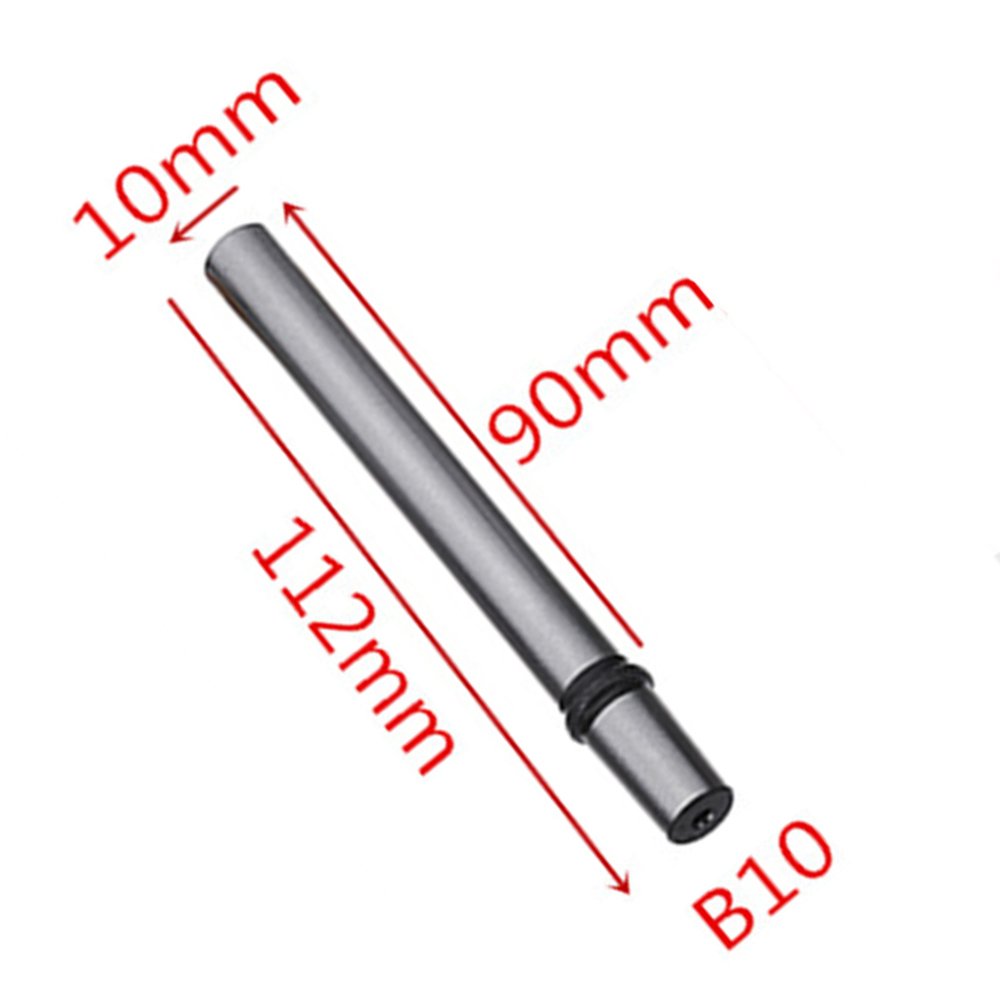

#5:
The B10 shank

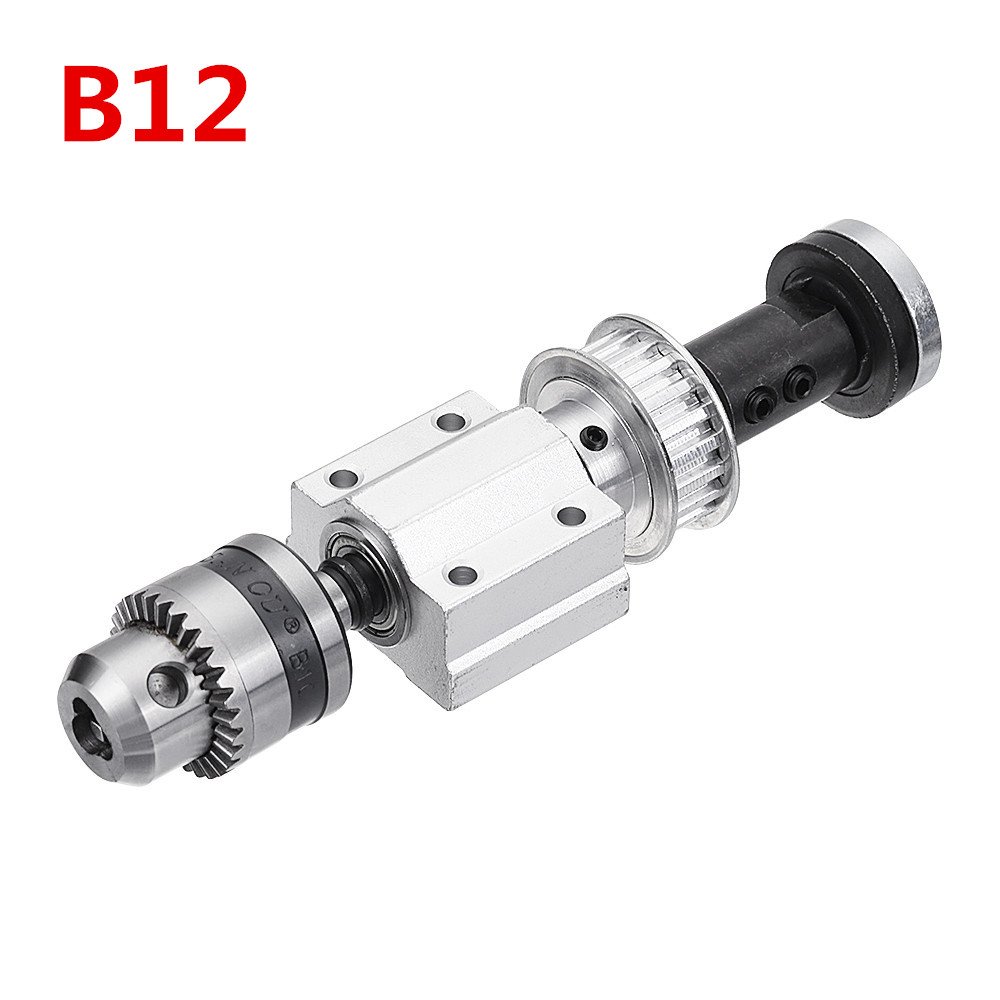

#6:
1 X Drill chuck connecting rod
1 X XL20T 10mm hole synchronization wheel
1 X 10mm hole slider (including 2 bearings)
1 X 1.5-10mm B12 Drill Chuck
1 X M10 Shaft sleeve
(including shaft socket wrench, synchronous wheel wrench, drill clamp key)

#7:
1 X Drill chuck connecting rod
1 X XL20T 10mm hole synchronization wheel
1 X 10mm hole slider (including 2 bearings)
1 X 1.5-13mm B16 Drill Chuck
1 X M10 Shaft sleeve
(including shaft socket wrench, synchronous wheel wrench, drill clamp key)

More Details:

Machifit No Power Spindle Assembly Small Lathe Accessories Trimming Belt JTO/B10/B12/B16 Drill Chuck Set 39

Machifit No Power Spindle Assembly Small Lathe Accessories Trimming Belt JTO/B10/B12/B16 Drill Chuck Set 40

Machifit No Power Spindle Assembly Small Lathe Accessories Trimming Belt JTO/B10/B12/B16 Drill Chuck Set 41

Machifit No Power Spindle Assembly Small Lathe Accessories Trimming Belt JTO/B10/B12/B16 Drill Chuck Set 42

Machifit No Power Spindle Assembly Small Lathe Accessories Trimming Belt JTO/B10/B12/B16 Drill Chuck Set 43

Machifit No Power Spindle Assembly Small Lathe Accessories Trimming Belt JTO/B10/B12/B16 Drill Chuck Set 44

Machifit No Power Spindle Assembly Small Lathe Accessories Trimming Belt JTO/B10/B12/B16 Drill Chuck Set 45

Machifit No Power Spindle Assembly Small Lathe Accessories Trimming Belt JTO/B10/B12/B16 Drill Chuck Set 46

Machifit No Power Spindle Assembly Small Lathe Accessories Trimming Belt JTO/B10/B12/B16 Drill Chuck Set 47

Machifit No Power Spindle Assembly Small Lathe Accessories Trimming Belt JTO/B10/B12/B16 Drill Chuck Set 48

Size

#1, #2, #3, #4, #5, #6, #7
