Description:

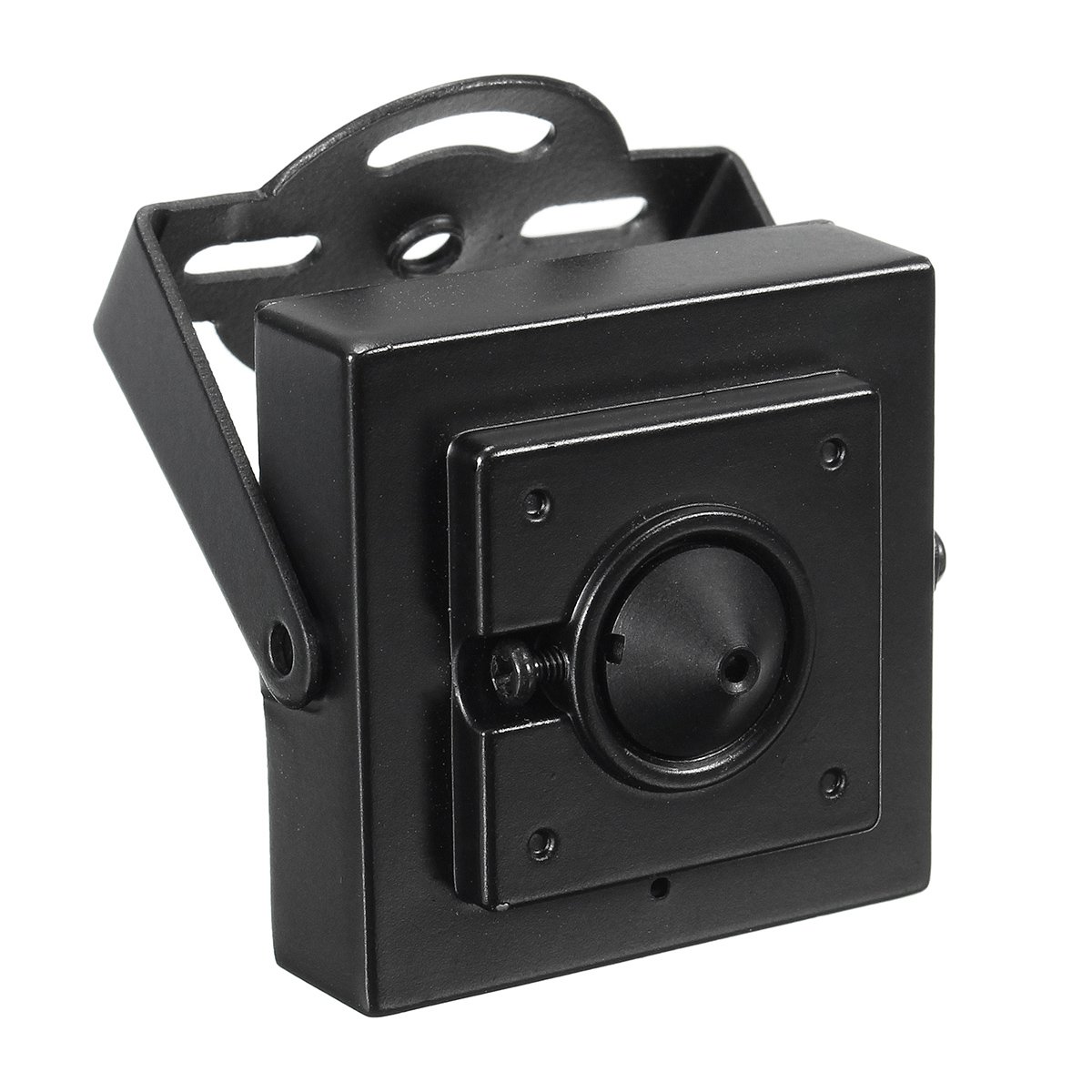

Mini Pinhole HD 700TVL 1/3″ 3.7mm Wide Angle Board Lens CCTV Security PAL Camera
This item could used in any space like a hidden camera, it is included “DIY” cable because some time the space is too small for BNC
Features:
1.1/3 Inch CMOS HD Sensor.
2.700 TVL High Resolution.
3.Mini Illumination 0.01lux.
4.3.7mm Pinhole Lens 80 Degree.
5.Mini small size, Easy to use, Easy to Install.
Specification:
1.Image Sensor:
1/3″ CMOS Sensor
1/3″ CMOS Sensor
2.Horizontal Resolution:
700TV LINES
700TV LINES
3.TV System:
PAL
PAL
4.Pixels: PAL: 752Hx582V
5.Lens:
3.6mm Pinhole
3.6mm Pinhole
6.Sync System: Internal
7.Usable Illumination: 0.01 Lux
8.S/N Ratio: More than 54dB (AGC OFF)
9.Gamma Correction: 0.45
10.Video Out: Composite Signal (1.0Vp-p, 75w)
11.Scanning System: PAL:625 Lines, 50 Field/Sec
12.Electronic Shutter Time: 1/50-1/100,000Sec
13.Operating Temperature: -10 degree~ +50 degree RH95% Max
14.Storage Temperature: 20 degree~ +60 degree RH95% Max
15.White Balance: Auto
16.Dimension(mm):36(L) x 36(W)mm
17.Power Supply:
DC 12 V
DC 12 V
18.Name:Mini camera
19.Model: 700TVL

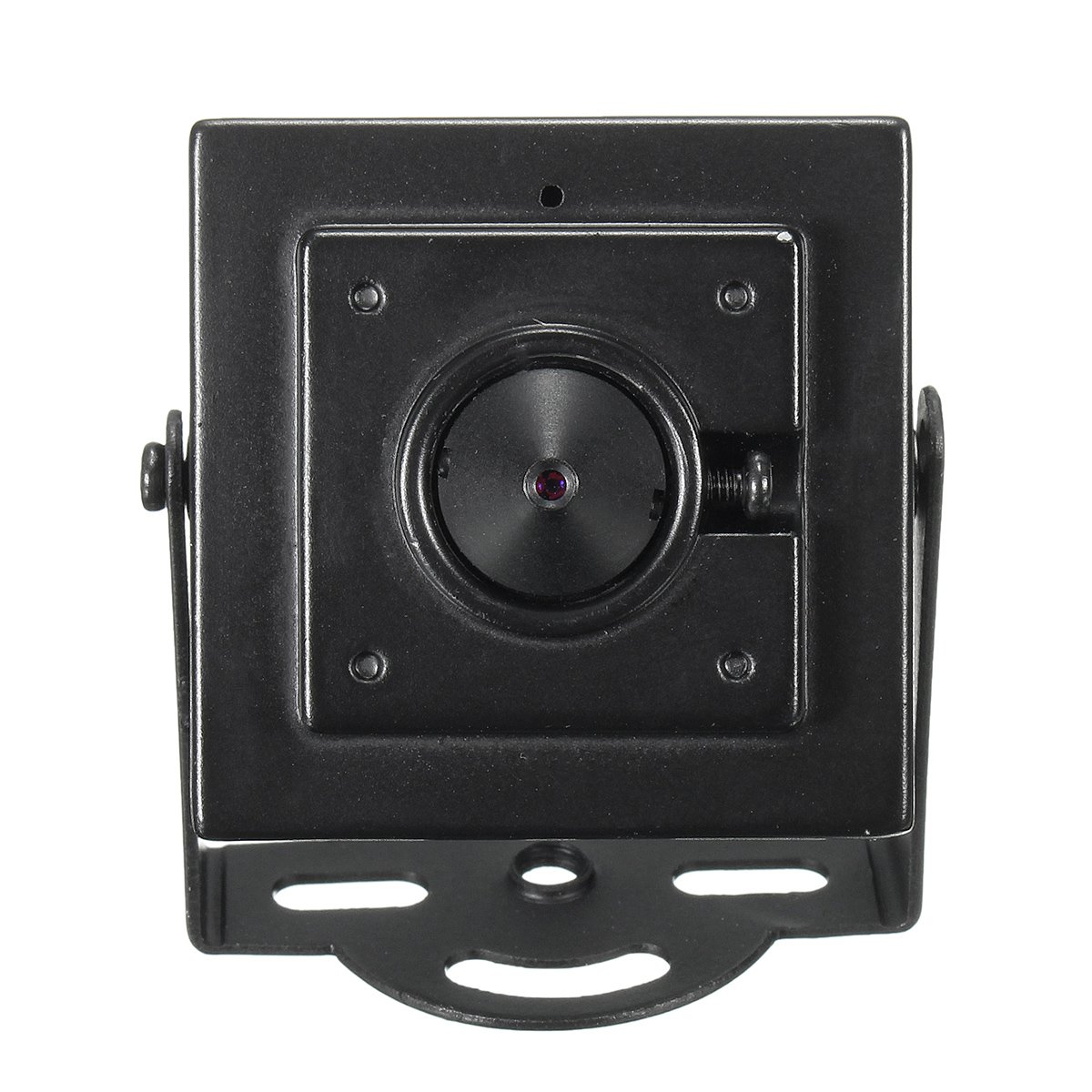

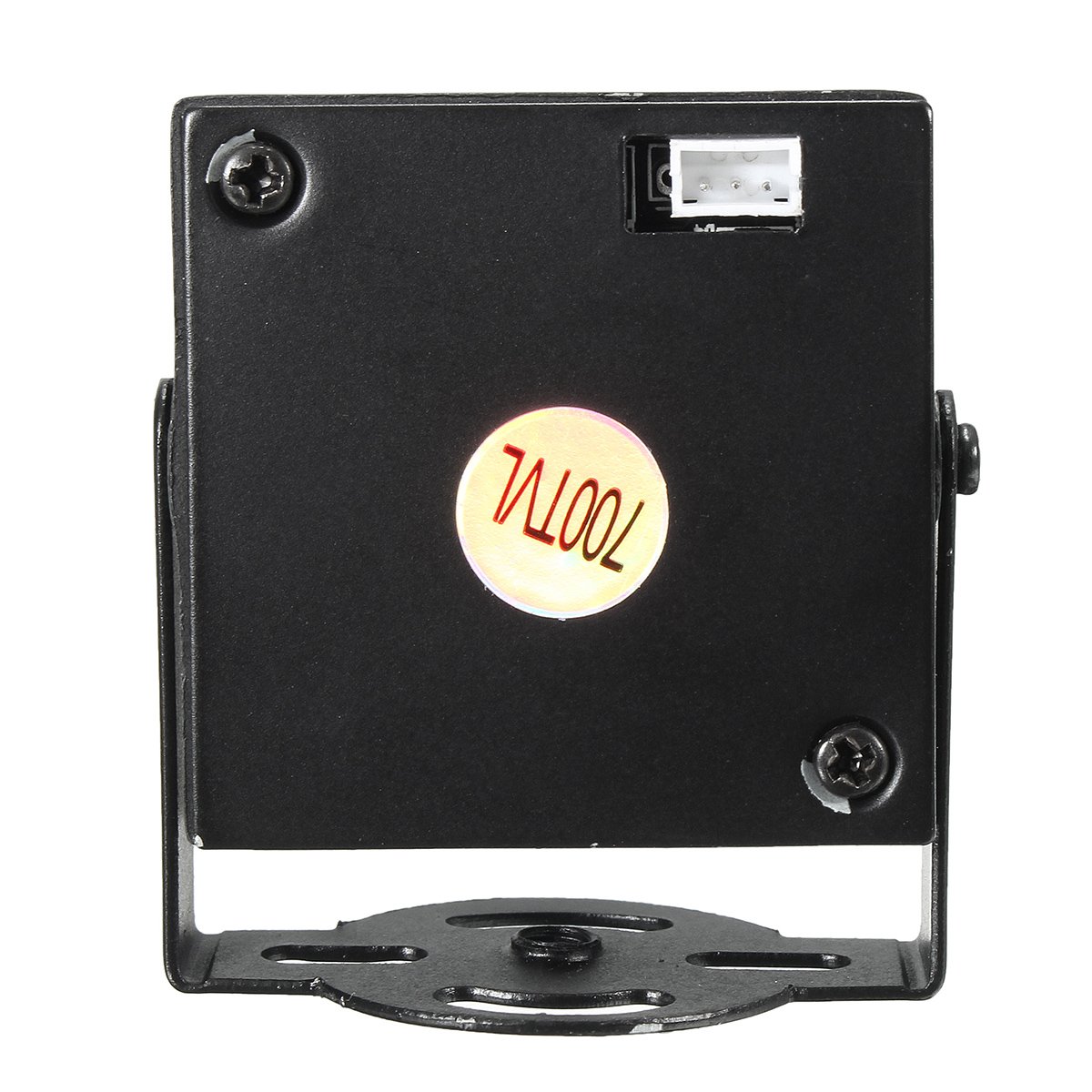

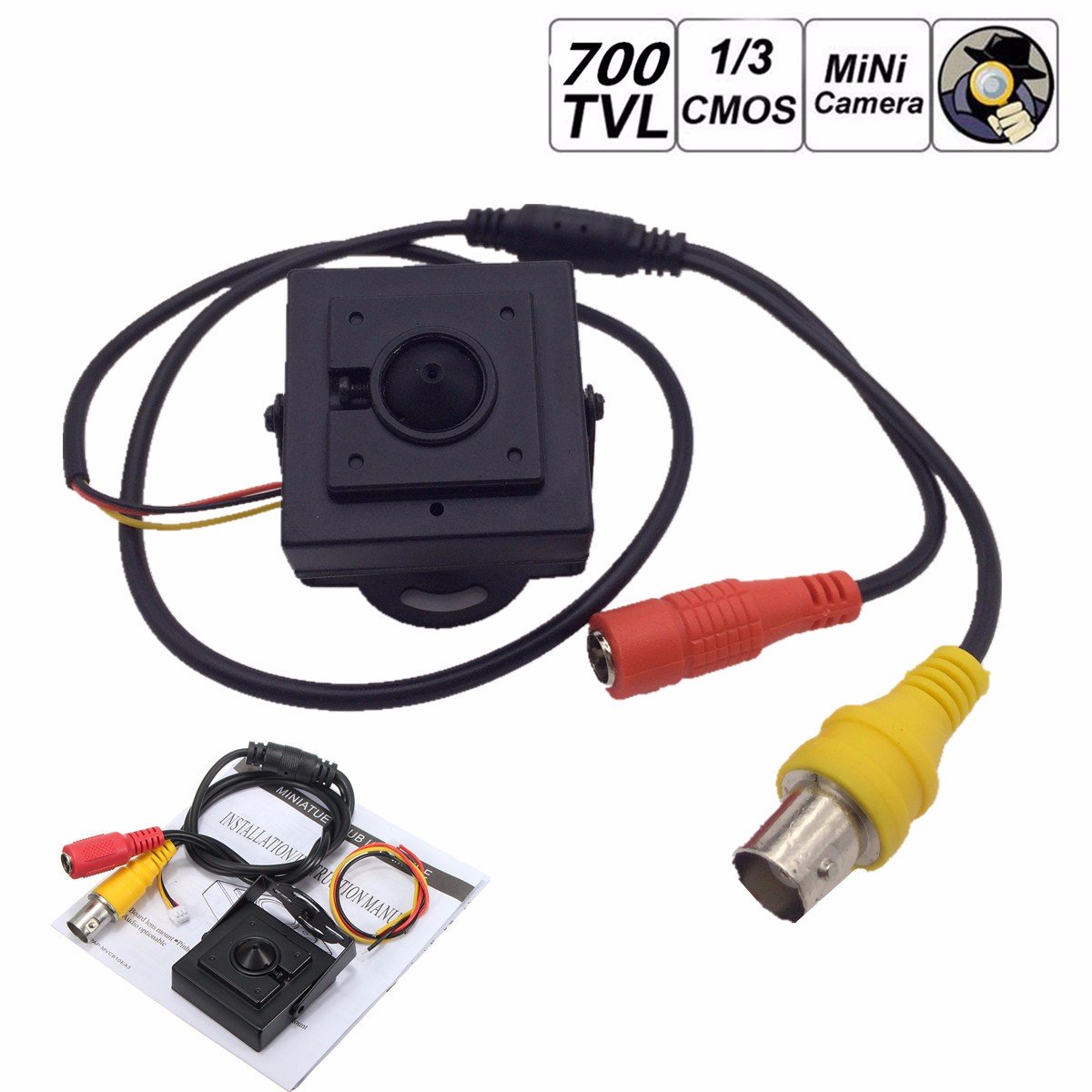

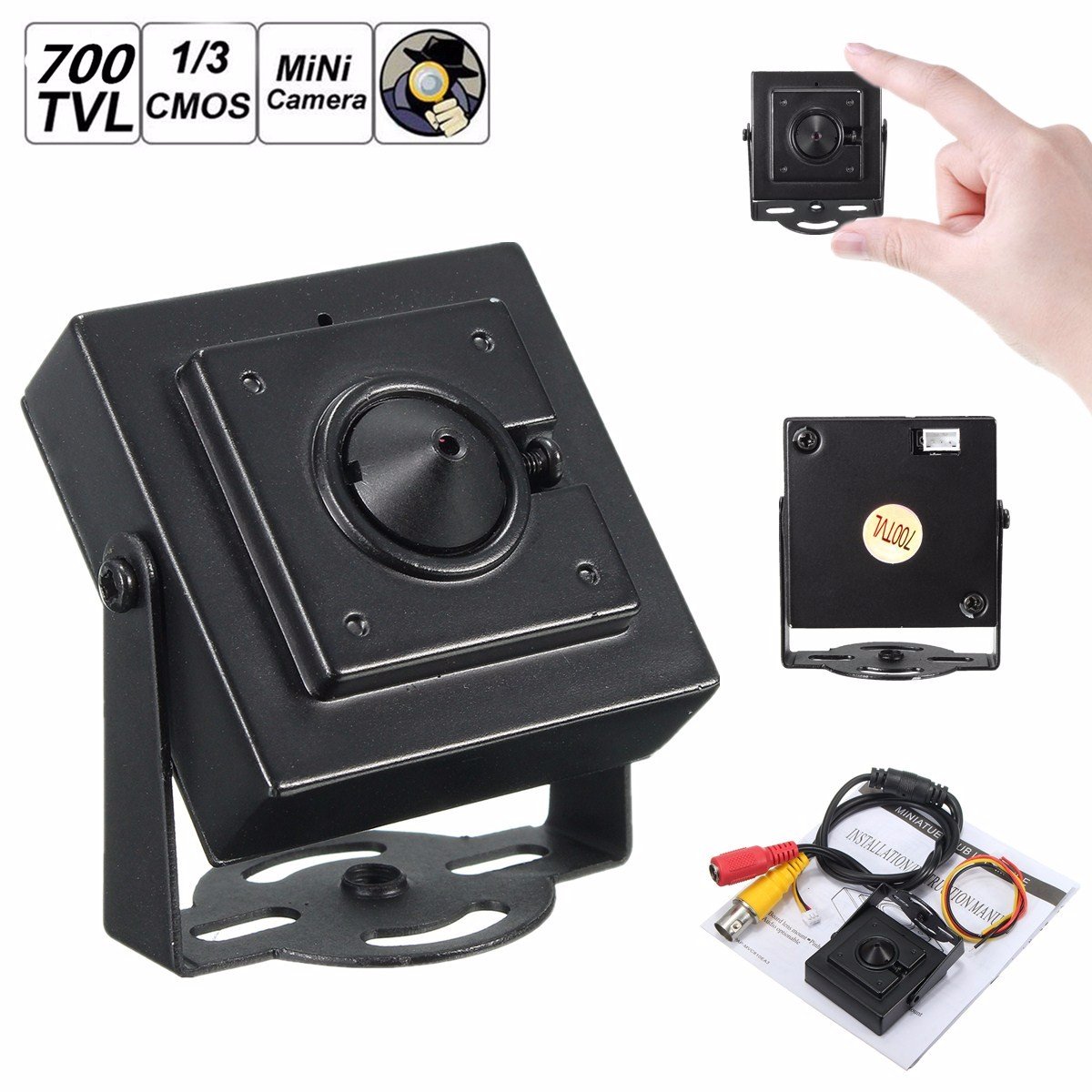

Details pictures:

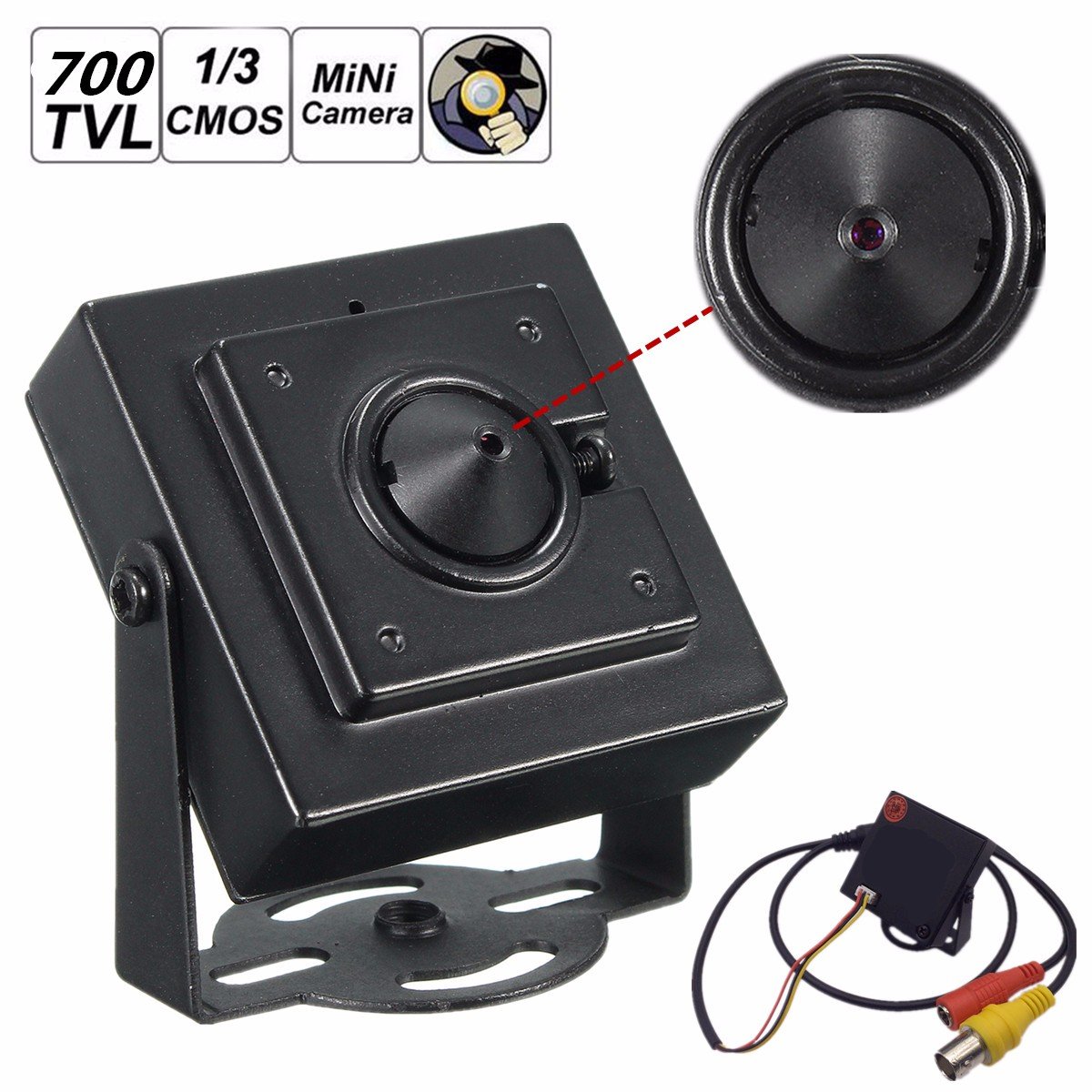

![Mini Pinhole HD 700TVL 1/3" 3.7mm Wide Angle Board Lens CCTV Security PAL Camera 1 Mini Pinhole HD 700TVL 1/3" 3.7mm Wide Angle Board Lens CCTV Security PAL Camera 13](http://img.banggood.com/images/oaupload/banggood/images/8C/3A/3b9e9277-0623-464e-88f8-eec593fb918a.jpg)
![Mini Pinhole HD 700TVL 1/3" 3.7mm Wide Angle Board Lens CCTV Security PAL Camera 2 Mini Pinhole HD 700TVL 1/3" 3.7mm Wide Angle Board Lens CCTV Security PAL Camera 14](http://img.banggood.com/images/oaupload/banggood/images/8C/3A/70f50110-67d7-48ac-9ec8-56cca4af4825.jpg)
![Mini Pinhole HD 700TVL 1/3" 3.7mm Wide Angle Board Lens CCTV Security PAL Camera 3 Mini Pinhole HD 700TVL 1/3" 3.7mm Wide Angle Board Lens CCTV Security PAL Camera 15](http://img.banggood.com/images/oaupload/banggood/images/8C/3A/b3487dc0-d79e-4873-a5f7-f92646ae9cf1.jpg)

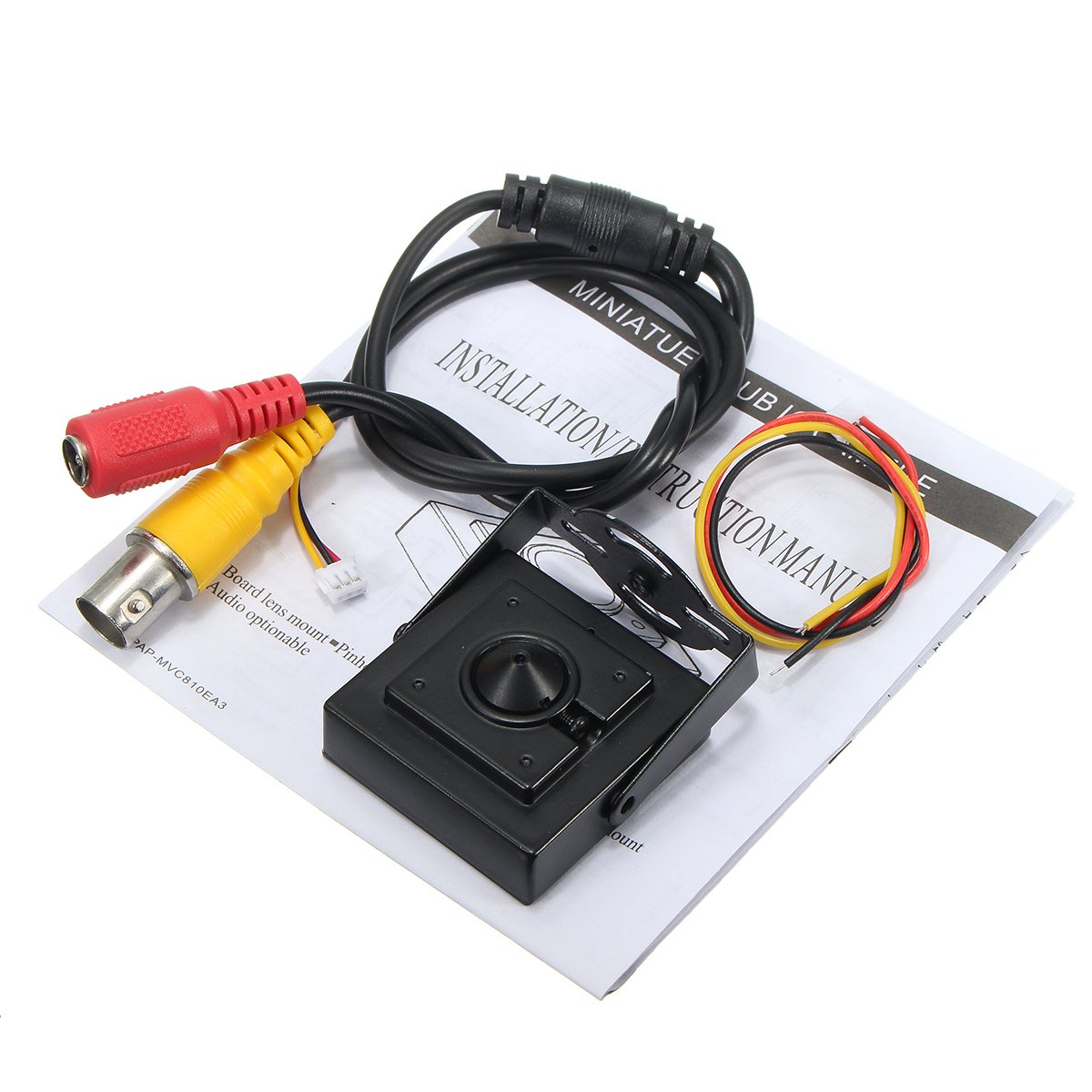

Package Included:
1 x CMOS 700TVL 3.7mm Pinhole lens Camera(power adapter is not included)

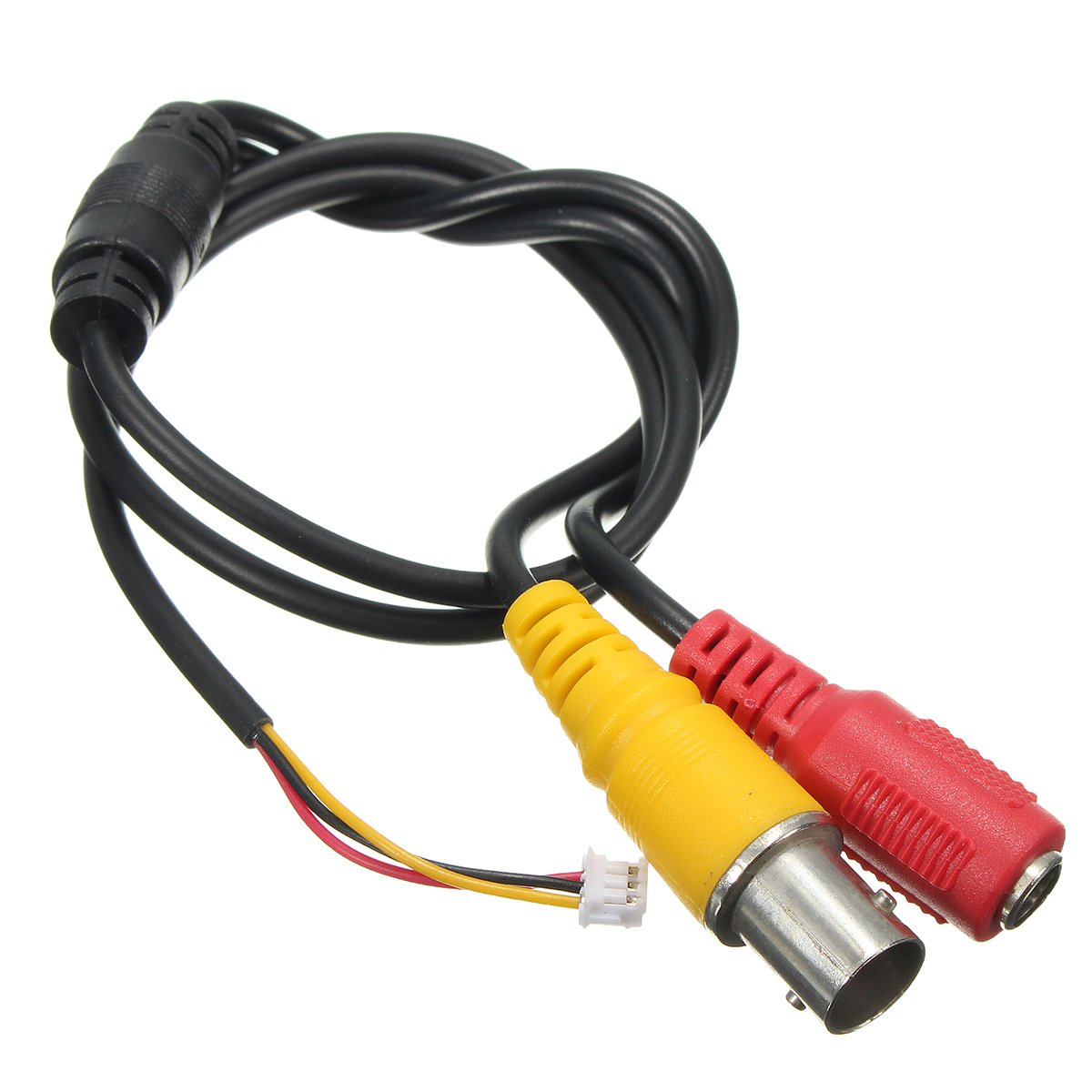

2 x cable
Details pictures:
![Mini Pinhole HD 700TVL 1/3" 3.7mm Wide Angle Board Lens CCTV Security PAL Camera 4 Mini Pinhole HD 700TVL 1/3" 3.7mm Wide Angle Board Lens CCTV Security PAL Camera 16](http://img.banggood.com/images/oaupload/banggood/images/8C/3A/d2fc8258-427f-4cb4-ab31-1e272616049d.jpg)
![Mini Pinhole HD 700TVL 1/3" 3.7mm Wide Angle Board Lens CCTV Security PAL Camera 1 Mini Pinhole HD 700TVL 1/3" 3.7mm Wide Angle Board Lens CCTV Security PAL Camera 13](http://img.banggood.com/images/oaupload/banggood/images/8C/3A/3b9e9277-0623-464e-88f8-eec593fb918a.jpg)
