Description

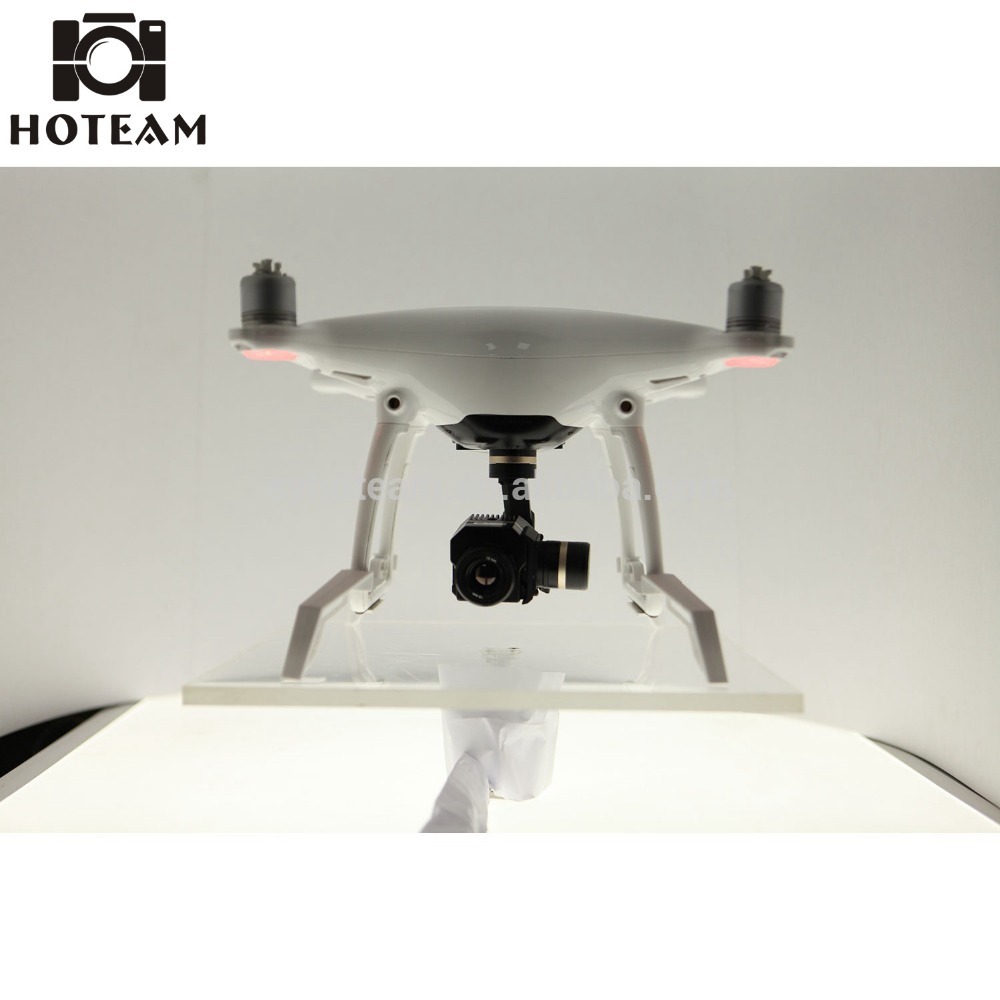

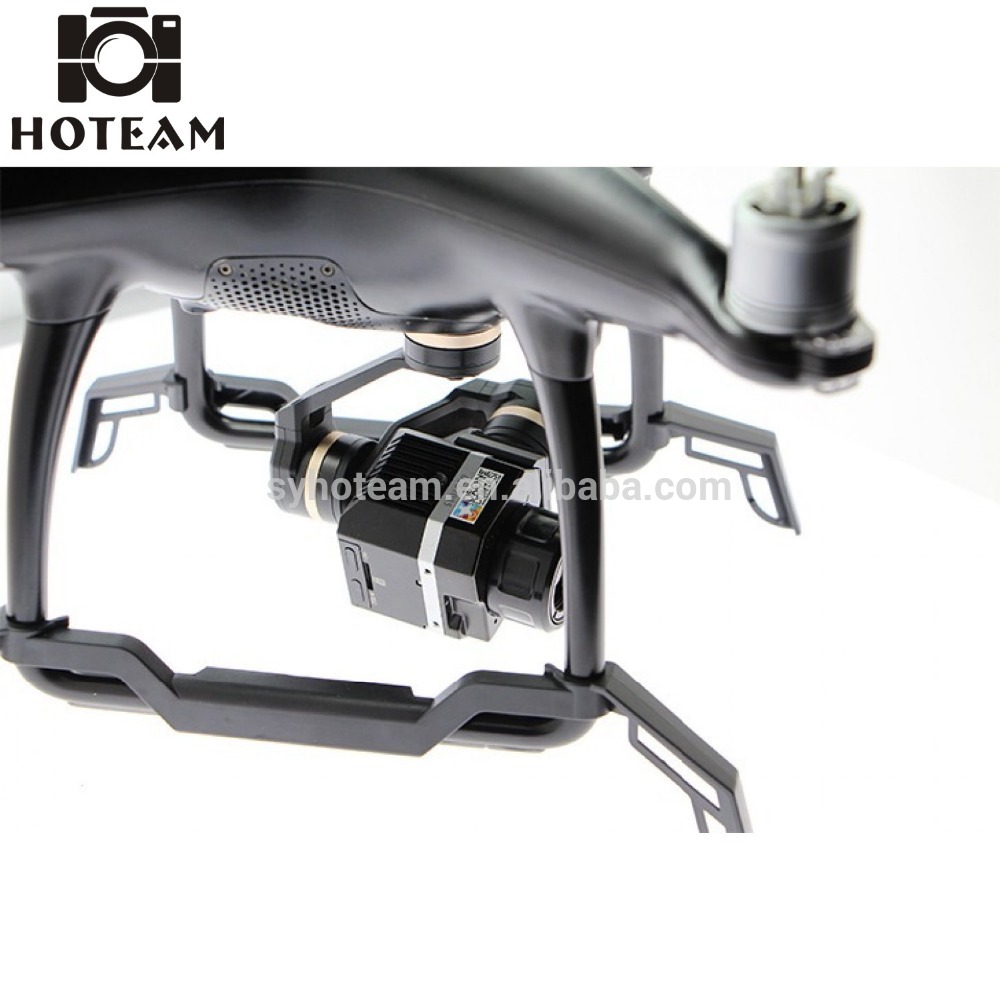

Professional Thermal Camera Drone for Aerial Photography Mapping



              Box contents: Dji drone X1

                                      Thermal camera flir Brands X1

                                      Drone world soft ware X1



              Area of use: Military security police

                                    Search and rescue

                                    Earthquake disaster

                                    Private security

                                    Natural disaster

                                    Private area project



1. Phantom 4 pro modernized thermal camera
2. Phantom 4 pro drone, produced by Drone World with thermal camera
3. Phantom 4 pro is modernized and thermal camera integrated
4. The software on it is also developed by Drone World
5. Phantom 4 Pro Thermal Camera Features A lightweight product is just as easy to move as it is on the Phantom
6.  Phantom 4 is so much more economical than its competitors, thanks to 27 minutes of flight time
7. the English menu And others
8. the military coordinate system MHRS integrated
9. Single controller operation, 30Hz resolution
10.  Phantom 4 pro features a light thermal camera, Affordable thermal drone, Spare part problem has been removed
11. The battery can be found on the market easily
12. Custom production can change according to your demand and requests



     Products we currently know to install thermal drone. ( can be use all drones is below list )

• Phantom 4 Pro termal Drone
• Phantom 4 Advanced termal Drone
• Phantom 4 Pro Plus  termal Drone
• Phantom 4 termal Drone
• Phantom 4 Pro thermal Drone
• Phantom 4 Advanced thermal Drone
• Phantom 4 Pro Plus thermal Drone
• Phantom 4 thermal Drone



Phantom 4 Pro Thermal Camera Features

 1. A lightweight product is just as easy to move as it is at phantom 4 weight

2. In Phantom 4’s 27th anniversary

3. Much more economical than riffles

4. English menu

5. Military coordinate system MHRS integrated

6. Use with one control

7. 30Hz resolution

8. Phantom 4 is a light thermal camera with pre-features

9. Affordable thermal drone

10. The spare parts problem has been removed

11. You can easily find the battery on the market

12. To be able to make special production,to change according to your demand and requests



Thermal Camera Technical Specifications(FLIR VUE PRO)



Overview	Vue Pro R 640	Vue Pro R 336
Thermal Imager	Uncooled VOx Microbolometer
Resolution	640 × 512	336 × 256
Lens Options (FOV for Full-Sensor Digital Output)	9 mm; 69° × 56° 13 mm; 45° × 37° 19 mm; 32° × 26°	6.8 mm; 45° × 35° 9 mm; 35° × 27° 13 mm; 25° × 19°
Lens Options* (FOV for NTSC Analog Output)	9 mm; 62° × 49° 13 mm; 45° × 35° 19 mm; 32° × 24°	6.8 mm; 44° × 33° 9 mm; 34° × 26° 13 mm; 24° × 18°
Spectral Band	7.5 – 13.5 μm
Full Frame Rates	30 Hz (NTSC); 25 Hz (PAL)
Exportable Frame Rates	7.5 Hz (NTSC); 8.3 Hz (PAL)
Measurement Accuracy	+/-5°C or 5% of reading in -25°C to +135°C range  +/-20°C or 20% of reading in -40°C to +550°C range
Physical Attributes
Size	2.48″ × 1.75″ x 1.75″ (including lens)
Precision Mounting Holes	Two M2x0.4 on each of two sides & bottom One 1/4-20 threaded hole on top



Image Processing & Display Controls
Image Optimization for sUAS	Yes
Scene Presets & Image Processing?	Yes – Adjustable in App
Invertable Image?	Yes – Adjustable in App
Color Palettes	Yes – Adjustable in App and via PWM
Zoom	Yes – Adjustable in App and via PWM
Interfacing
Input Voltage	4.8 – 6.0 VDC
Power Dissipation (peak)	2.1 W (3.9 W)
Environmental
Radiometric Temperature Range	0°C to +40°C
Operating Temperature Range	-20°C to +50°C
Non-Operating Temperature Range	-55°C to +95°C
Operational Altitude	+40,000 feet
Power & HDMI Video Module (Optional Accessory) **
Input Power Range	5 VDC – 28 VDC
Reverse Polarity Protection?	Yes
Analog Video Output?	Yes
HDMI Output	1280 × 720 @ 50hz, 60hz
