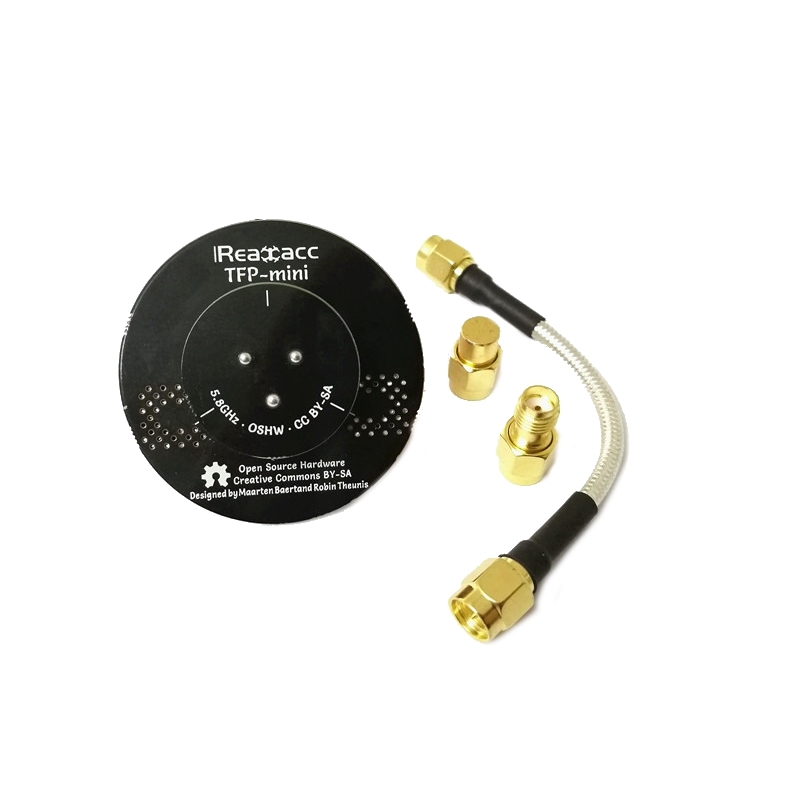

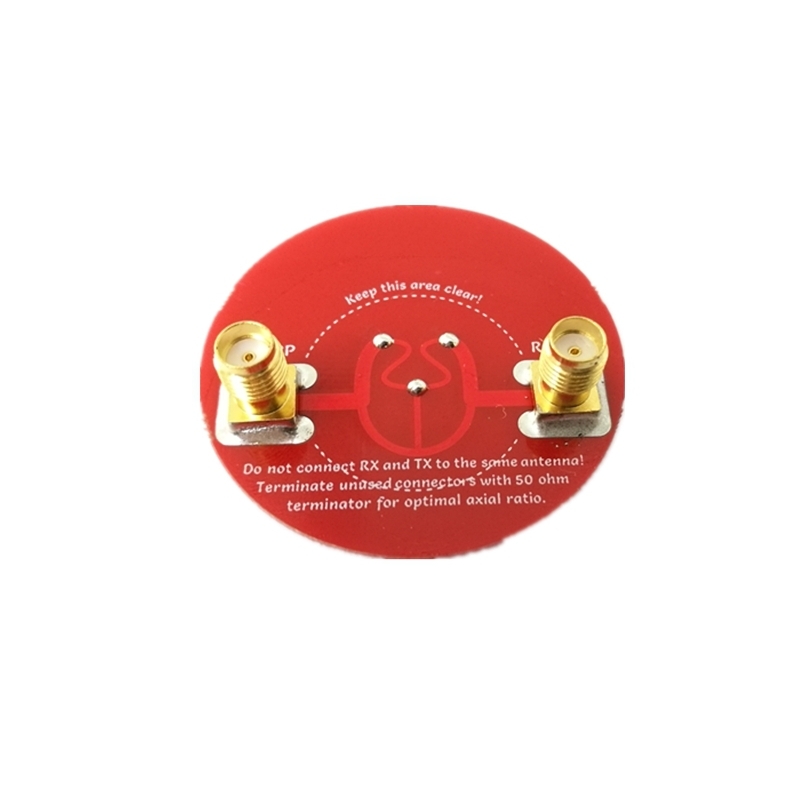

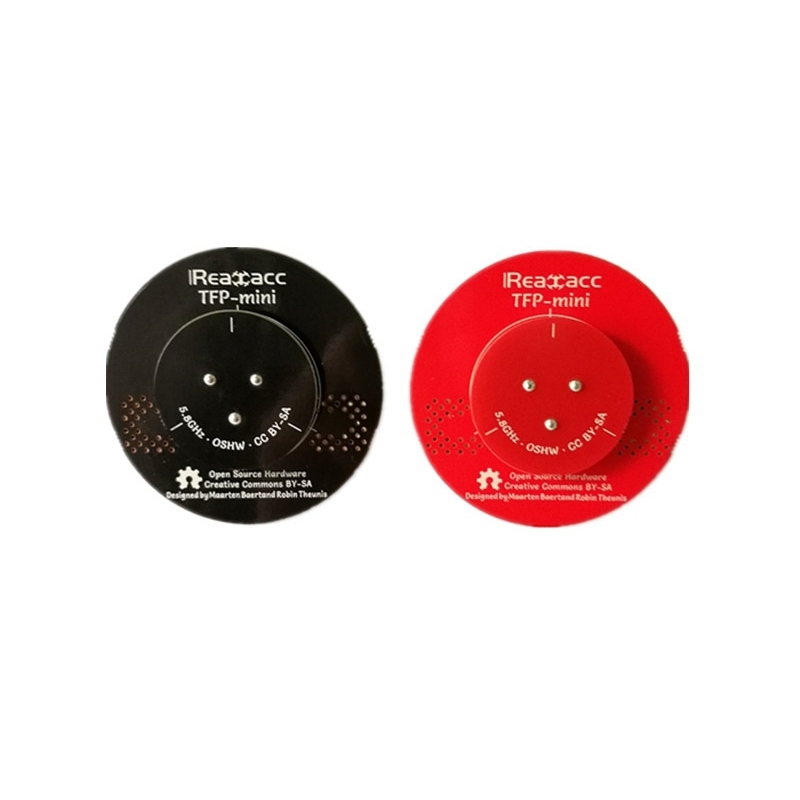

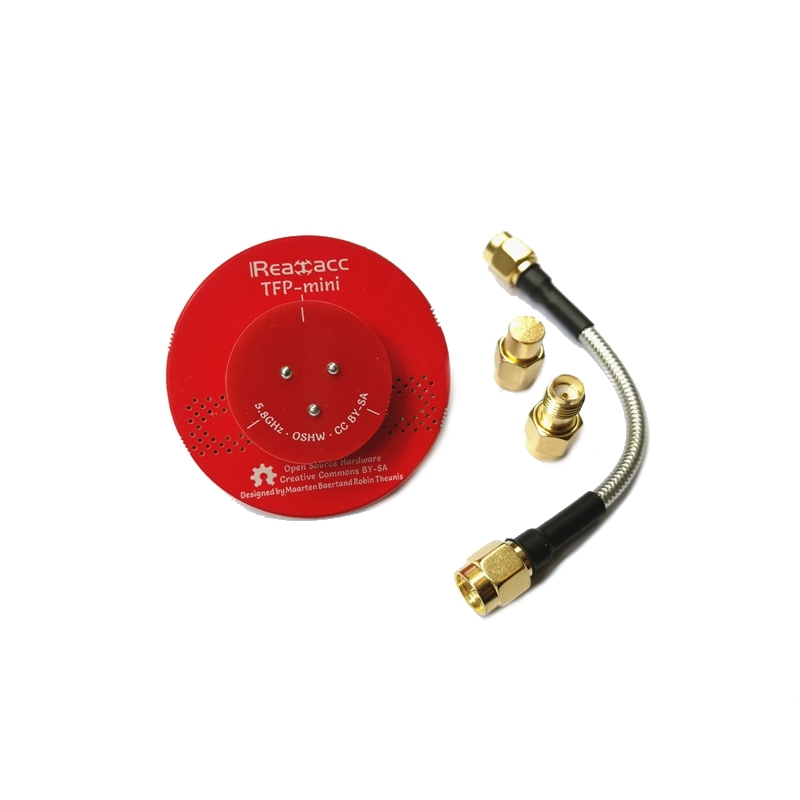

Realacc TFP-Mini Triple Feed Patch Dia. 45mm 5.8G 8dBi FPV Flat Panel Pagoda Antenna With Terminator for Eachine Fatshark Skyzone Goggles

or 6 weekly interest-free payments from $4.07 with Laybuy

$24.45 AUD

Estimated delivery between 2024/04/23 - 2024/04/30
Add to Wishlist
Add to Wishlist
SKU: C122-1278604 Category:

Description

Realacc TFP-Mini Triple Feed Patch Dia. 45mm 5.8G 8dBi FPV Flat Panel Pagoda Antenna

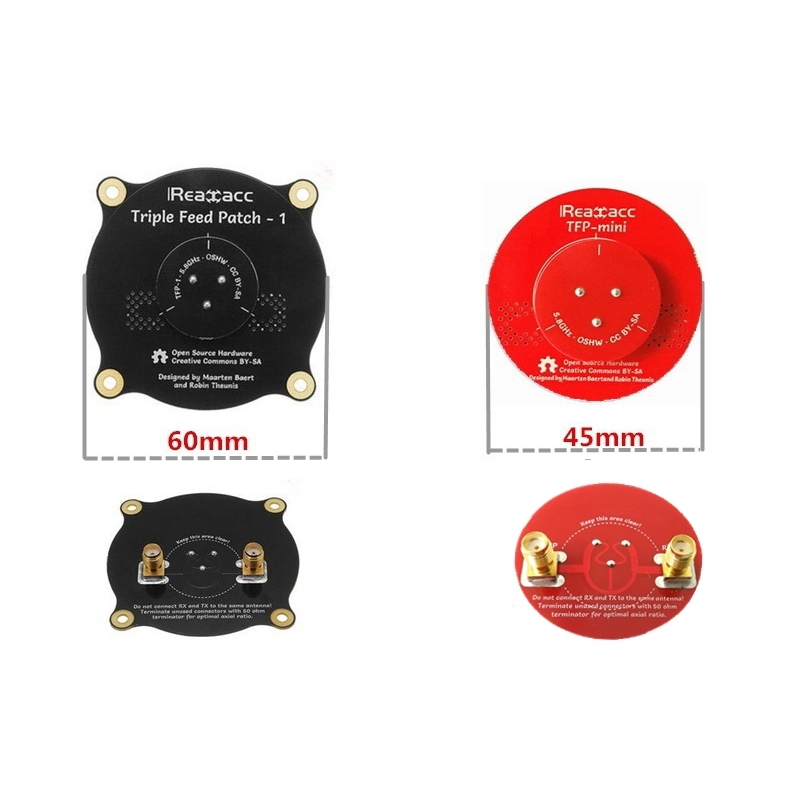

Compared with TFP-1

Description
Brand Name : Realacc
Center frequency: 5.8 GHz
Bandwidth: 660 MHz (5.47 – 6.13 GHz)
Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency)
Axial ratio: < 1.3
Antenna gain: 8 dBi
Half power beam width: 65° (horizontal and vertical)
Radiation efficiency: 90%
Dia.: 45mm

Package Included
1 x Antenna Plate
1 x SMA Antenna Extension Cable
1 x SMA Female to RP-SMA Male Adpater1 x SMA Male Terminal Connector

,,,,,,

Additional information

Weight 0.04 kg
MPN

1278604

COLOR1

157216 RED, 157193 BLACK
