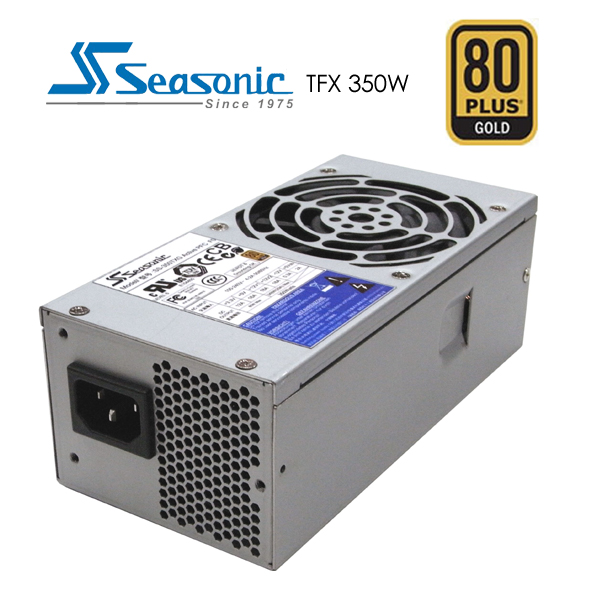

The Seasonic SS-350TGM is probably the best quality low noise TFX power supply currently available in the market.
A number of innovations mean this PSU can operate silently with the fan stationary when the attached system load is less than 50%, under most conditions.
Furthermore the modular cabling approach means system integrators can develop a range of custom cable solutions with just a single PSU, flexibility that reduces and simplifies stock holding.
Features:
- Specification compliance: TFX12V v2.31??
- Support the latest Intel & AMD Socket
- DC to DC converter design
- High efficiency and reliability??
- Low ripple & noise??
- Super low noise fan control??
- Short circuit protection on all outputs??
- Over voltage protection
- Over power protection
- 100% hi-pot test
- 100% burn in, high temperature cycled on/off
Specifications:
1.CONNECTORS |
|
1x 20+4pin ATX |
|
1x 4+4pin: 4pin ATX 12V or 8pin EPS12V |
|
4x SATA |
|
2x 4pin Molex |
|
1x 4pin FDD |
2.GENERAL |
|
|
Output Power |
350W |
|
PFC |
Active PFC, 99% typical |
|
Efficiency |
>87% 80Plus Gold Certified |
|
Weight |
1.25kg |
|
Colour |
Silver |
|
Fan |
80mm |
|
Dimensions |
175x85x63.5mm (LxWxH) |
|
Protection |
OVP,OPP, Short Circuit Protecion on all outputs |
3.ELECTRICAL |
|
|
Input Voltage |
90 to 264Vac |
|
Input Frequency |
47~63Hz |
|
Inrush Cirremt |
Cold start, 100A |
|
Line Regulation |
??1% typical |
|
Load Regulation |
??5% typical |
|
Cross Regulation |
??5% typical |
|
Ripple/Noise |
1% |
|
MTBF |
>100,000 hours minumum @ 25??C, full load, excluding DC fan |
|
Output Voltage |
+3.3V |
+5V |
+12V1 |
+12V2 |
-12V |
+5Vsb |
|
Max current |
12A |
16A |
18A |
18A |
0.3A |
2A |
*Note
+3.3V & 5V 80W Max
+12V1 & 12V2 348W Max
Max combined 350W
4.ENVIRONMENTAL |
|
|
Operational Temperature |
0 to +50??C |
|
Storage Temperature |
-40 to +80??C |
|
Operational Humidity |
20 to 85%, non-condensing |
|
Storage Humiditiy |
10 to 95%, non-condensing |
5.CERTIFICATION |
|
|
Satety |
CUL, UV, CB |
|
EMC |
CE, Fcc, C-Tick |
