Description
- 【”eWeLink-Remote” Control】M5 is a smart switch with the gateway function of “eWeLink-Remote“. If you want to use the “eWeLink-Remote” control function, you need to use it with the S-MATE or scene remote controller R5.
- 【Physical buttons】High-precision physical button to operate. Anyone can easily use it.
- 【Safe Disassembly】Separate the high and low voltage which you can disassemble the switch safely.
- 【APP control】Manage devices at any time, don’t worry about forgetting to turn off the electrical appliances.
- 【Voice control】Supports voice control by working with Alexa, Google Home, Alice and Siri shortcut.
- 【Safety Certification】CE and UKCA certified. Safe performance is guaranteed.
Specifications:

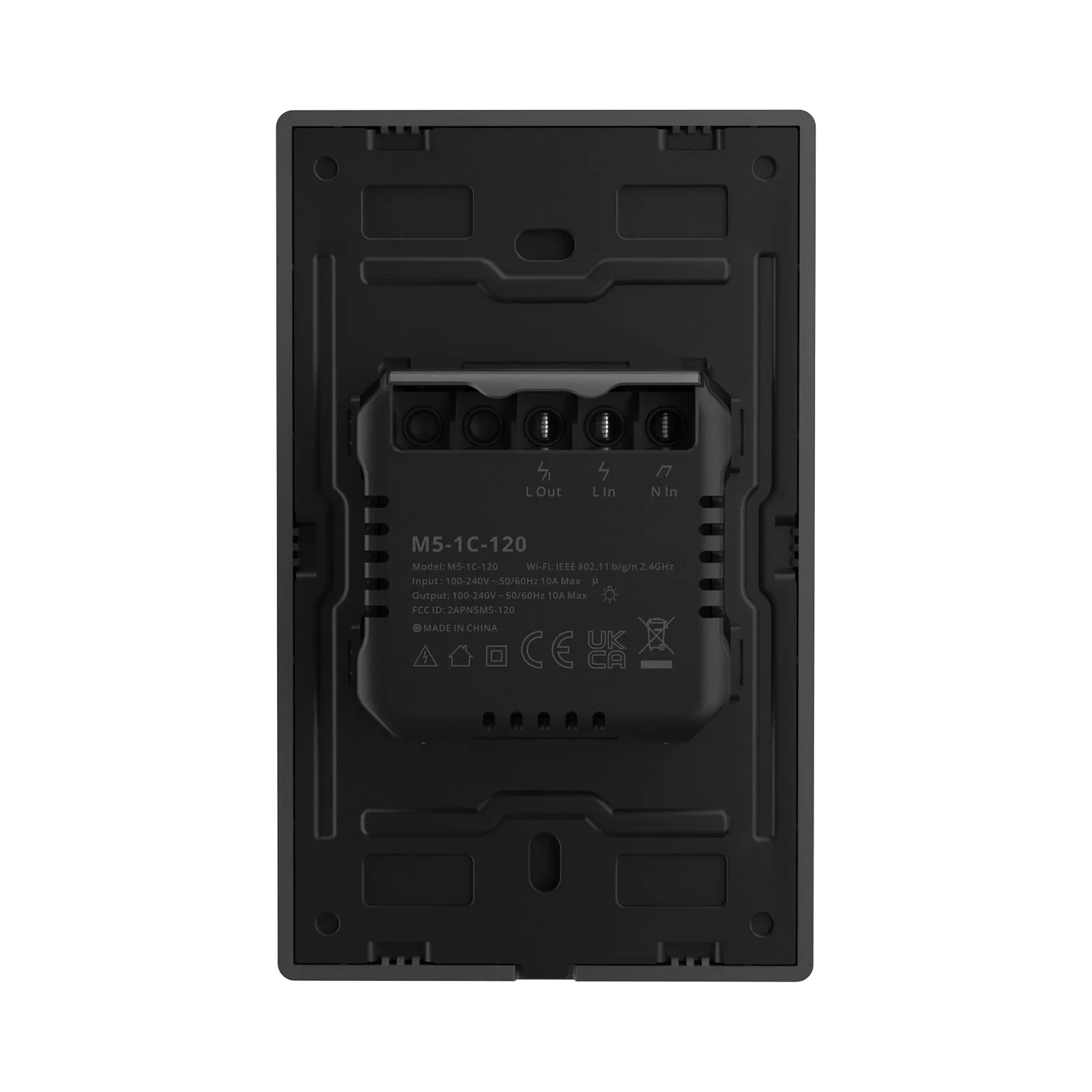

| Gang | 1 Gang, 2 Gang, 3 Gang |
|---|---|
| Type | 80, 86, 120 |
| Wi-Fi | IEEE 802.11 b/g/n 2.4GHz |
| Casing material | PC V0 |
| Working temperature | -10°C-40°C |
| Voltage | 100-240V AC 50/60Hz |
| Output | 100-240V AC 50/60Hz |
| MCU | ESP32 |
| M5-1C Current output | 10A |
| M5-2C Current output | 10A(5A/Gang) |
| M5-3C Current output | 6A(2A/Gang) |
| M5-1C Max. power | 2200W |
| M5-2C Max. power | 2200W(1100/Gang) |
| M5-3C Max. power | 1320W (440W/Gang) |
| 80 Certification | CE/UKCA |
| 86 Certification | CE/UKCA/CQC/SRRC |

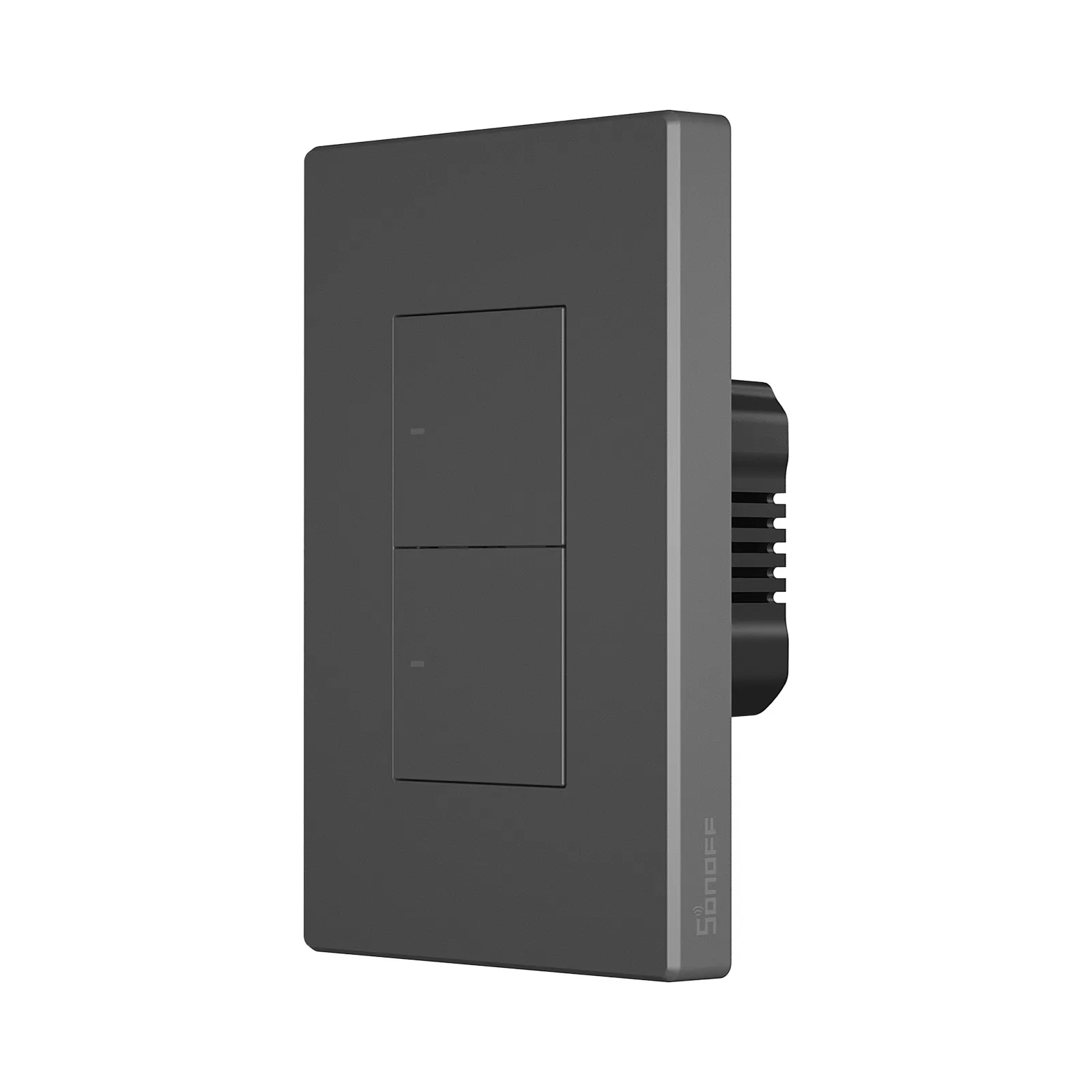

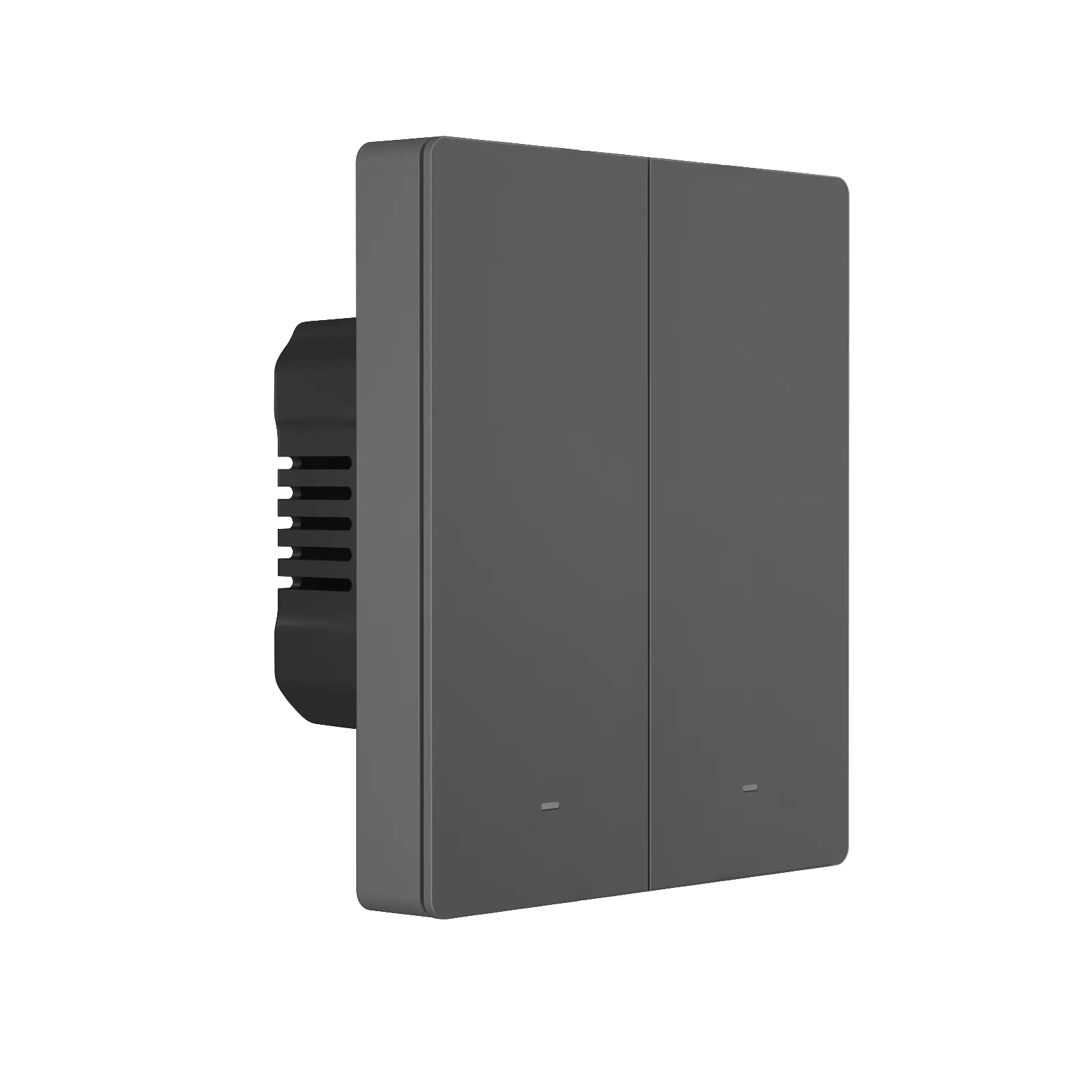

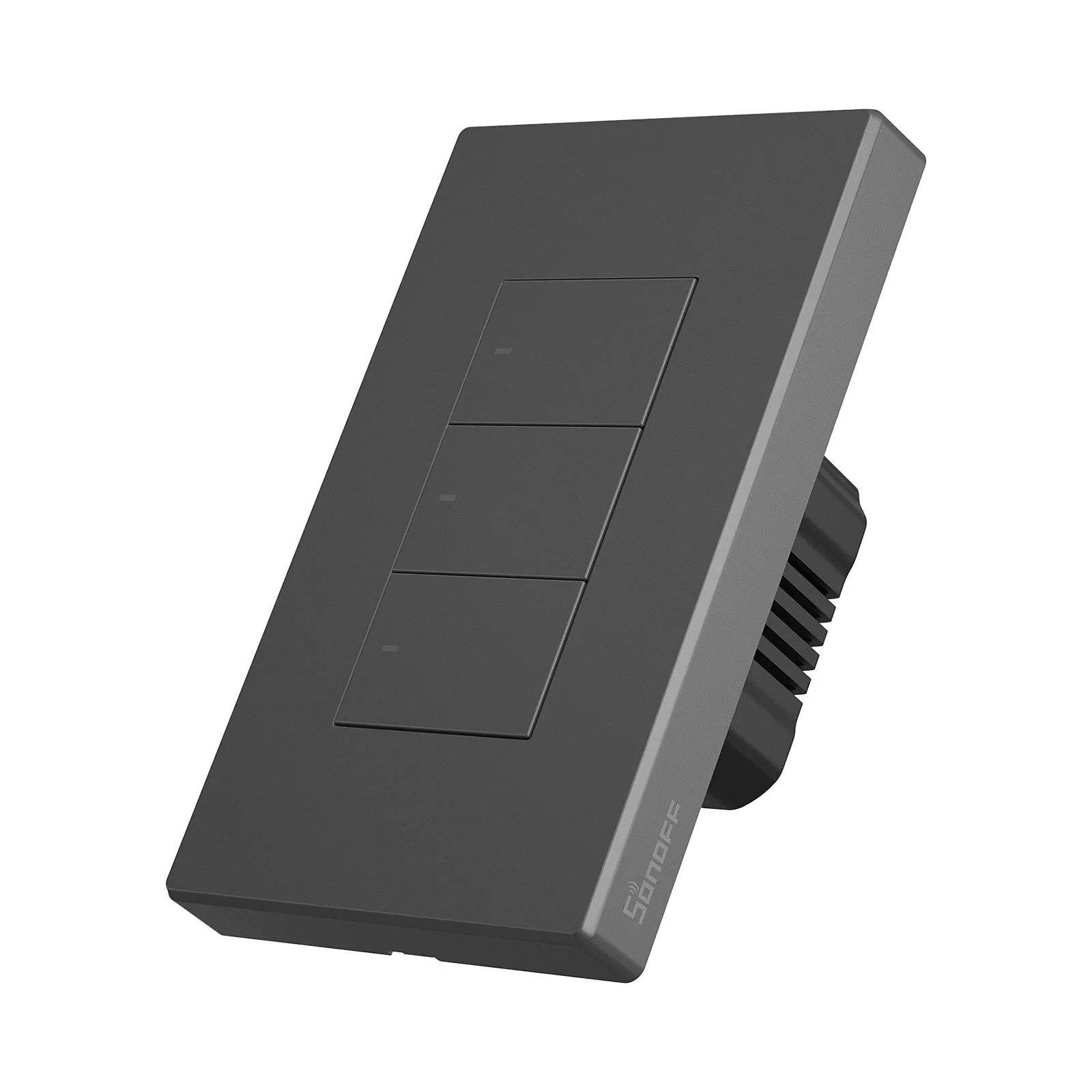

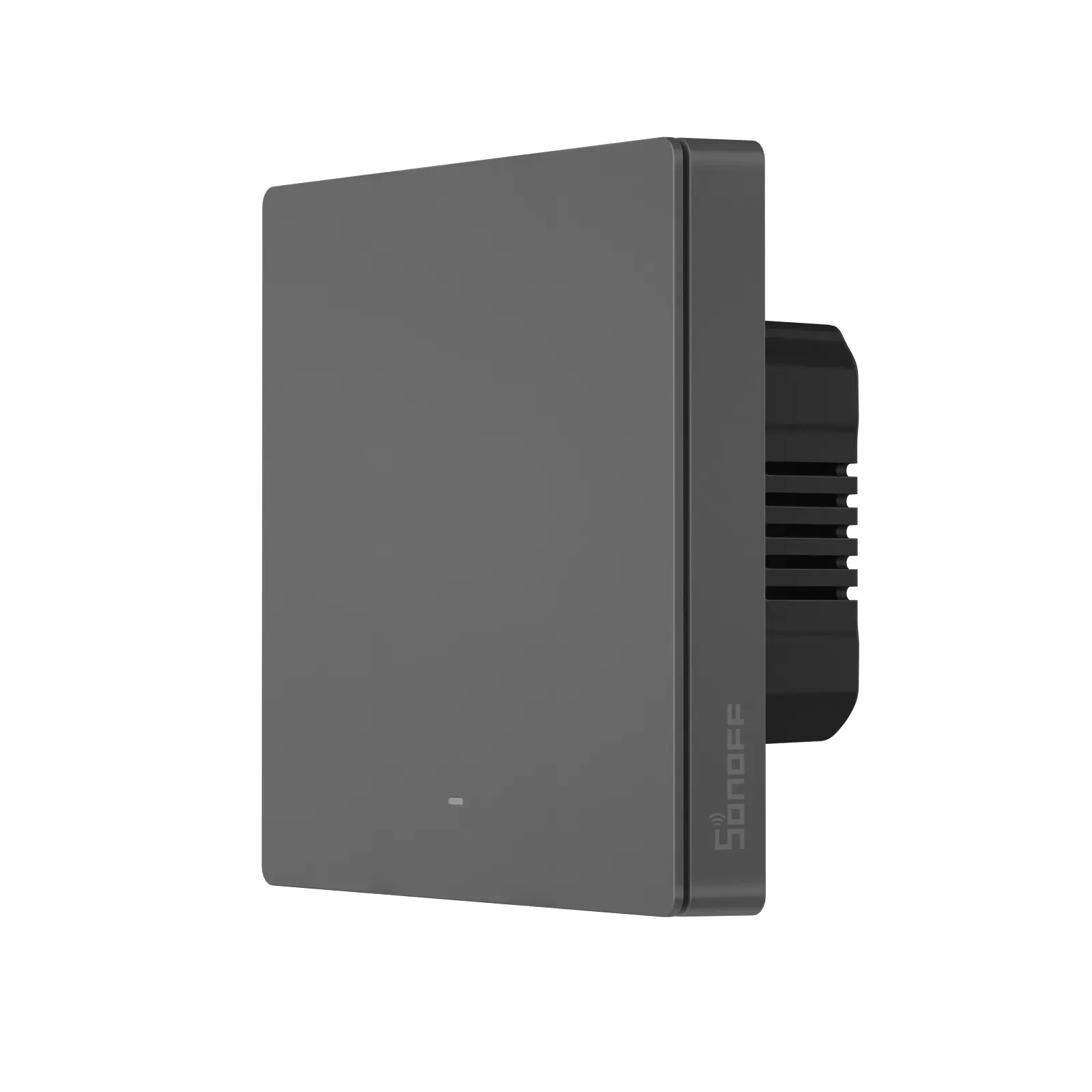

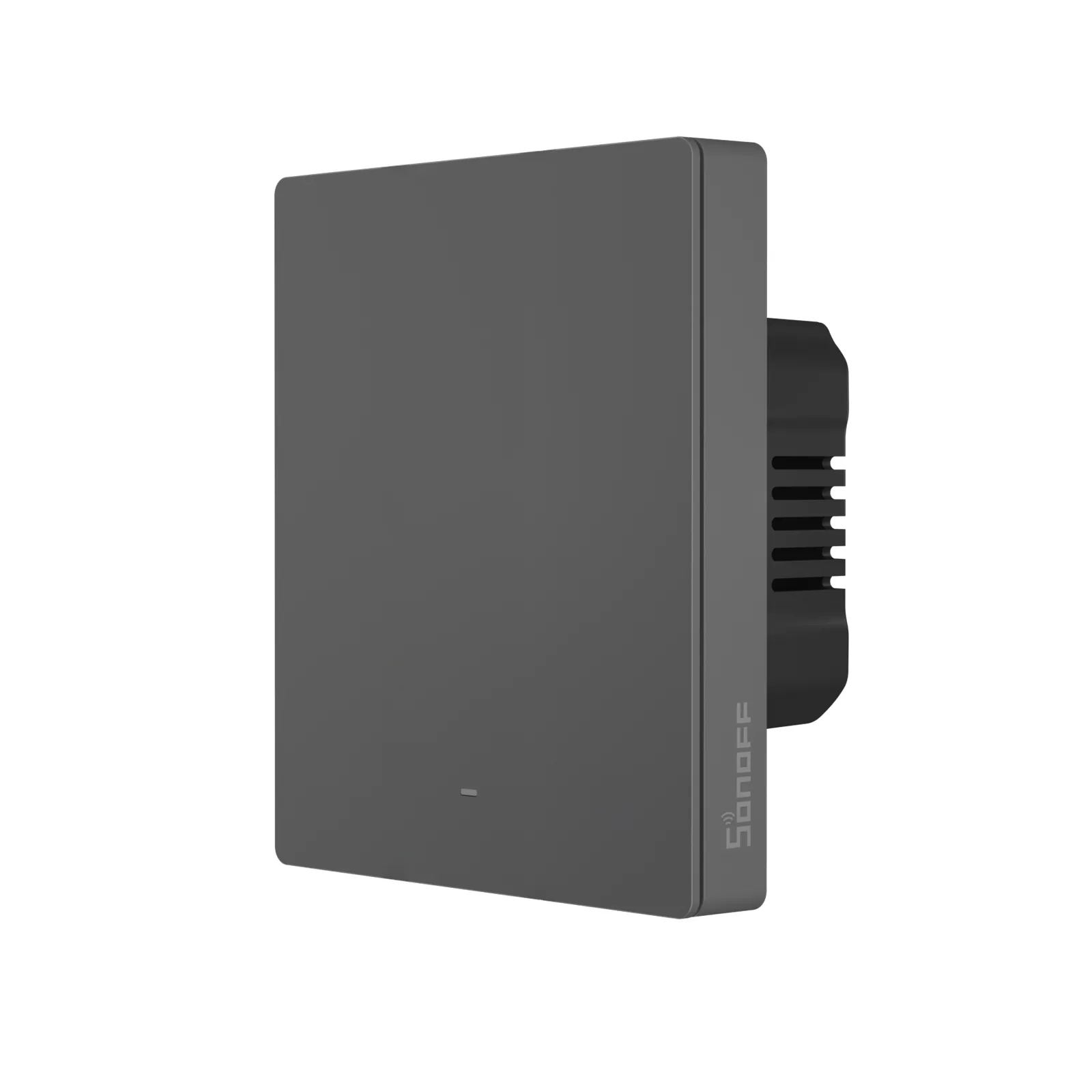

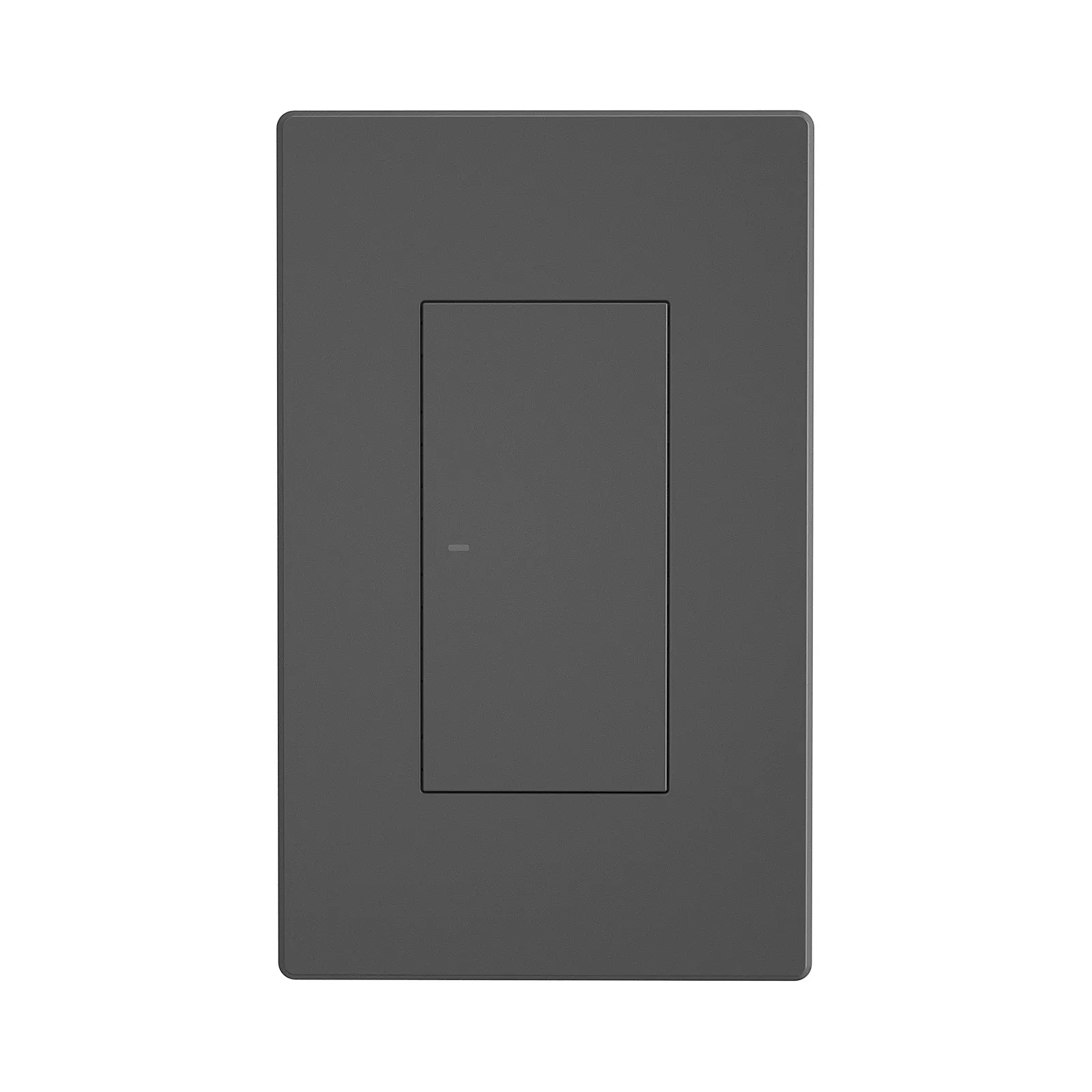

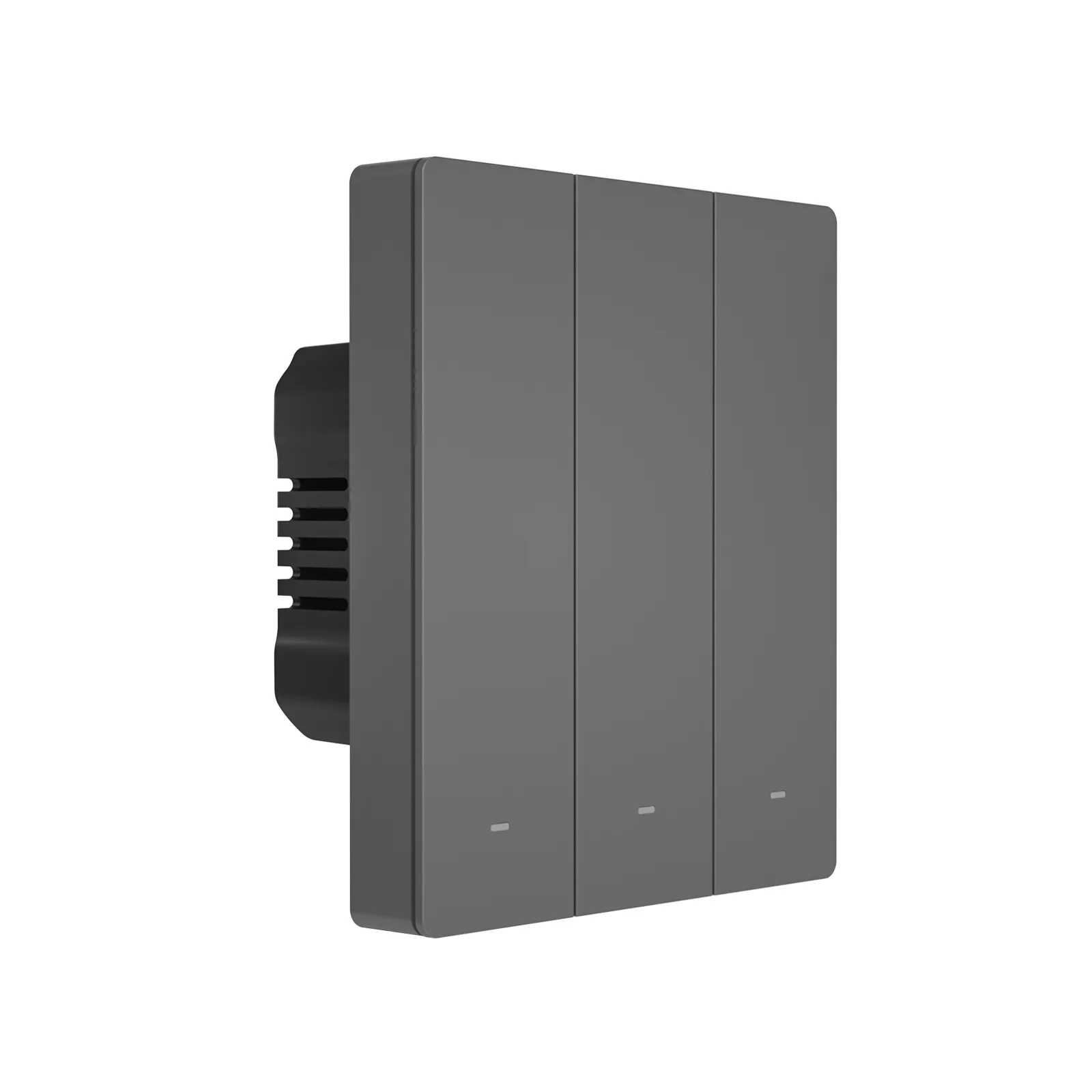

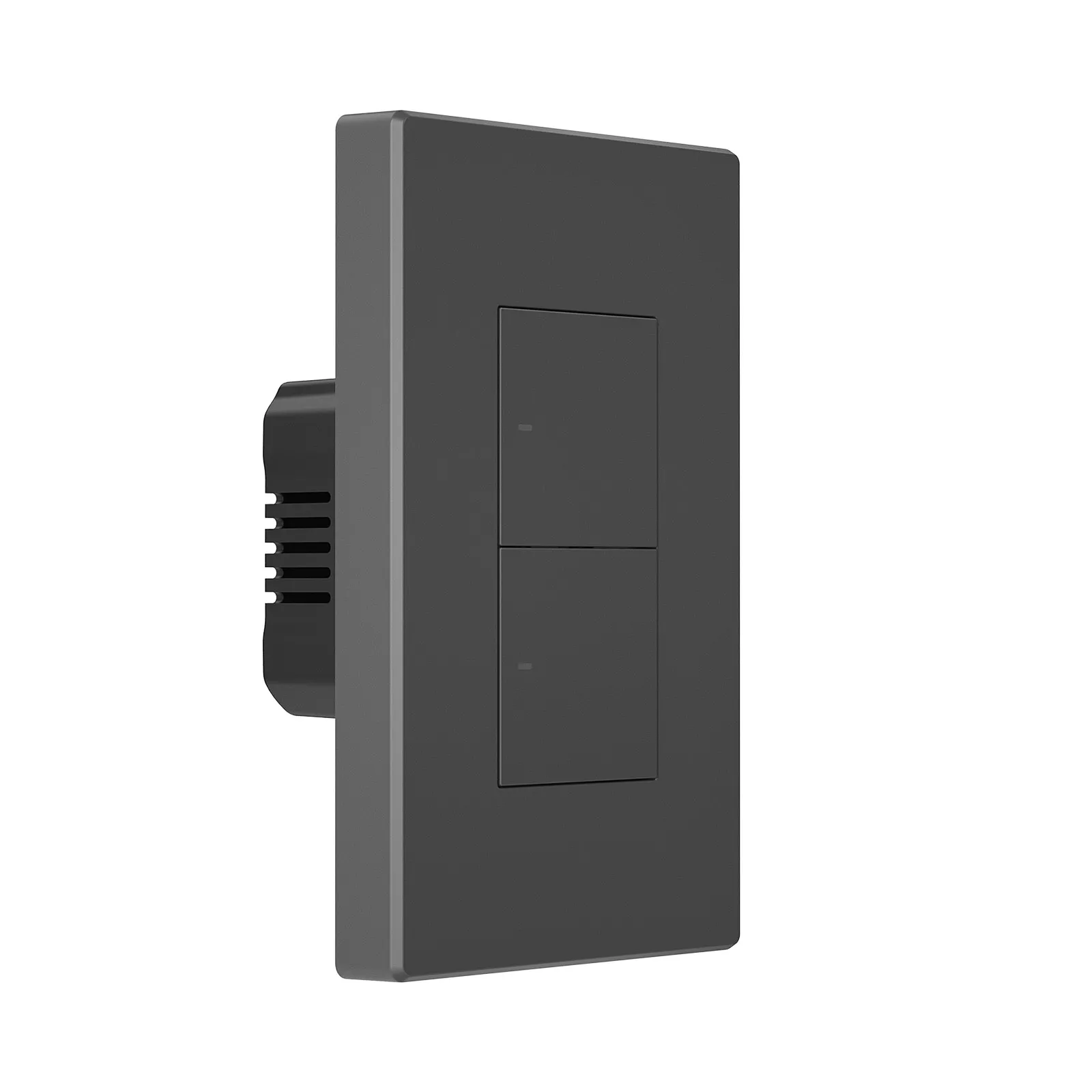

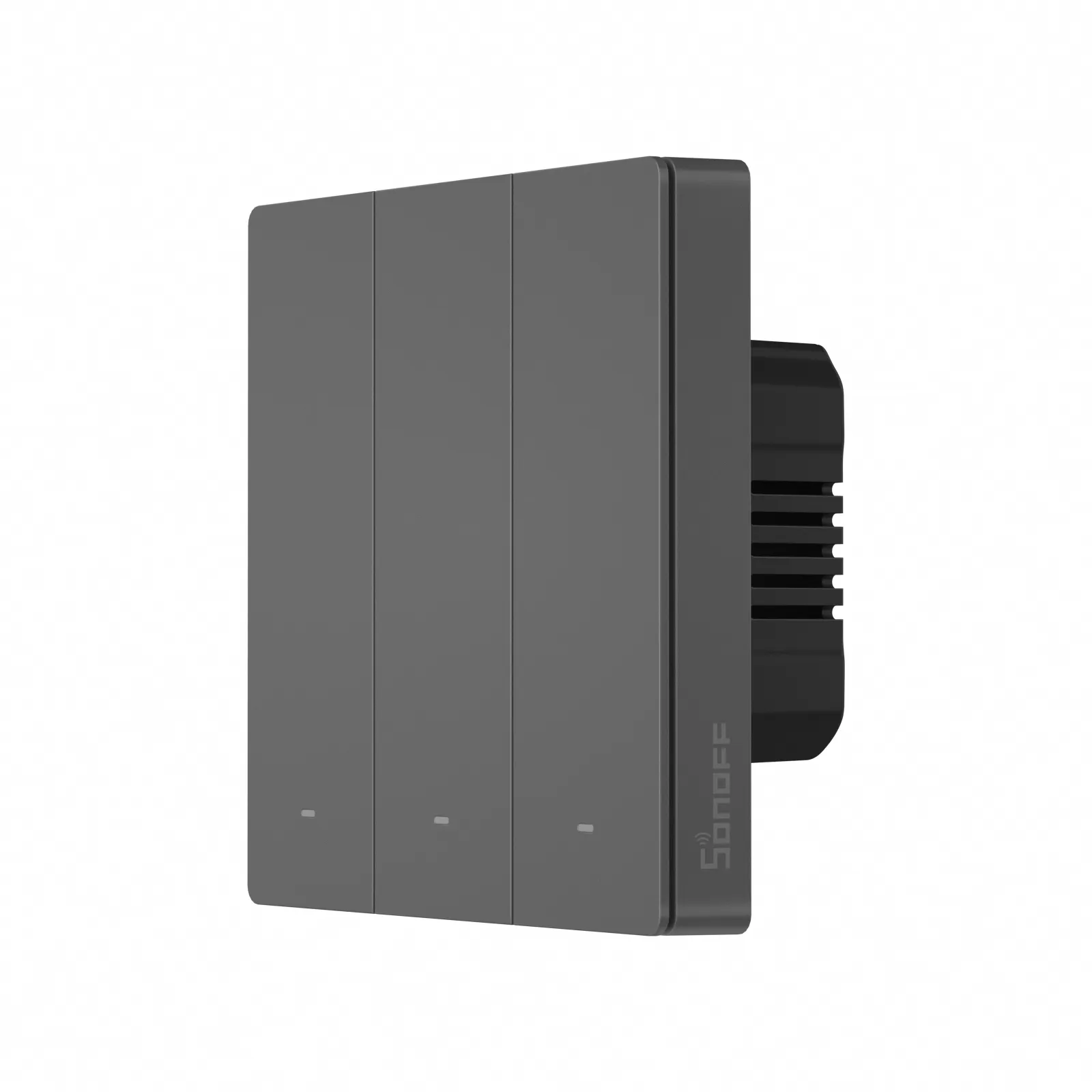

SONOFF SwitchMan M5 is a mechanical smart switch that is available in 1/2/3 channel, supporting local button, App and voice control. Through the eWeLink APP, you can manage devices at any time, don’t worry about forgetting to turn off the electrical appliances when you go out.
Want to quickly find the switch button by the LED indicator? Or prefer to sleep well without the disturbance of lights? The LED indicator on the button can be adjusted to various brightness to meet your need.
M5 supports voice control by working with Alexa, Google Home, Alice and Siri shortcut. When you are busy, you can turn on the light by your voice.
Besides, operated on NSPanel smart scene wall switch to make you control the connected light or home appliances on a touch screen using a tap, and it has the same color as NSPanel which provides a consistent decoration to match your home style.
Package includes :
1 * M5 SwitchMan Smart Wall Switch
2 * Screw
1 * User Manual
