T05-5500 5500mW 445nm Blue Laser Module TTL&PWM Modulation 2.54-3P+2.54-2P for EleksMaker DIY Laser Engraver

$470.75 AUD

or 6 weekly interest-free payments from $78.45 with Laybuy what's this?

Only 2 left in stock

Optional product install assistance
Estimated delivery between 2021/07/31 - 2021/08/07
Add to Wishlist
Add to Wishlist
SKU: 18408 Category: Tags: , , , , , , , , , , , , , , ,
Specification:
General Specification
 Model  T05
 Heatsink Material  Aircraft Aluminum
 Luminous Color  Blue
 Section Size  43mm x 43mm
 Cooling Mode  Heat Sink Groove, Cooling Fan
 Dimension  76 * 43 * 43mm
 Adapter Plug  US Plug
 Adapter Input Voltage  AC 100-240V
 Adapter Output Voltage  DC 12V 5A
 Can Engrave  MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
 Can Not Engrave  Metal/Glass/Stone/Ceramics/Stainless Steel/Reflective Material/ Transparent Material
 Technical Parameters
 Laser Power  5500mW
 Wavelength  445nm

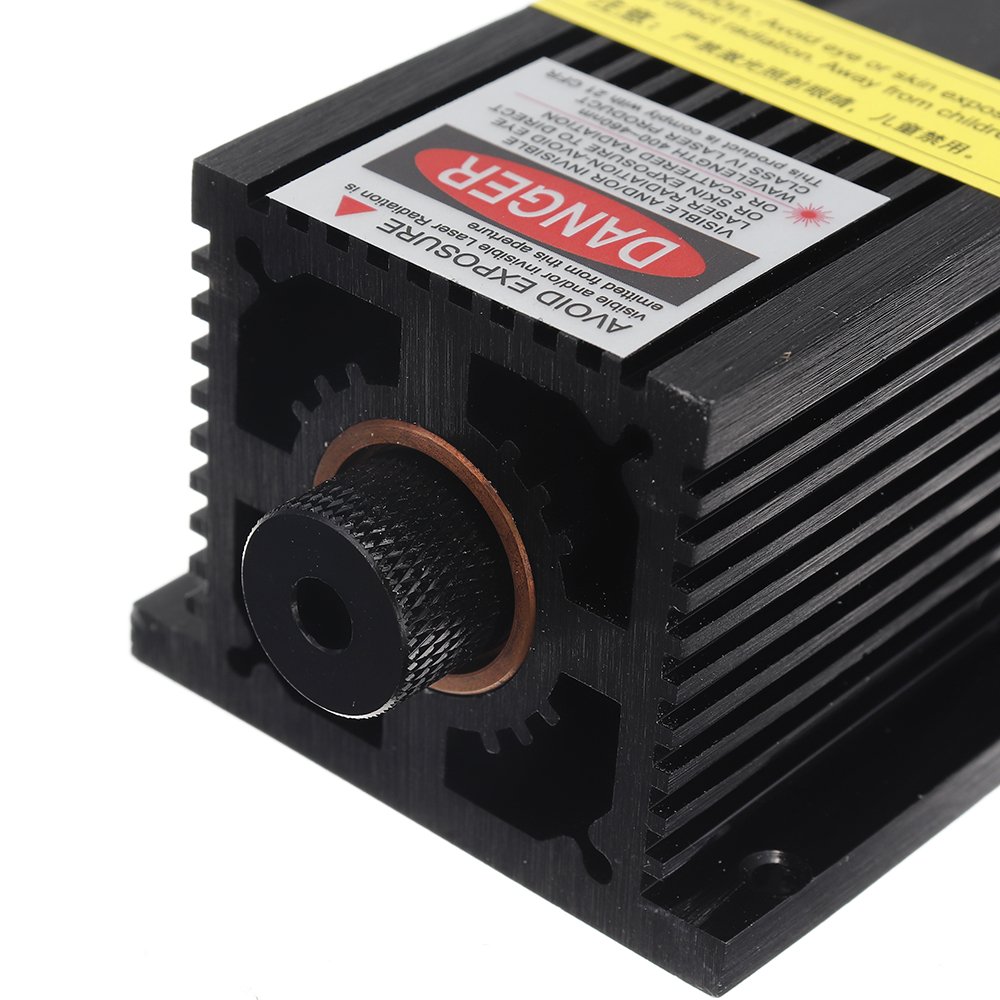

 Beam Shape  Dot (Focusable)
 Working Voltage  DC 12V
 TTL/PWM Modulation  YES
 Input Voltage  DC12V (+,-, PWM) + DC5V (TTL,-)
 Input Interface  XH2.54-3P (+,-, PWM) + XH2.54-2P (TTL,-)
 Drive Mode  External ACC
 Life Time  >10,000 hours

Features:

– T05-5500 445nm 55000mW focusable powerful blue laser module, with both TTL and PWM functions. (TTL can control the switch and PWM can control the power).

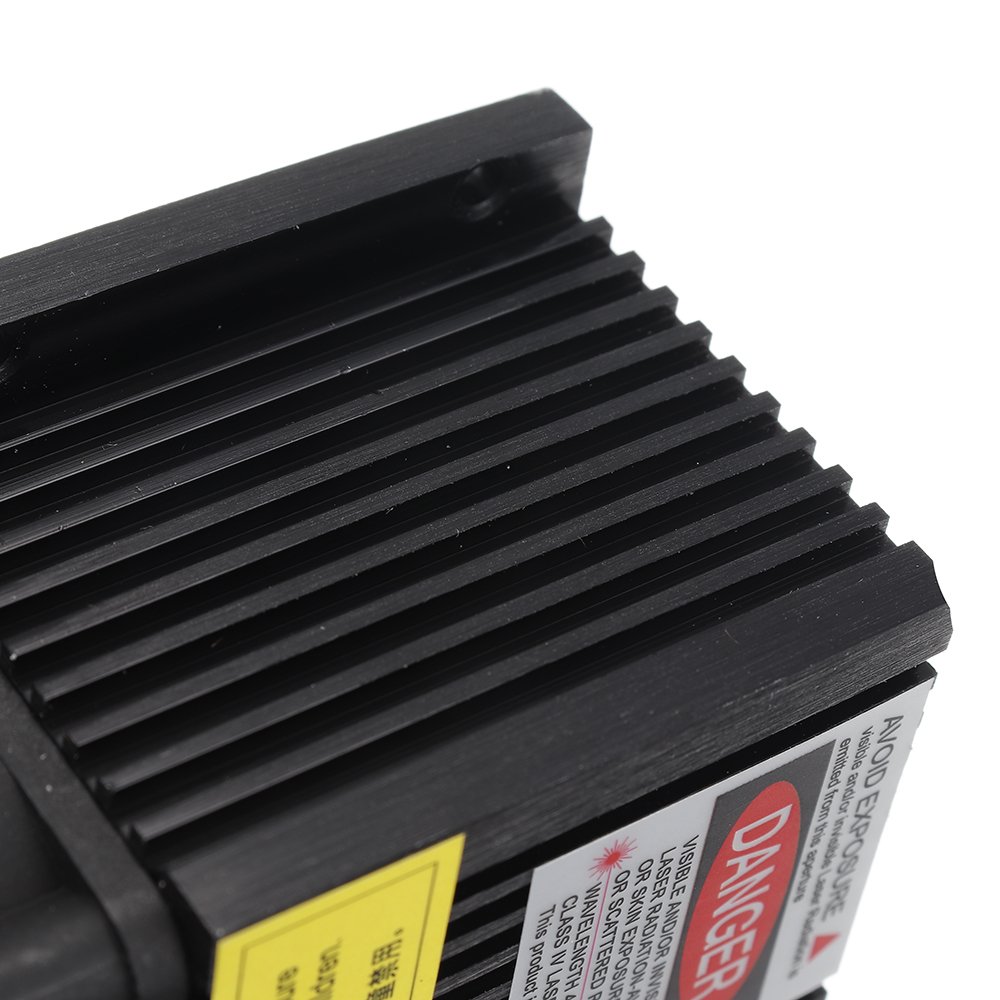

– Aircraft aluminum heatsink with cooling fan ensure long working time continuously.

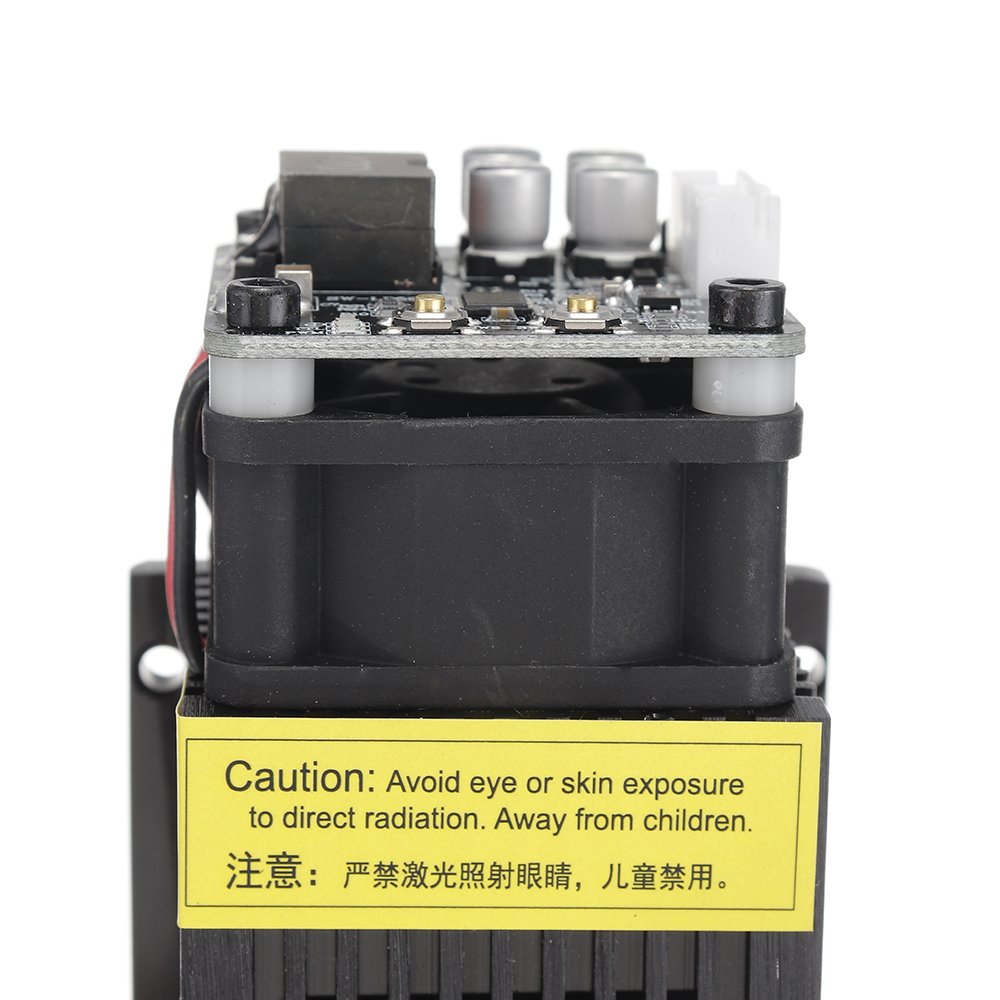

– Equipped with constant-current driver board ensure stable output optical power, low heat no external driver board needed, easy to use.
– 3 pins plug for DC 12V power supply and PWM, 2 pins plug for TTL, TTL/PWM drive mode, suitable for laser engraving machine equipment usage.
– Can Engrave: Wood, Plastic, PCB, Paper, Bamboo, Ox Horn, Leather, Sponge Paper, Metal, Stone, Ceramics, etc.
  Can Not Engrave: Glass, Reflective or Transparent Material.

Notice:
1. Please wear laser goggles during usage, avoid to touch the laser directly to the eyes and skin! Keep away from children and pets.
2. Note that the laser module works less than half an hour in one time, and please wait until it has cooled down before continuing the work.
3. The warranty period of laser module is one month. If you have any quality problem(Except individual situation like using the laser module more than 30 minute one time and casue the damage ), please feel free to ask our customer service for a help. Thanks for your understanding.

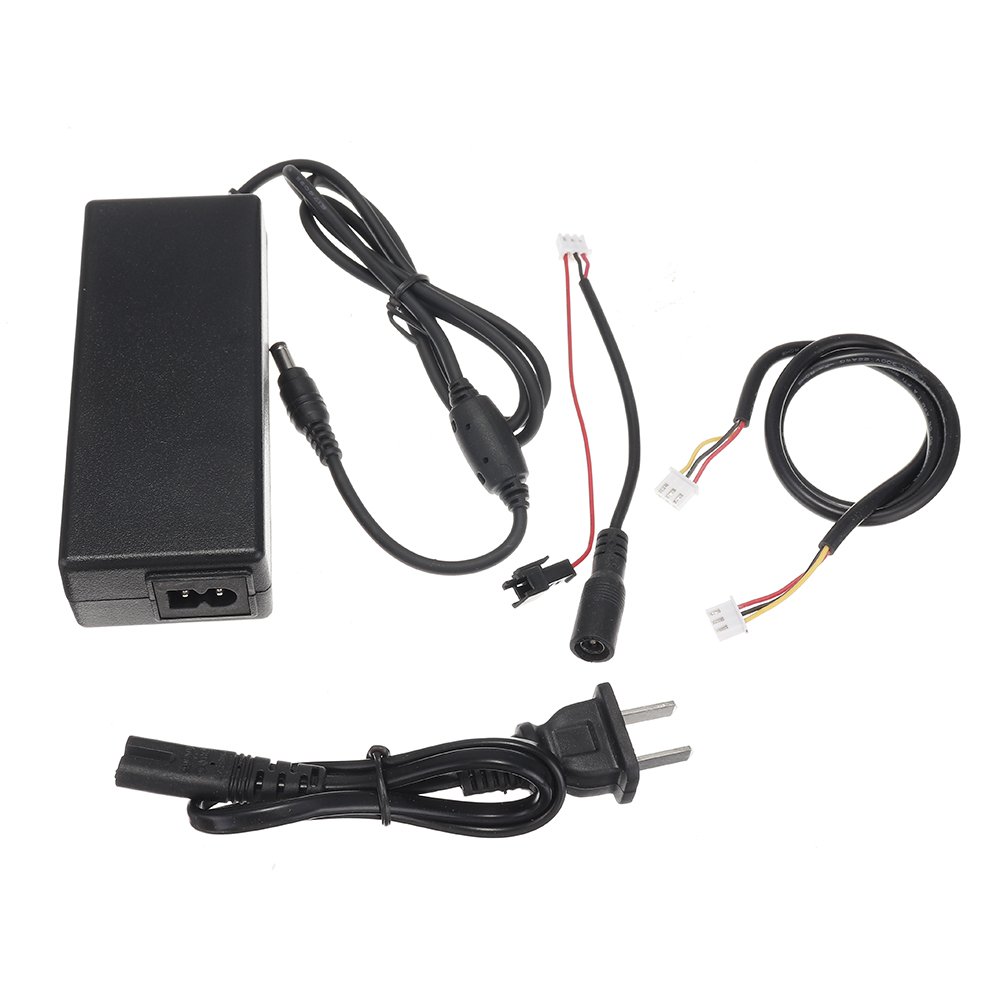

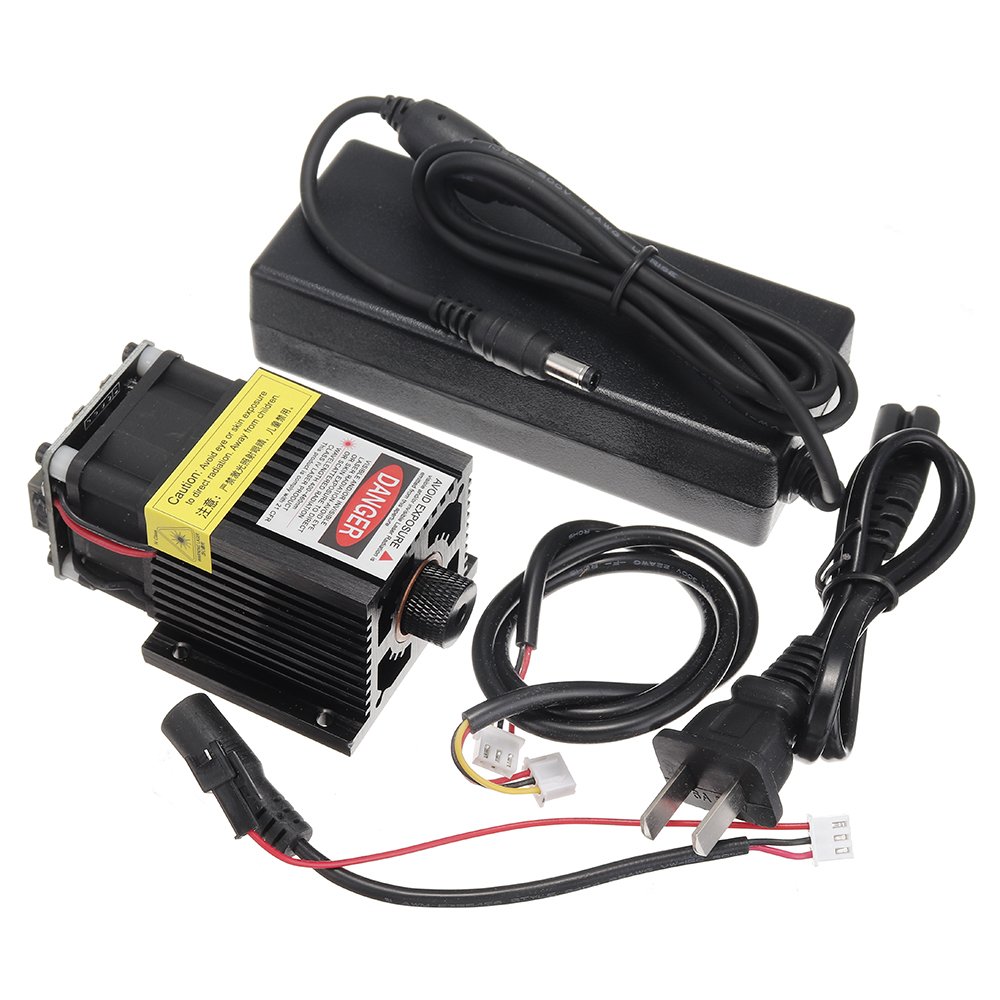

Package Included:
1 x T05-5500 5500mW Blue Laser Module
1 x Power Adapter
2 x Connector Cables (As The Picture Shown)
(Carboard Box Packing)

T05-5500 5500mW 445nm Blue Laser Module TTL&PWM Modulation 2.54-3P+2.54-2P for EleksMaker DIY Laser Engraver 27

T05-5500 5500mW 445nm Blue Laser Module TTL&PWM Modulation 2.54-3P+2.54-2P for EleksMaker DIY Laser Engraver 28

T05-5500 5500mW 445nm Blue Laser Module TTL&PWM Modulation 2.54-3P+2.54-2P for EleksMaker DIY Laser Engraver 29

T05-5500 5500mW 445nm Blue Laser Module TTL&PWM Modulation 2.54-3P+2.54-2P for EleksMaker DIY Laser Engraver 30

T05-5500 5500mW 445nm Blue Laser Module TTL&PWM Modulation 2.54-3P+2.54-2P for EleksMaker DIY Laser Engraver 31

T05-5500 5500mW 445nm Blue Laser Module TTL&PWM Modulation 2.54-3P+2.54-2P for EleksMaker DIY Laser Engraver 32

T05-5500 5500mW 445nm Blue Laser Module TTL&PWM Modulation 2.54-3P+2.54-2P for EleksMaker DIY Laser Engraver 33

T05-5500 5500mW 445nm Blue Laser Module TTL&PWM Modulation 2.54-3P+2.54-2P for EleksMaker DIY Laser Engraver 34
