Upgrade Ramps 1.6 Base On Ramps1.5 Control Mainboard + Mega2560 R3 + 5Pcs DRV8825 Kit for Reprap 3D Printer

or 6 weekly interest-free payments from $9.08 with Laybuy what's this?

$54.52 AUD

Only 1 left in stock

Estimated delivery between 2022/01/25 - 2022/02/01
Add to Wishlist
Add to Wishlist
SKU: 19229 Category:

Description

Descriptions:

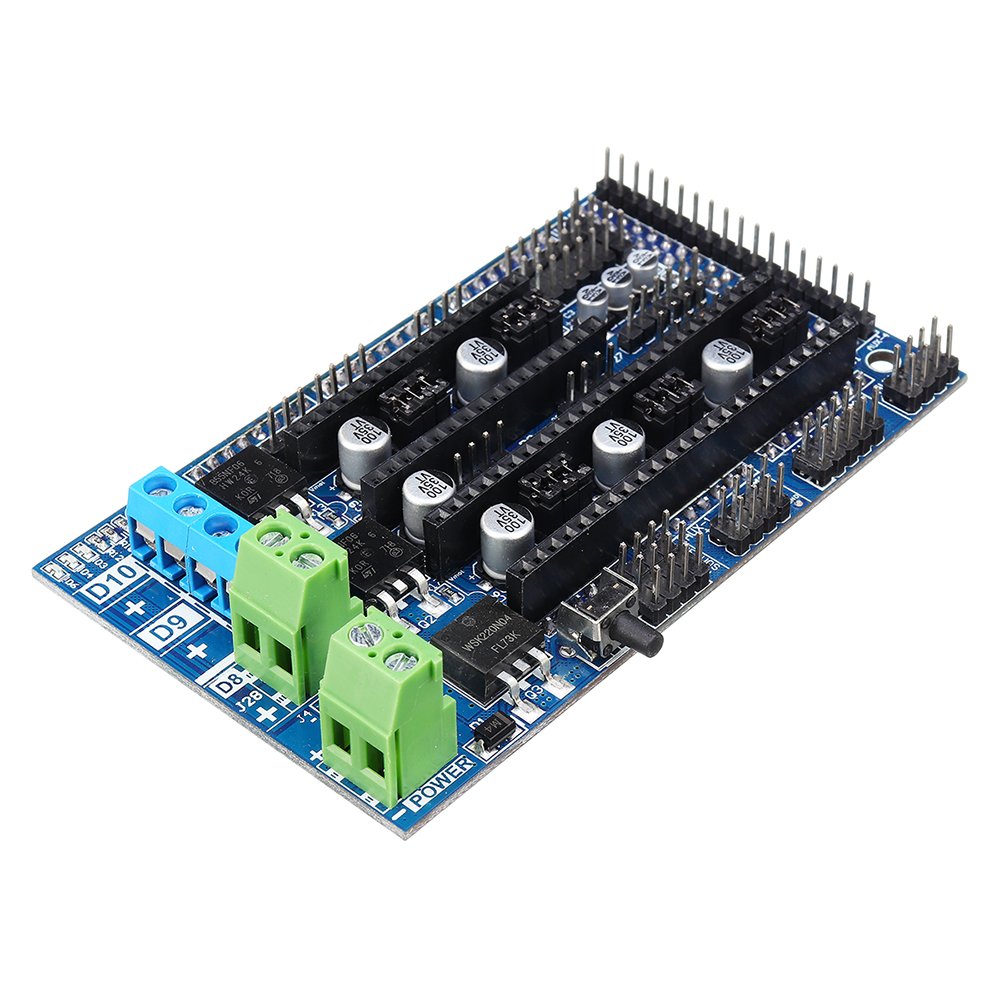

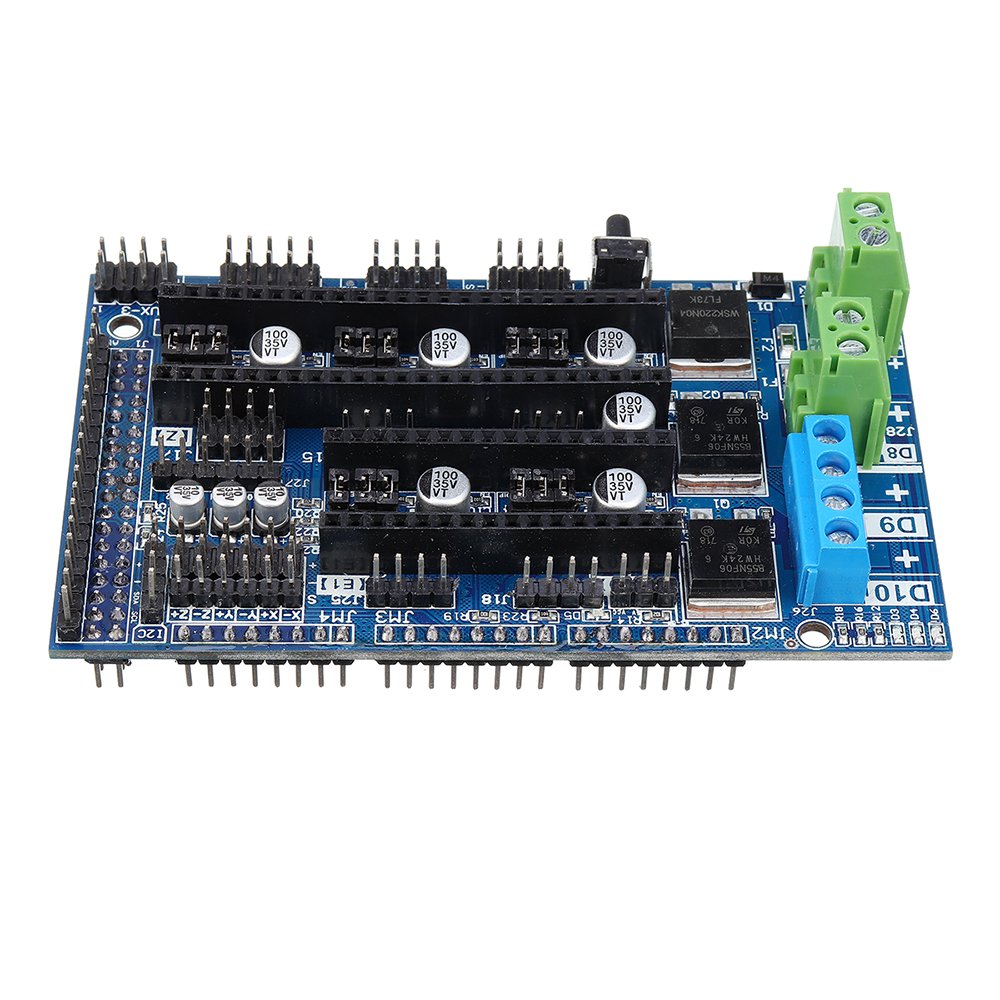

Ramps1.6 is a 4-layer motherboard. Ramps1.6 have new 2pin connectors, which more simple and convenient to connect, also will not be burnt easily. what’s more, Ramps 1.6 have a good Heatsink above MOS tube in order to give a better function to heat dissipation.
Besides, the Power of Ramps 1.6 is larger than Ramps1.5, the largest power will be up to or 270W, and  Ramps 1.5 just can be up to 200W, or smaller than 200W.

Features

1. It can be extended to LCD and other parts.
2. There are heater and fan MOSFET outputs and 3 thermistor interfaces.
3. 5A additional security and component protection fusion.
4. Heated bed controls additional 11A fuses.
5. Applied to 5 Pololu stepper drive board.
6. Design of Pololu plate pin socket can be easily replaced or removed for future design.
7. I2C and SPI pins are available for future expansion.
8. Servo connectors are used for connecting limit stops, motors, and light-emitting diodes. These connectors are gold-plated and have a rated current of 3A, which is very compact.
9. The LED will light when the heater has output choose 2 motors to connect to Z Prusa Mendel.

Upgrade Ramps 1.6 Base On Ramps1.5 Control Mainboard + Mega2560 R3 + 5Pcs DRV8825 Kit for Reprap 3D Printer 13
Upgrade Ramps 1.6 Base On Ramps1.5 Control Mainboard + Mega2560 R3 + 5Pcs DRV8825 Kit for Reprap 3D Printer 14

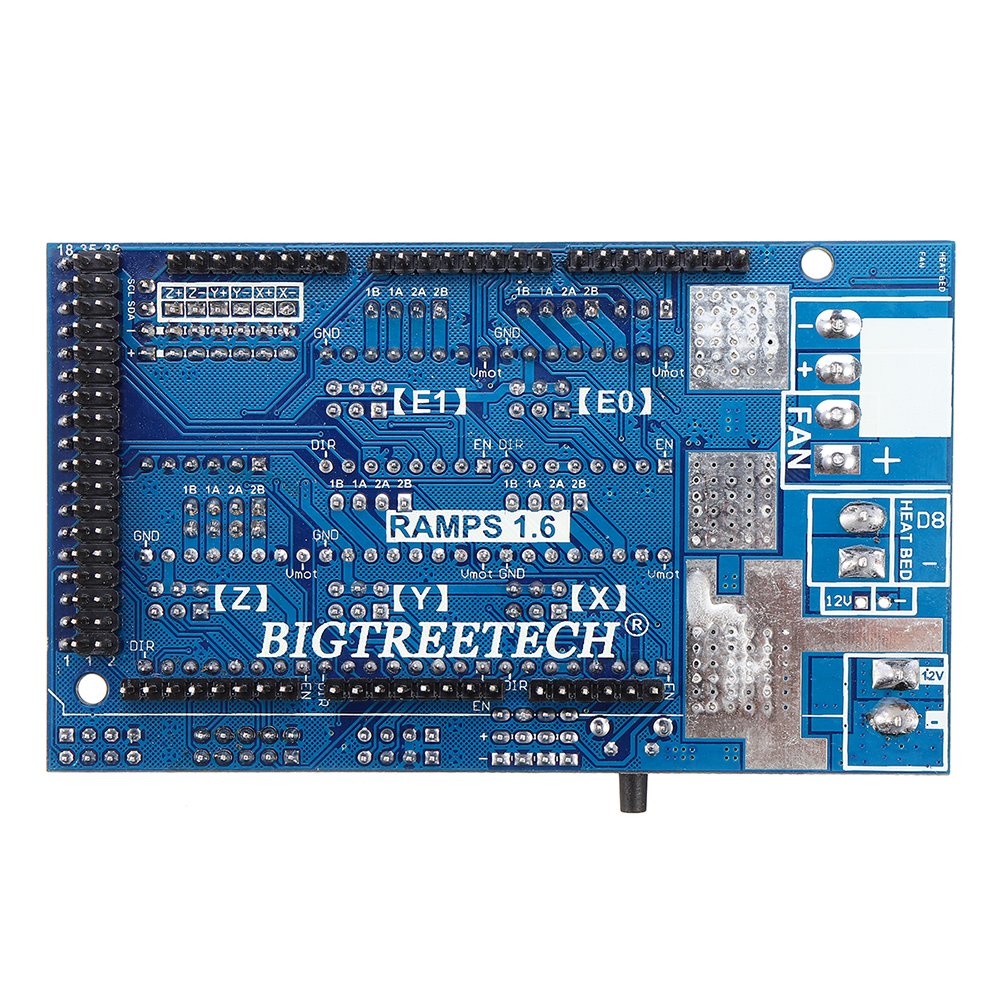

Ramps1.6 Parameters:


Size: 101.5 * 60.5mm
Support motor drivers: five motor drivers Simultaneously, sucn as:  A4988 DRV8825 and other motor drivers
Input voltage: 12V
Power: 200W
Patch MOS tube: B55NF06

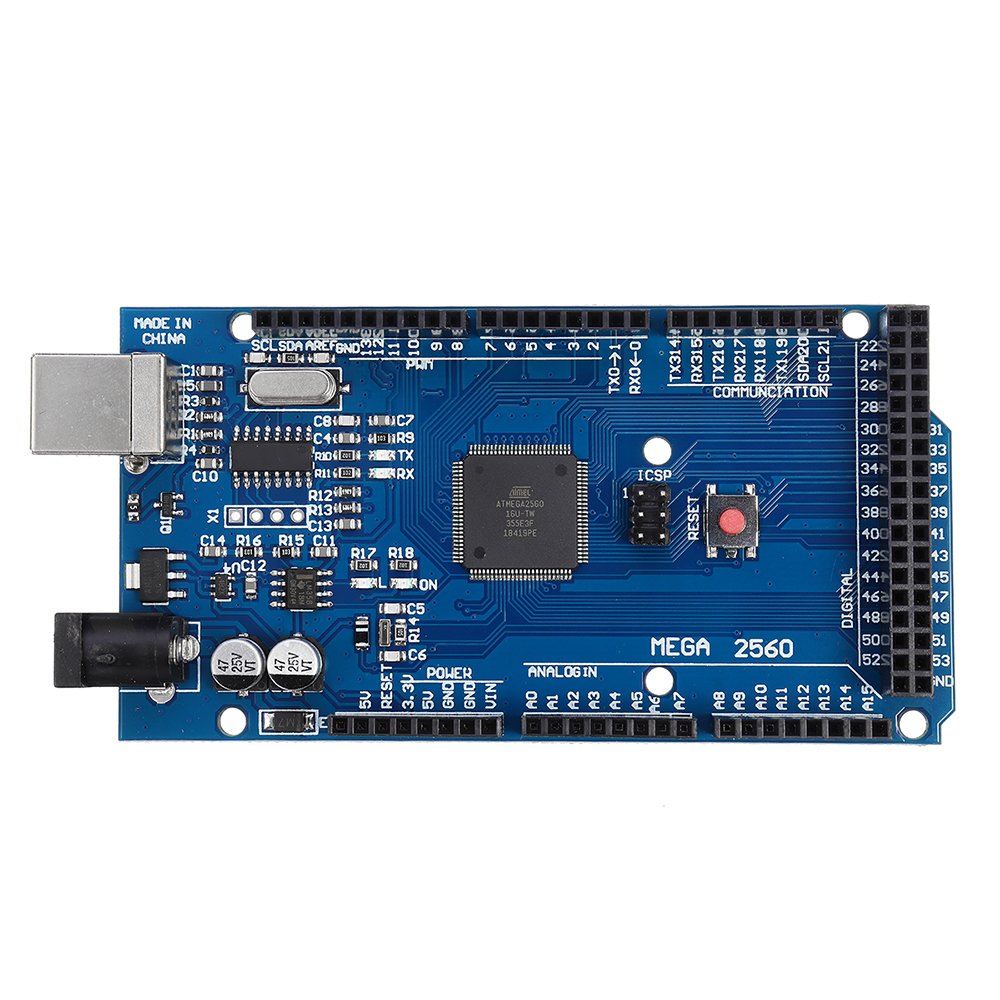

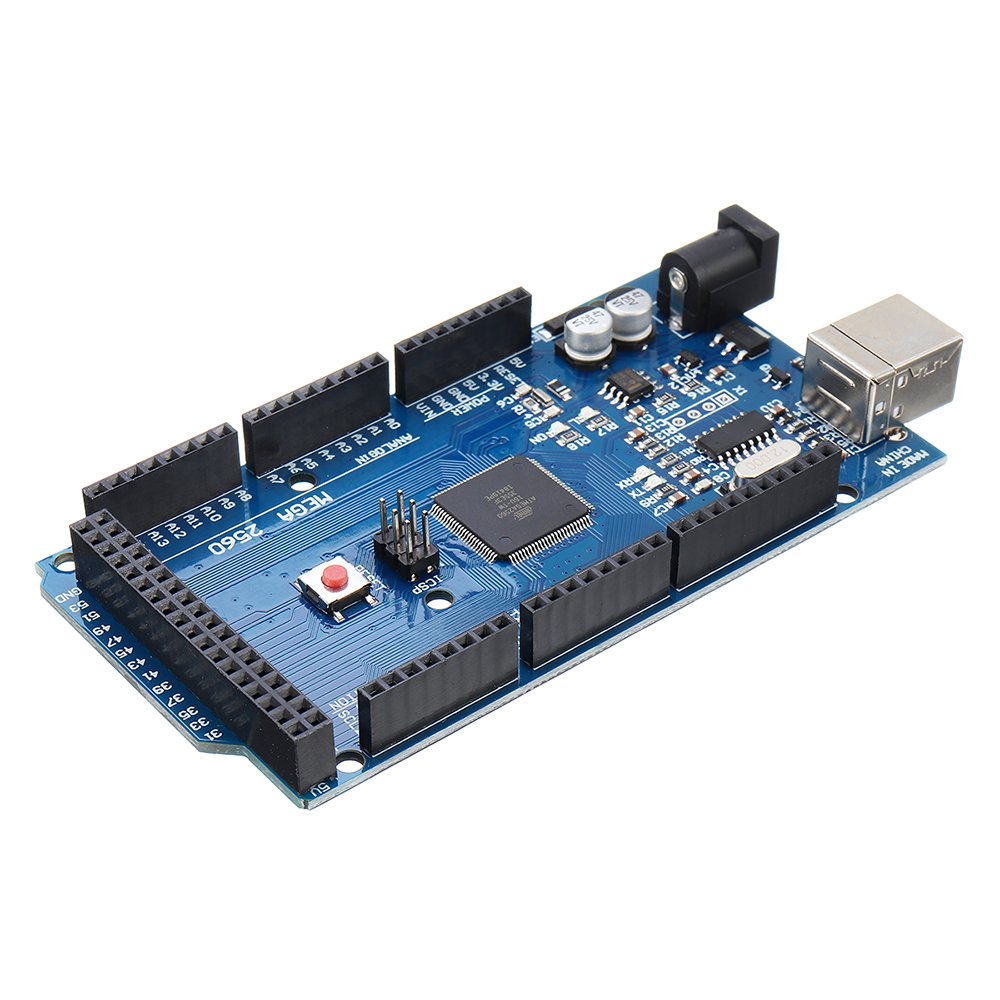

Mega2560 R3 Parameters:

Operating Voltage: 5V
Input Voltage (recommended): 7-12V
Input Voltage (limits): 6-20V
Digital I/O Pins: 54 (of which 14 provide PWM output)
Analog Input Pins: 16
DC Current per I/O Pin: 40mA
DC Current for 3.3V Pin: 50mA
Flash Memory: 256 KB of which 4KB used by bootloader
SRAM: 8KB
EEPROM: 4KB

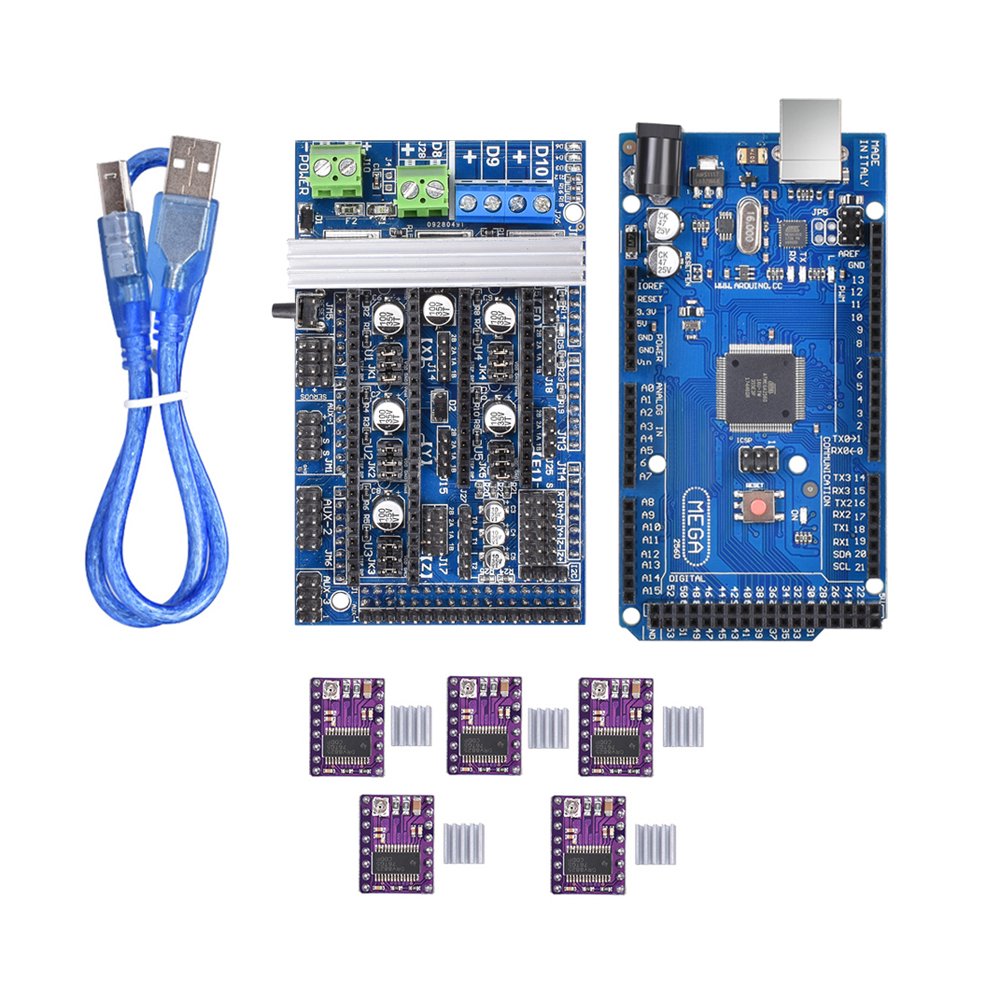

Package Included:

1 x Ramps 1.6 mainboard

1 x Mega 2560 R3

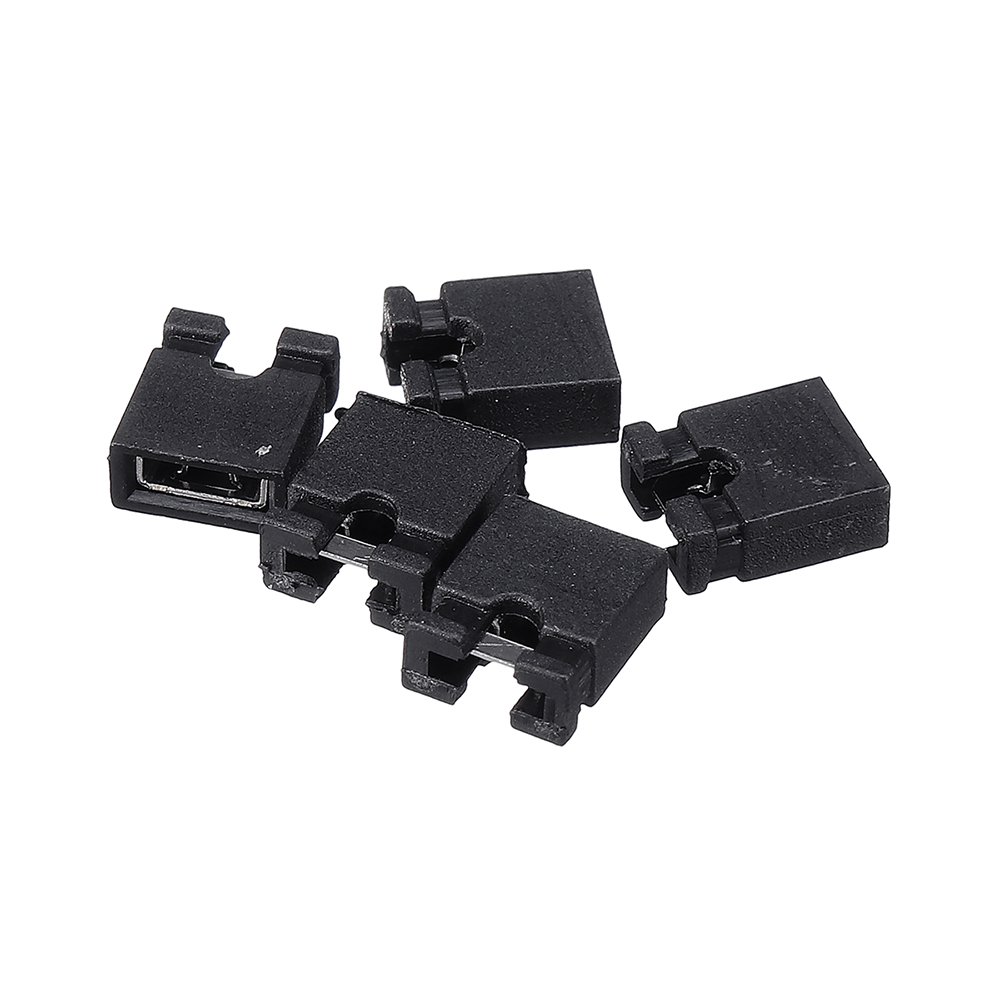

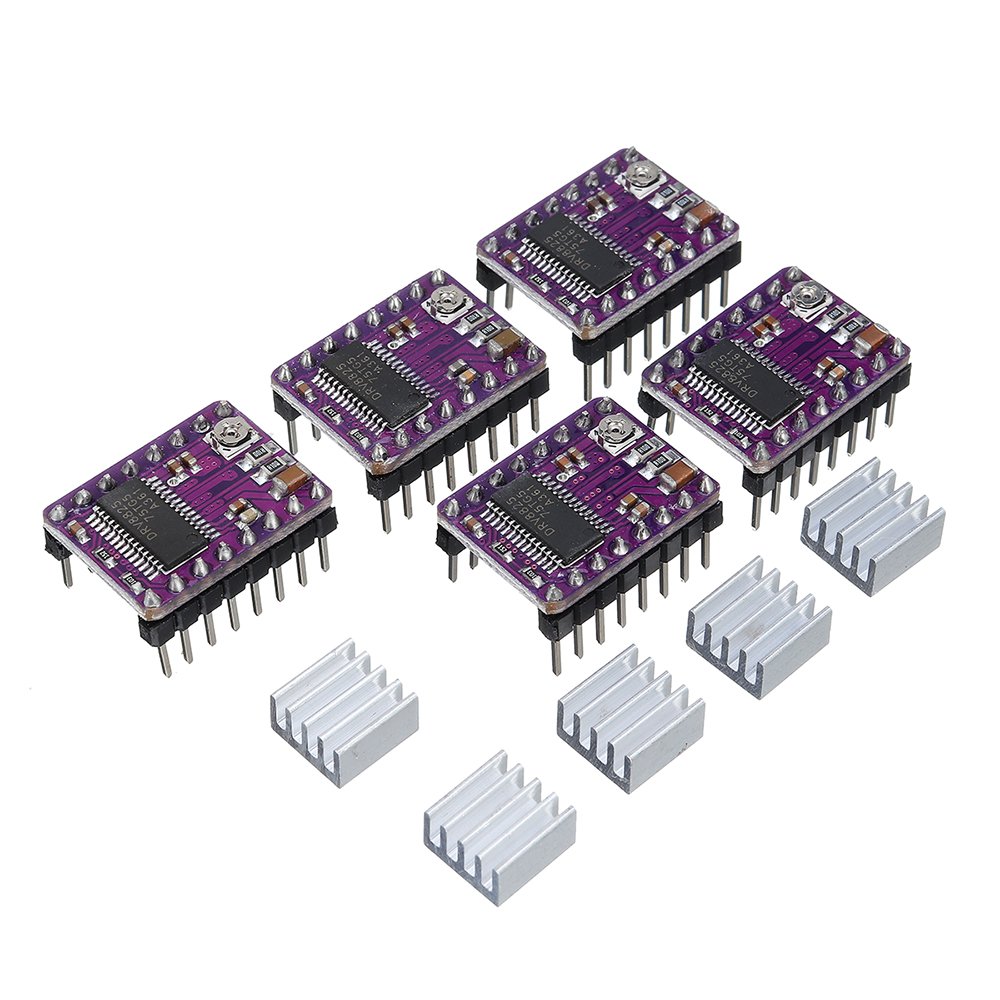

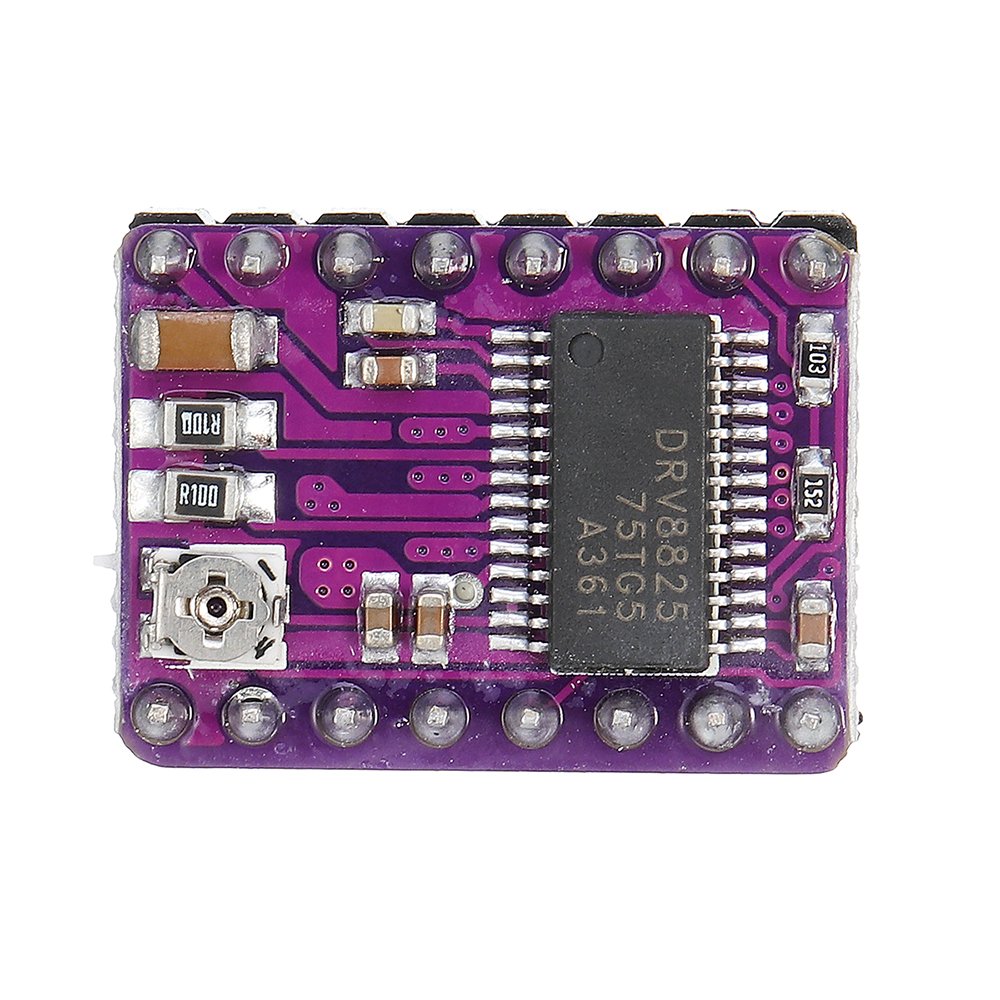

5 x DRV8825 driver

Upgrade Ramps 1.6 Base On Ramps1.5 Control Mainboard + Mega2560 R3 + 5Pcs DRV8825 Kit for Reprap 3D Printer 15

Upgrade Ramps 1.6 Base On Ramps1.5 Control Mainboard + Mega2560 R3 + 5Pcs DRV8825 Kit for Reprap 3D Printer 16

Upgrade Ramps 1.6 Base On Ramps1.5 Control Mainboard + Mega2560 R3 + 5Pcs DRV8825 Kit for Reprap 3D Printer 17
Upgrade Ramps 1.6 Base On Ramps1.5 Control Mainboard + Mega2560 R3 + 5Pcs DRV8825 Kit for Reprap 3D Printer 18
Upgrade Ramps 1.6 Base On Ramps1.5 Control Mainboard + Mega2560 R3 + 5Pcs DRV8825 Kit for Reprap 3D Printer 19

Upgrade Ramps 1.6 Base On Ramps1.5 Control Mainboard + Mega2560 R3 + 5Pcs DRV8825 Kit for Reprap 3D Printer 20
Upgrade Ramps 1.6 Base On Ramps1.5 Control Mainboard + Mega2560 R3 + 5Pcs DRV8825 Kit for Reprap 3D Printer 21

Upgrade Ramps 1.6 Base On Ramps1.5 Control Mainboard + Mega2560 R3 + 5Pcs DRV8825 Kit for Reprap 3D Printer 22
Upgrade Ramps 1.6 Base On Ramps1.5 Control Mainboard + Mega2560 R3 + 5Pcs DRV8825 Kit for Reprap 3D Printer 23

Upgrade Ramps 1.6 Base On Ramps1.5 Control Mainboard + Mega2560 R3 + 5Pcs DRV8825 Kit for Reprap 3D Printer 24
