Description
Features :
1080P WIFI IP camera, It can set up wifi by one key directly, or you also can wired it to network.
Waterproof, Both can use for indoor or outdoor.

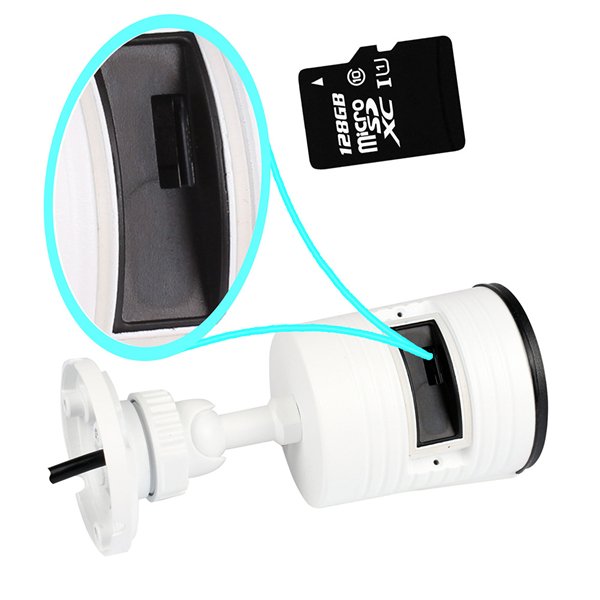

It support 128G TF card recording, with onvif, support NVR recording and computer recording too. (TF card is not including)
Install very easy by one key setting wifi.
It have computer app, IOS app, androip app ect, Your can view the video remotely any time and any where.
Specification :
| Model No: HW0022 | ||
| Ssystem | System Security | Supports there-level account, password, user authority management. |
| OS | Embedded Linux OS | |
| Processor | Hi3518E | |
| P2P (Free) | No need to preset camera, Offer free P2P, Plug&play, Support QR code scanning to view | |
| Onvif Protocol | Support ONVIF Protocol | |
| Multi-device function | Support 12 language remote surveillance, record, alarm, wifi setting etc. | |
| PC client | Support remote multi-devices monitor, record, alarm etc; Support Windows and Mac OS |
|
| Cell Phone View | Self R&D APP, Support iPhone,Android smart phone | |
| TF Card Record | Support max 128GB | |
| Lens | Lens Type | 3.6MM |
| IR-CUT | Build-in IR CUT, no color cast,auto switch when IR on | |
| Video | Image Compression | H.264/MJPEG |
| Sensor | 1/2.7″ Progressive Scan 2MP CMOS | |
| Video Parameters | Brightness, Contrast,Saturation,Exposure,sharpness can be adjusted | |
| Image Frame Rate | 50Hz:25fps/60HZ:30fps (1920×1080) | |
| First Stream | 1080P(1920×1080), 960P1280x960,720P1280x720 | |
| Second Stream | VGA-(640×352),(320×176) | |
| Third Stream | (320×176) | |
| Night Vision | Night Visibility | 6 Led lights,night vision up to 15 meters |
| Lux | IR ON 0 LUX | |
| Alarm | Motion Detect | Support 4 Independent detection areas (Sensitivity can be adjustd 1-100) |
| Alarm Action | Support Email Photo Alert, Snapshot and Record uploaded to FTP | |
| Network | Ethernet Interface | One 10/100Mbps RJ-45 |
| Supported Protocol | TCP/IPHTTPTCPICMPUDPARP, IGMPSMTPFTPDHCPDNSDDNSNTPUPNPRTSP etc. | |
| Online Visitor | Support Max 6 visitors at the same time (First Stream:3 visitors; Second Stream: 3 visitors) |
|
| IP Mode | Dynamic IP address, static IP addressDHCP | |
| Online Visitor | Support Microsoft Win XP/Win7/Win8/ win10/Mac OS. | |
| Browser | Support Internet Explorer 8.0-11.0, FireFox,Google Browser | |
| One key setting Function | Support one key setting function connect WIFI | |
| Wireless Standard | WIFI, 802.11b/g/n | |
| Others | OSD | Support the OSD name, date and time info superpositionOpen/Off |
| Product Type | Outdoor Use | |
| Power | DC5V/2A | |
| Working Temperature | -10~50 °C | |
| Working Humidity | 95% RH | |
| Size | Item: 148 x 60mm (HxW); Packaging: 175x78x95 mm (LxWxH) | |
| Weight | N.W.: 289g G.W.: 461g (Note: Actual Weight Final) | |
Package includeds :
1 x Wanscam HW0022 1080P IP Bullet Camera
1 x EU Plug Power Supply (Also come with an adapter according to your country)
1 x Network Cable
1 x Set of Installation Accessories
1 x User Manual

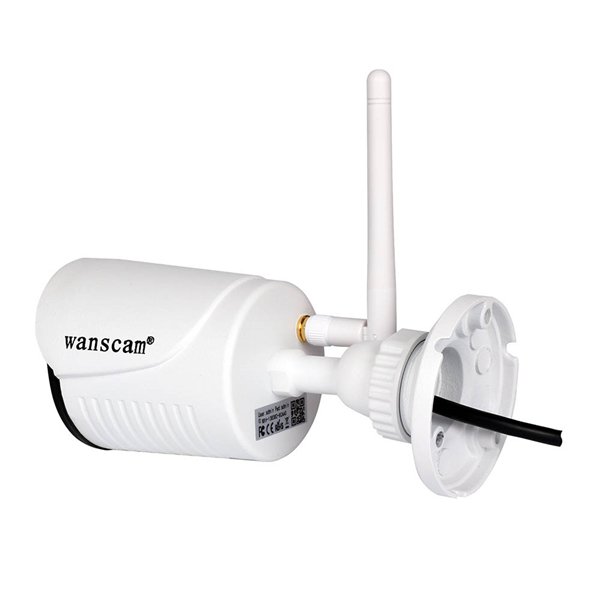

Details pictures :
,
,
,
,
,
,
,
,
,
