1. Brand Name: Wavlink 2. Model Number: WL-WN570HN2 3. Function: Firewall 4. With Modem Function: No 5. Wi-Fi Transmission Standard: 802.11b 6. Max. LAN Data Rate: 300Mbps 7. Wi-Fi Supported Frequency:2.4G 8. Standards And Protocols: Wi-Fi 802.11g,Wi-Fi 802.11b,Wi-Fi 802.11n 9. Supports WDS: Yes 10. Supports WPS: Yes 11. Type: Wireless 12. WAN Ports: 1×10/100Mbps 13. VPN: No 14. Voltage: 100-240V 15. Operating temperature: -30 ~ 70°C (-22 ~158°F) 16. Storage temperature: -40 ~ 70°C (-40 ~ 158°F) 17. Voltage: 100 – 240 V 18. Support 2.4 GHz 19. Standard: 802.11b/g/n 20. Maximum WLAN security with WPA2,WPA and WEP (128/64)
1. Weatherproof enclosure with IP65 certification: Waterproof and dustproof enclosure and high temperature durability material protect it against harsh outdoor conditions 2. 15KV ESD protection: Built-in ESD protection circuit prevents damage from high electrostatic voltages and ensures reliable operation 3. 4KV lightning protection: Built-in lightning protection prevents storm/lightning surges 4. Flexible installation with Power over Ethernet (PoE): The PoE power supply simplifies the setup by combining your power and data connection into a single cable. The DC adapter provides power and network access through your home/business router or network connection and combines them into a single RJ-45 connection. This makes outdoor deployment simple and fast.

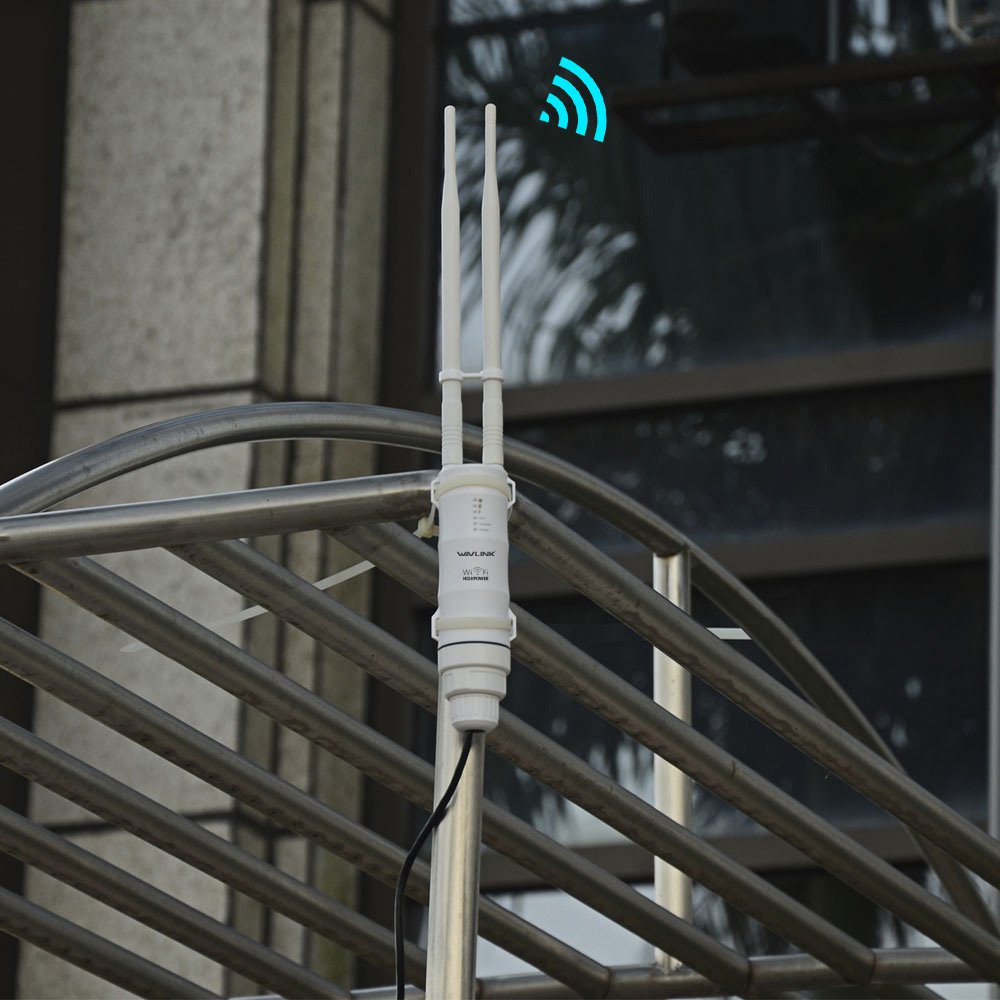

Reminders: 1) Select the wireless network with a signal strength greater than 70% to get the most reliable connection. 2) The outdoor antennas should be installed at a height of 2 meters above the roof, or in a high open place for better reception. 3) Passive PoE power supply though Ethernet cable does not work over 60 meters.
1 x Outdoor Wi-Fi range extender 2 x Omni antenna 1 x Power adapter 1 x POE converter 1 x RJ-45 networking cable 1 x Main body holder 1 x Screw fitting 2 x Cable ties 1 x Screw fitting kit 1 x Quick installation
