Build-in industrial micro controllerBig LCD display, all adjustable parameterFully 4-stage PWM charge managementBuild-in short-circuit protection, open-circuit protection, reverse protection, over-load protectionDual mosfet reverse current protection





Size: Approx. 17x10x4.6cm/ 6.69×3.94×1.81″Batt Voltage: 12V/24V autoCharge Current: 20ADischarge Current: 20AMax Solar Input: <50VFloat Charge: 13.7V (default, adjustable)Discharge Stop: 10.7V (default, adjustable)Discharge Reconnect: 12.6V (defaul, adjustable)USB Output: 5V/3ASelf-consume: <10mAOperating Temperature: -35~+60℃

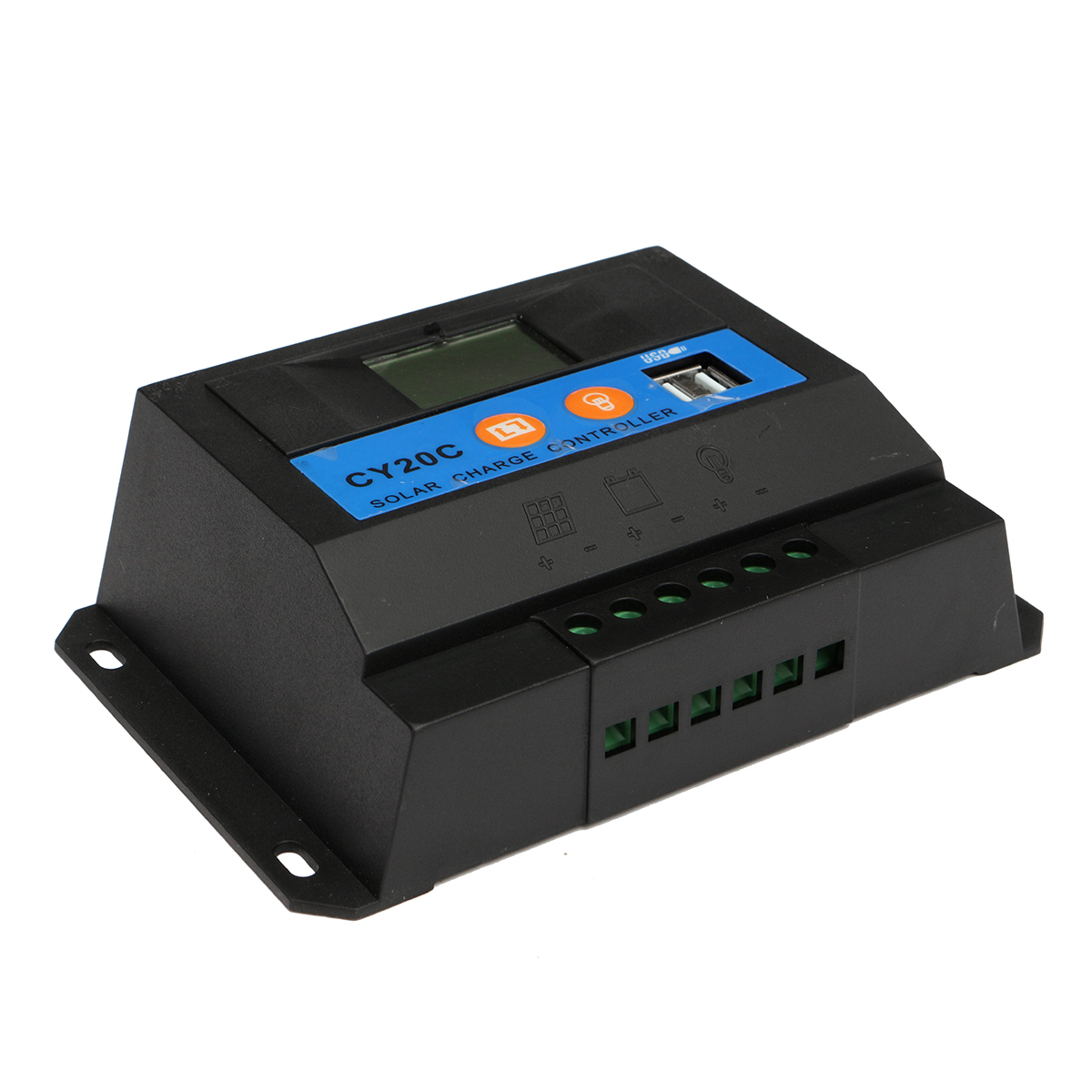

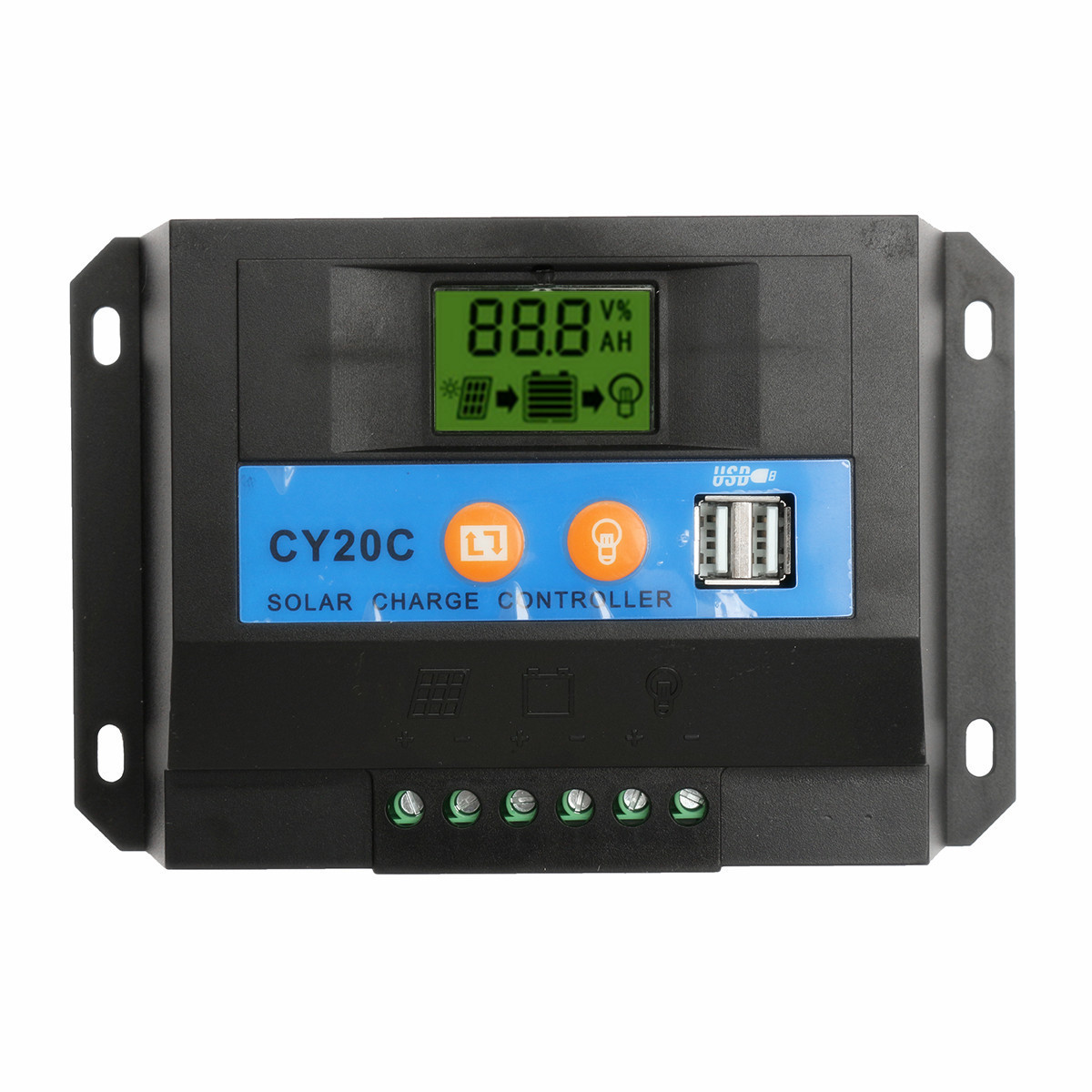

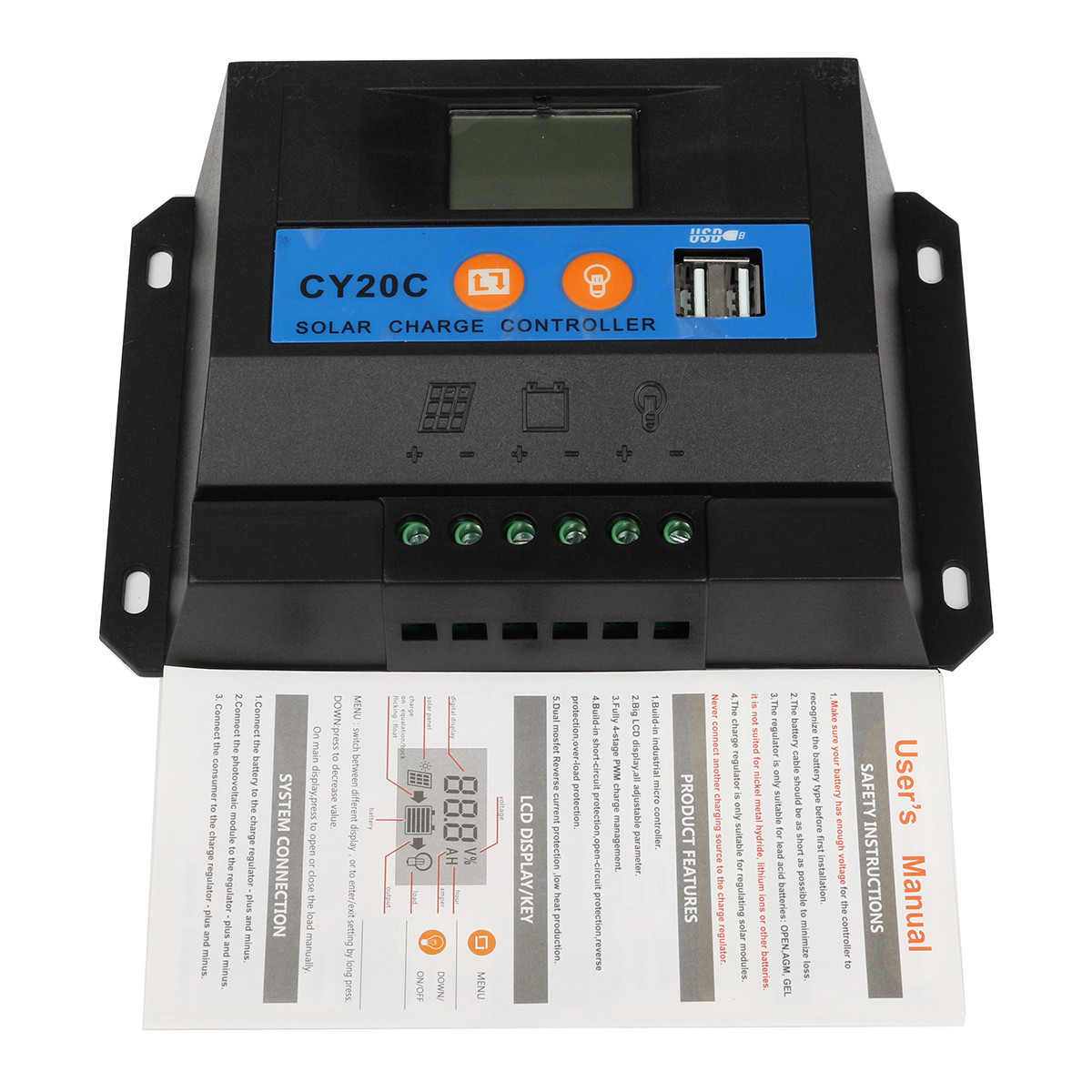

1 x LCD Solar Charge Controller Panel Battery Regulator1 x User Manual



,,,,,,,
