Description
Features :
1.H.265 2MP HD 1080P.
2.Support smart analysis function:
Target Count—Calculating body or object flow.
Object Left/Lost—It will issue an alarm when items are left or lost.
Area Detection—Detecting target in the area.
Line Crossing—It will issue an alarm after crossing the warning line.
3.Support Day/Night, IR distance 15m, make your night view as daytime.
4.Support Motion Detection/app push.
5.Support 3D Digital Noise Reduction.
6.Support IP66 waterproof.
7.Supprt max to four private mark areas.
8.Support CMS viewing, APP viewing and Brower viewing.
9.Support onvif, compatible with other devices.
Specification :
| Model | ESCAM QH002 | |
| Camera | ||
| Sensor | 1/2.9″ CMOS | |
| Effective Pixels | 2MP | |
| Electronic Shutter Speed | Auto/Manual, 1/25~1/10000s | |
| Minimum illumination | Color: 0.01Lux@F1.2; B&W: 0Lux@F1.2(IR on) | |
| Lens | 3.6mm fixed lens | |
| Angle of View | 75.7° | |
| Functions | ||
| Day/night switch | 15M (6 x IR Lamps) | |
| White Balance | Auto white balance | |
| BLC | Support BLC | |
| S/N Ratio | ≥50db (AGC closed) | |
| Digital noise reduction | Support 3D noise reduction | |
| WDR | Support D-WDR | |
| Motion detection | Support motion detection | |
| Private shelter | Support 4 zones | |
| OSD | Support OSD setting | |
| Smart Analysis | Target Count, Object Left/Lost, Area Detection, Line Crossing | |
| Video | ||
| Compression | H.264/H.265 | |
| Resolution | Mainstream: 1080P(1920*1080) | |
| Substream: D1(704*576), VGA(640×480) | ||
| Video frame rate | 1-20FPS | |
| Biterate | 16Kbps-4Mbps continuously adjustable, support CBR / VBR | |
| Video adjustment | brightness, saturability, chromacity adjustment | |
| Audio | ||
| Audio | Not support | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| IP type | Dynamic IP and Static IP | |
| Network agreement | TCP/IP, DHCP, HTTP, HTTPS, NTP, DNS, RTP , RTSP | |
| Access protocol | Support ONVIF | |
| Max user qty | 4 | |
| Client | iOS, iPad, Android, Windows PC | |
| General | ||
| Power supply | DC12V 1A | |
| Power Consumption | <6W | |
| Working Environment | -20°C to +60°C, 10%~90% | |
| Waterproof | IP66 | |
| Dimension | 190mmx65mmx60mm | |
| Weight | 0.25kg | |
| Package Dimension | 220mmx105mmx100mm | |
| Package Weight | 0.46kg | |

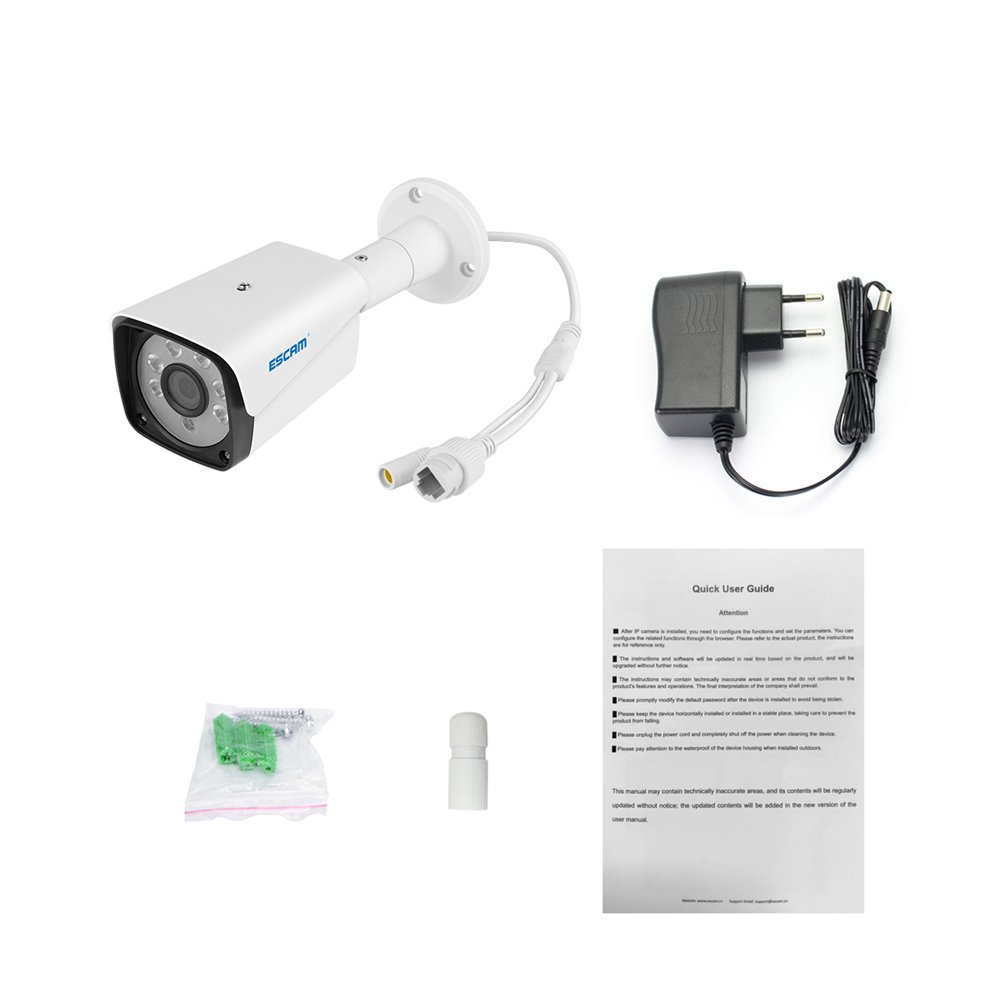

Package includeds :
1 x ESCAM QH002 IP Camera
1 x Power adapter
1 x Set of Screws
1 x Waterproof hat
1 x User Manual
Details pictures :
