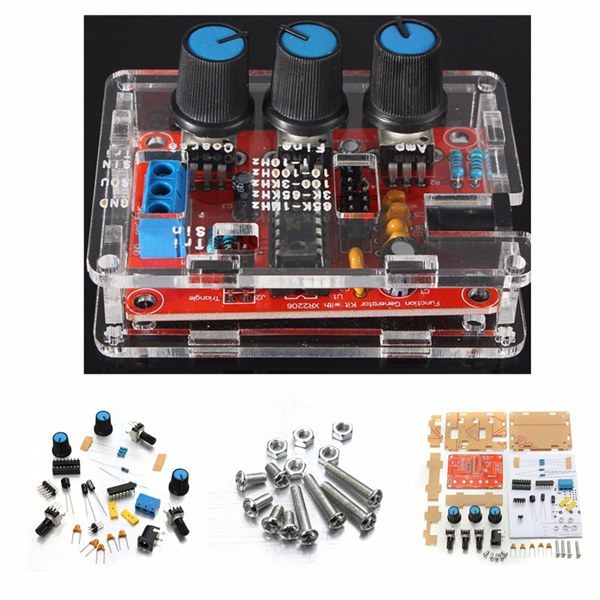

Geekcreit?® XR2206 Function Signal Generator DIY Kit Sine Triangle Square Output 1HZ-1MHZ

$22.14 AUD

or 6 weekly interest-free payments from $3.69 with Laybuy what's this?

In stock

Optional product install assistance
Estimated delivery between 2021/10/19 - 2021/10/26
Add to Wishlist
Add to Wishlist
SKU: C122-1206339 Category:

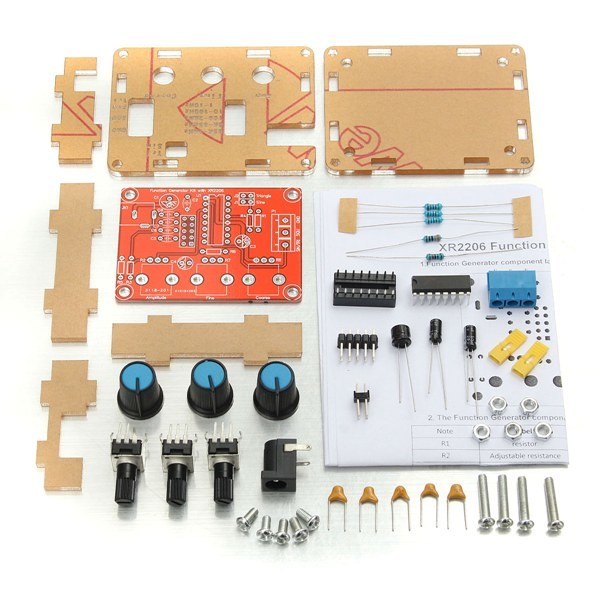

Specifications:Voltage supply: 9-12V DC InputWaveforms: Square, Sine & TriangleImpedance: 600 Ohm + 10%Frequency: 1Hz – 1MHzSINE wave:Amplitude: 0 – 3V at 9V DC inputDistortion: Less than 1% (at 1kHz)Flatness: +0.05dB 1Hz – 100kHzSQUARE wave:Amplitude: 8V (no load) at 9V DC inputRise Time: Less than 50ns (at 1kHz)Fall Time: Less than 30ns (at 1kHz)Symmetry: Less than 5% (at 1kHz)TRIANGLE wave:Amplitude: 0 – 3V at 9V DC inputLinearity: Less than 1% (up to 100kHz) 10mAPackage included:1 x XR2206 Function Signal Generator DIY Kit

Weight0.07 kg
MPN

1206339
