Description

Long Focus Portable Interactive Whiteboard Interact Trace Board system with Stylus Pen and Pointer



Oway portable interactive whiteboard WB3100 is designed to deliver superb agility and reliability in interactive writing on all types of projection screen. The supplied multi board software records every pen stroke you make on your board, so you don’t lose any of your important ideas.





Specifications:

For Multi points, please noted the whiteboard software must support Windows OS Native Touch

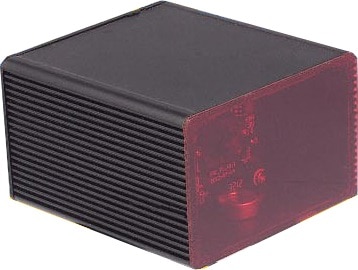

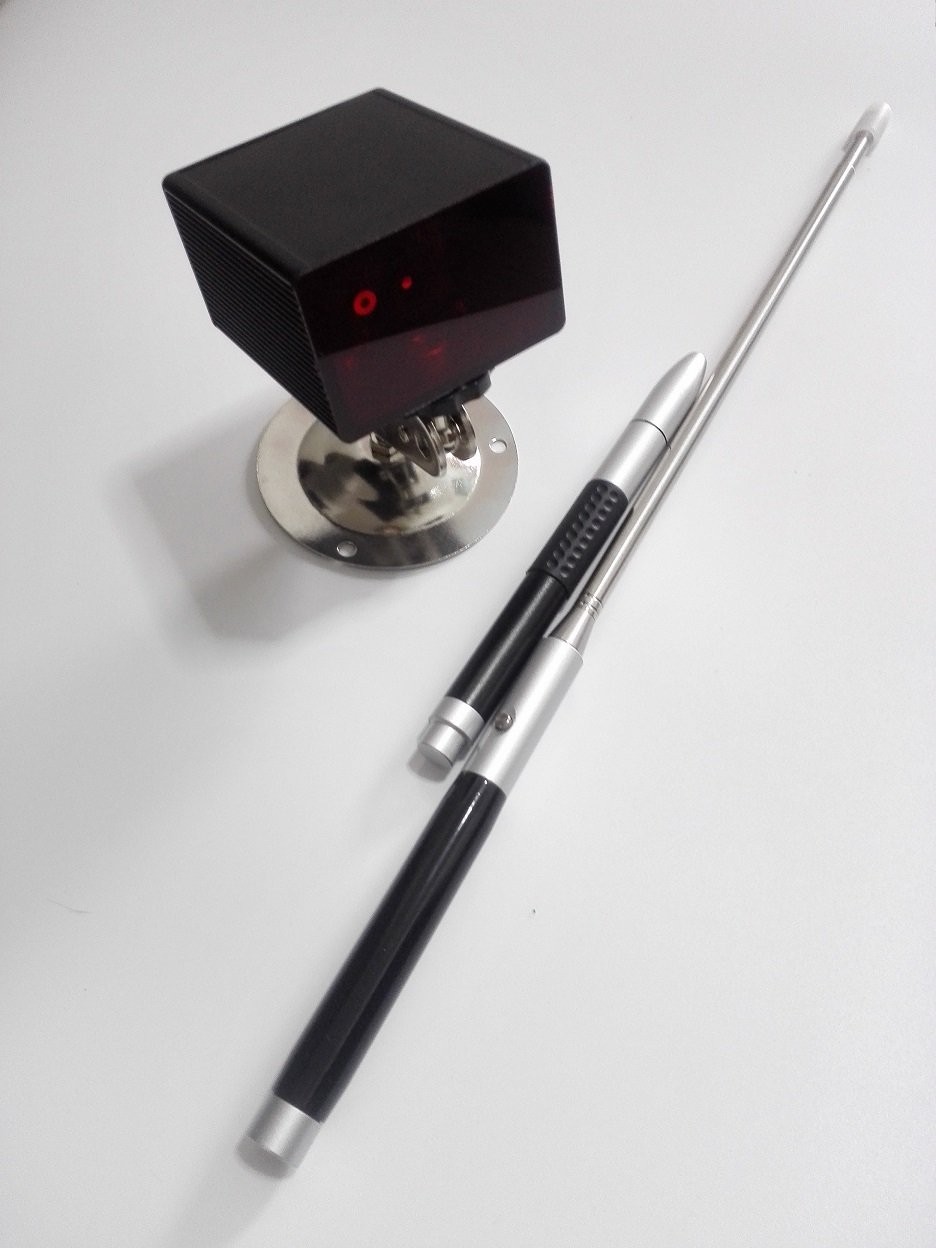

Signal Receiver

Movement Detection                                    Infrared

Active Area (max projection size)                150 inch diagonal

Active Area (horizontal angle)                      33 +/- 2 degrees

Active Area (vertical angle)                          0-30 degrees

Calibration Technology                                 Infrared

Positioning Active Distance(from projection screen) : 1.5 ¨5m

Connectivity Interface:                            1 x USB Cable

Power Requirement                                      4.5 ¨C 9 W (from USB port)

Power Consumption                                      < 1.5 W

Size                                                               72x66x42mm

Weight                                                           135g

Color                                                              black



Stylus E-Pen

Movement Detection Technology                 LED Light

Power Requirement                                     3 V CR12 3A x 2

Pen Body Dimension                                   13.5cm (length); 1.0-2.0cm (diameter)

Pen Weight                                                   66g (with battery)

Net Weight                                                    42g



Extendable Pointer

Movement Detection Technology                             LED Light
Power Requirement                                                 3 V CR12 3A x 2
Trigger methods of pointer                                      Button
Pen Body Weight                                                     85g (with battery)
Pointer Extendable Length                                34.5-67.6cm (length); 1.0-1.3cm(diameter)
Net Weight                                                              61g



System Requirements

OS Required         Microsoft Windows xp, vista , Win7,8,10, Linux ubuntu 14.04,16.04, Debian 8

Processor Type                                            Intel Pentium or above

RAM Size                                                     128 MB

Min Hard Drive Space                                   30 MB



Installation distance:

WB3100                                   Projection Ratio: 1.28

Projection Size(4:3)               Recommend Installation Distance

70 inch                                     2200mm

80 inch                                     2600mm

100 inch                                   3200mm

120inch                                    3800mm





Installation Options:





Special Features with multi points touches (Multi-user can write at the same time)

1.Technology

Adopting infrared high speed tracking technology.

2  .Various features:

Strong adaptability Easy installation

Supporting big screen to 150″

Intense anti-interference Low cost performance.

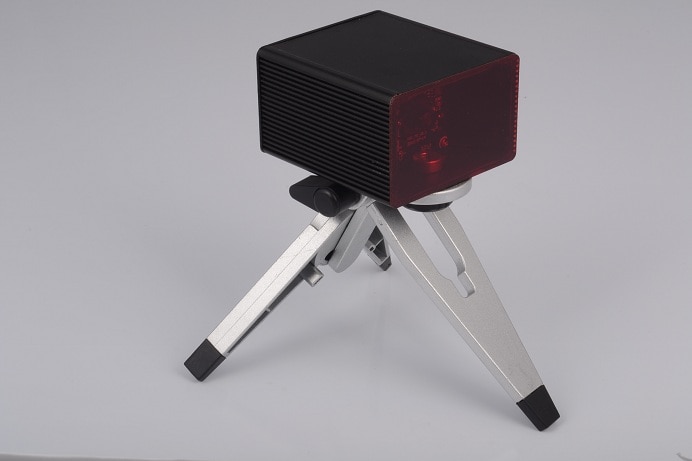

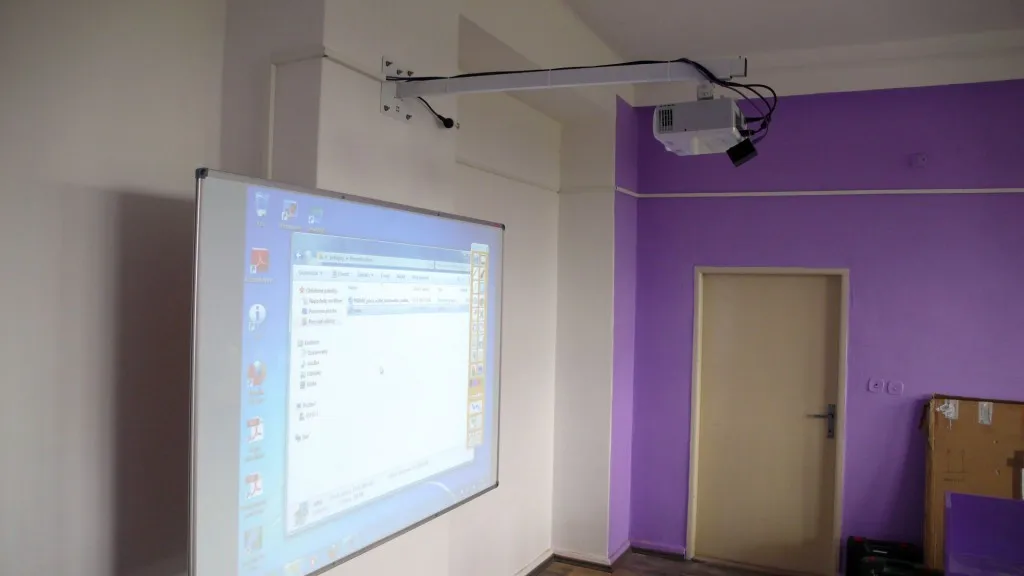

3.Various installation ways: Put on the desk or projectors Ceiling-mount installation

4.USB Cable can be extended to 20M (MAX).

5.Quickly disassembled

The storage and maintenance are very easy.

6.High response speed

7.High resolution

Makes it have excellent operating precision and nearly perfect writing track.

8.Strong adaptability

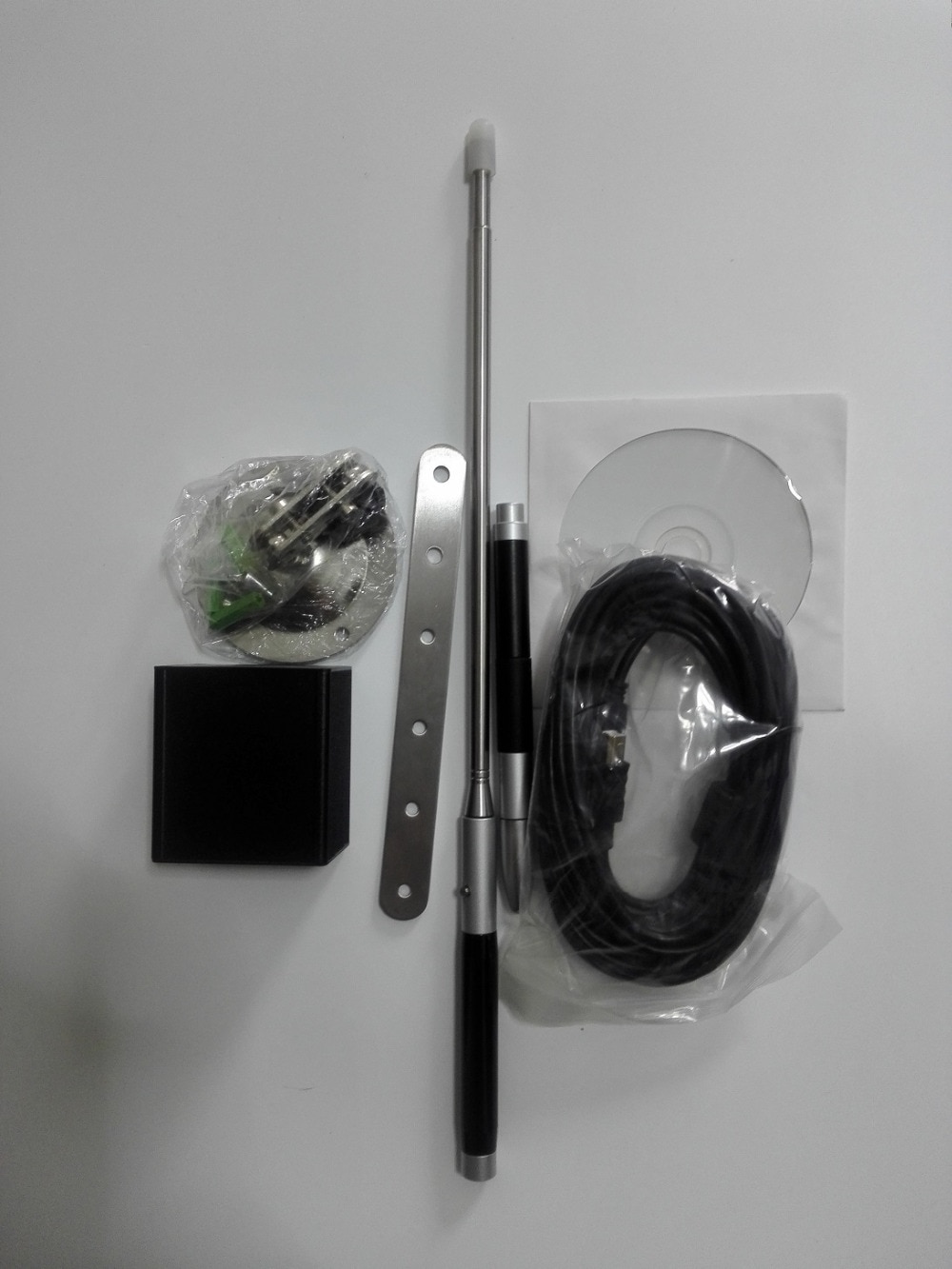

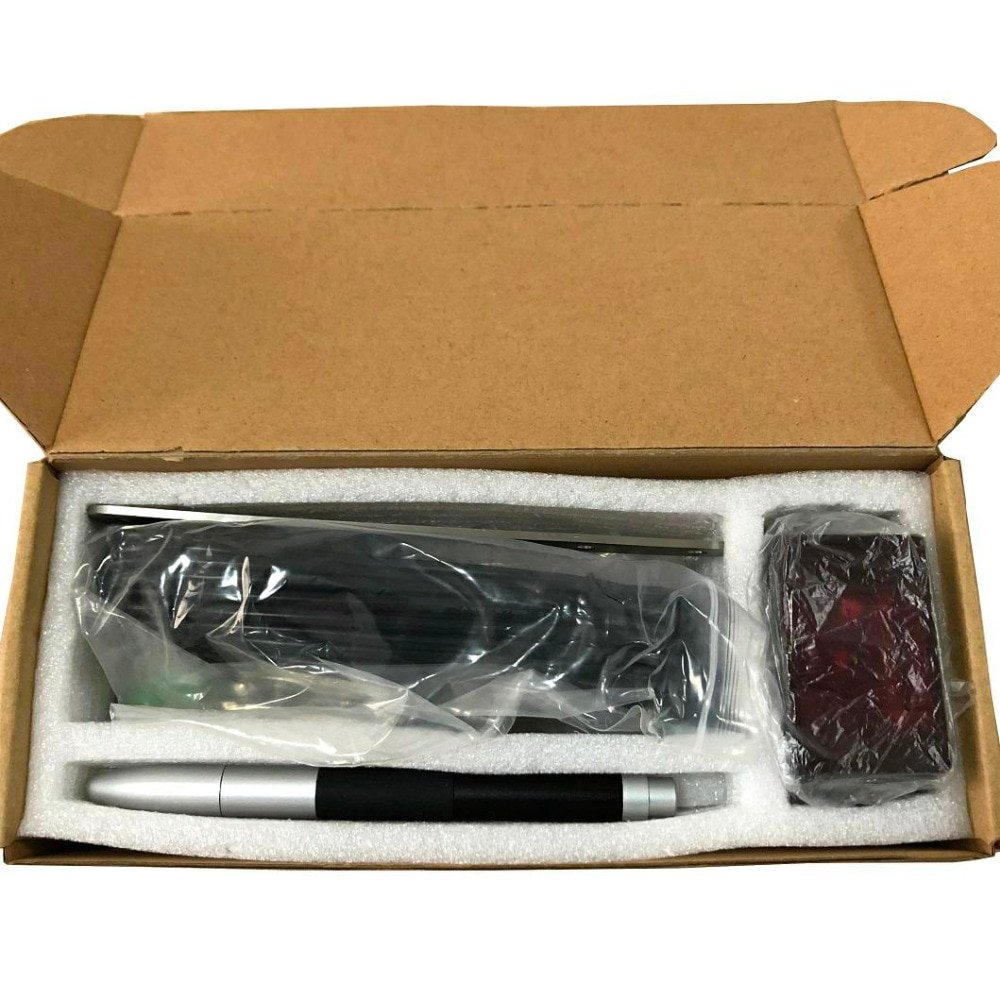

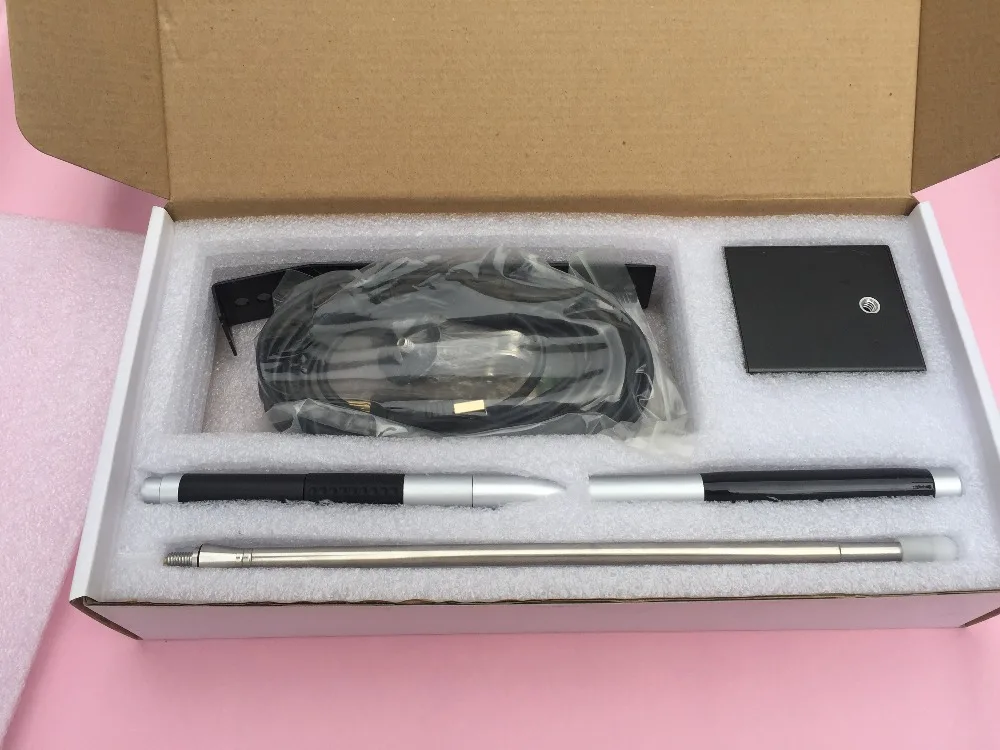

Package & Accessories:

  WB3100 measurements : 32X16X12(cm), gross weight: 0.8KG

   WB3100 matched with two IR pens.



Item	Quantity	Image
Square signal receiver	1
Infrared Pen	1
CD	1
USB cable:7 m	1
Bracket & Screws	1



































































Applications:

Presentations and business review

Video conference and collaboration

Education and training

Exhibitions and conferences

Process control and plant monitoring

Military and government briefings

Customer retail sites

Gaming and entertainment

Hospitals
