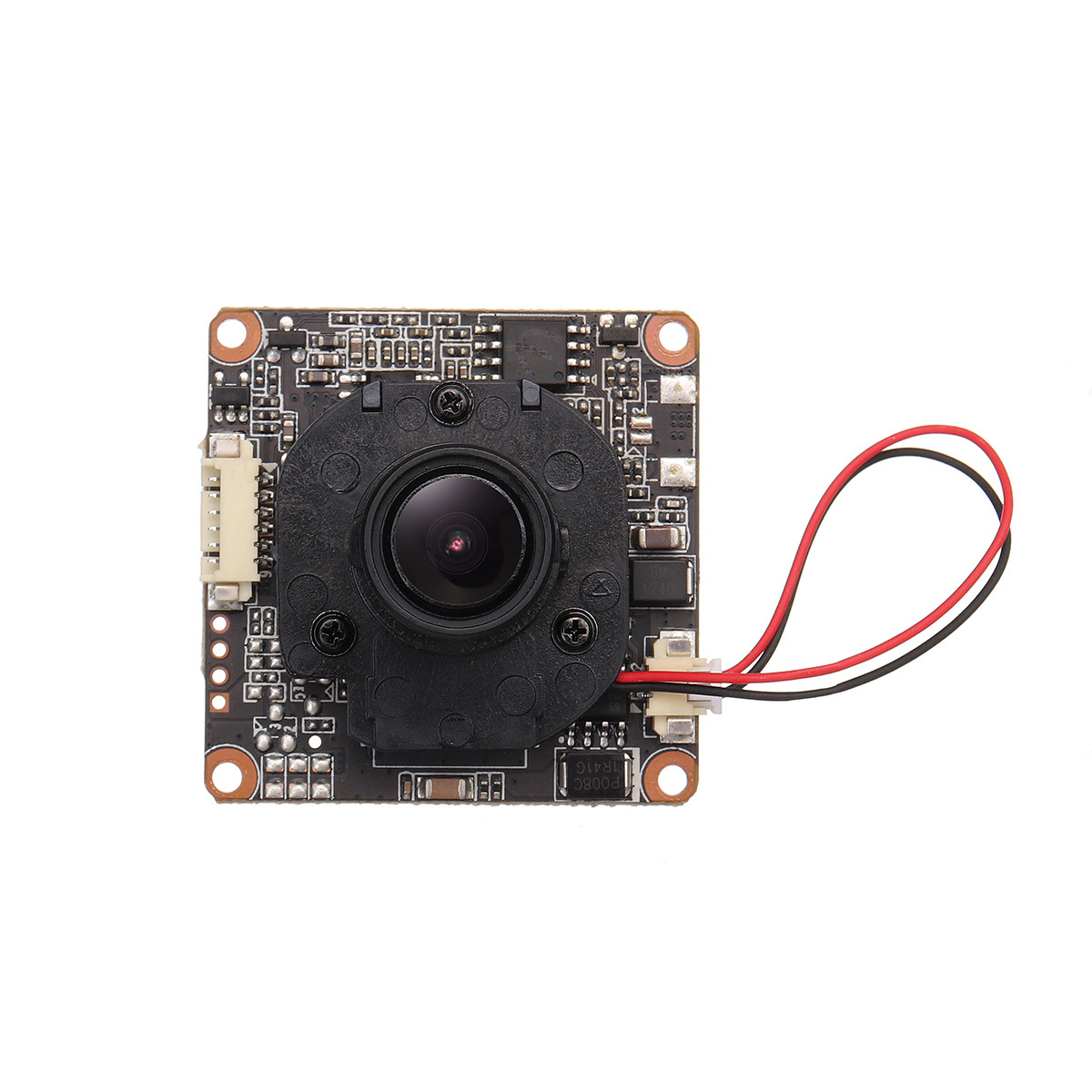

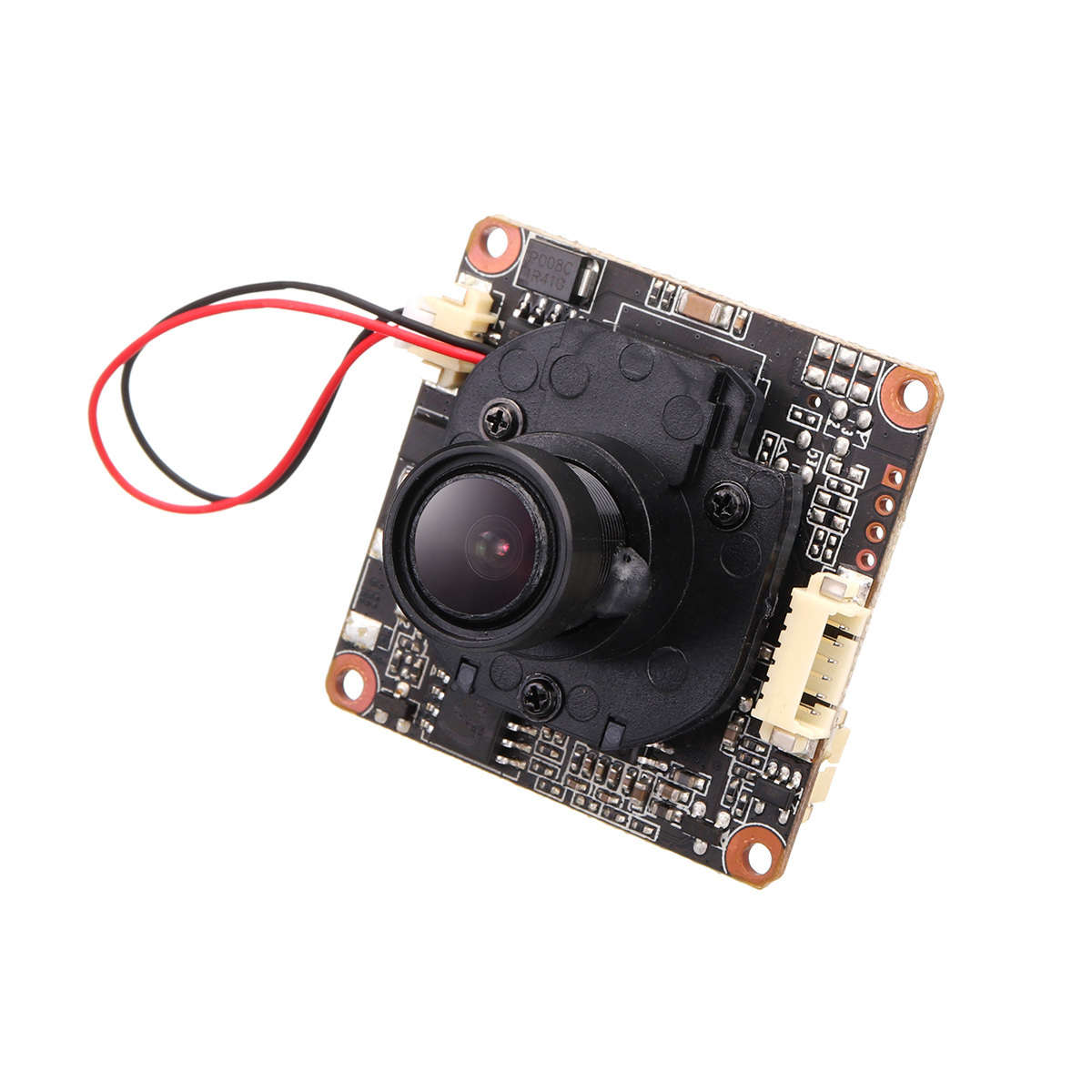

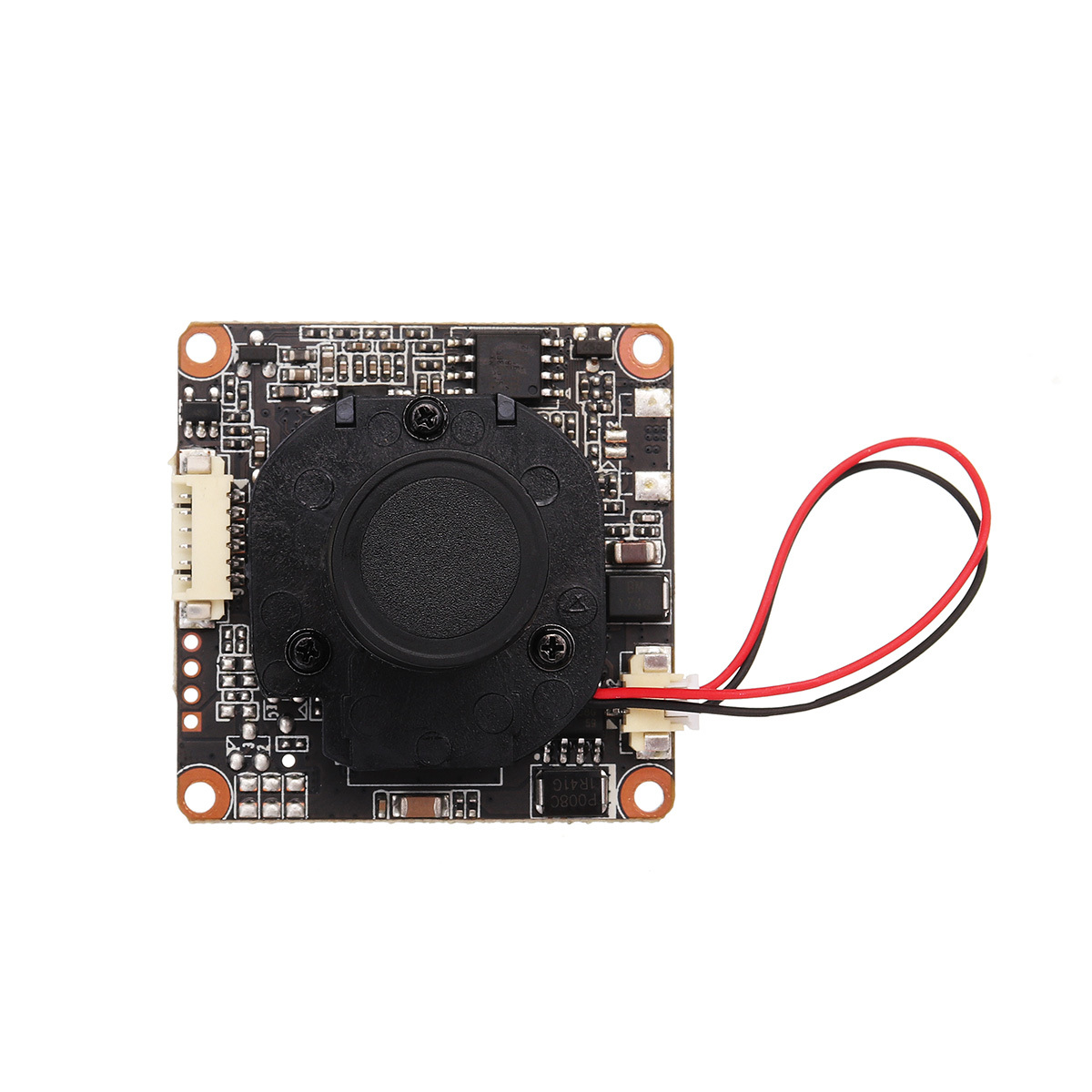

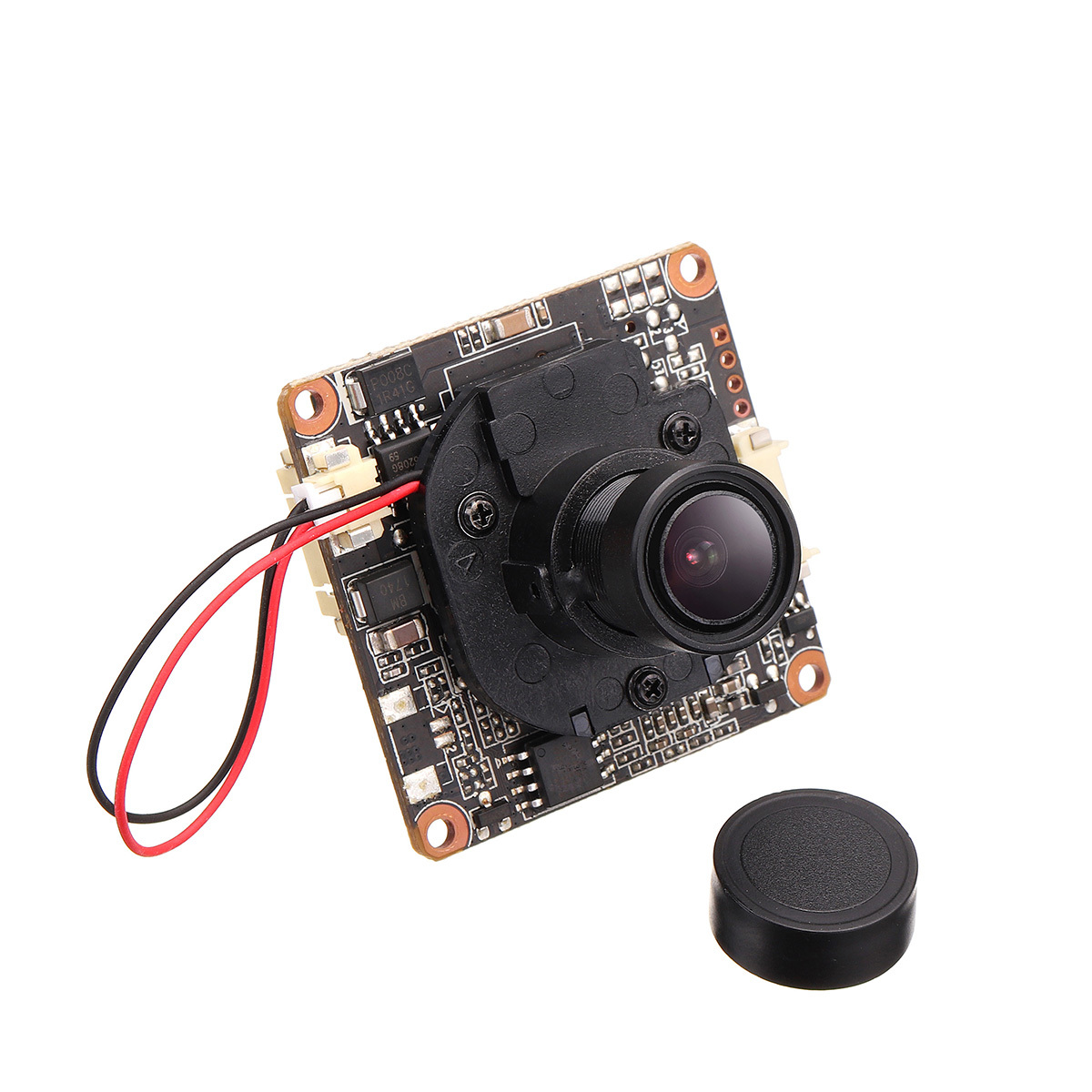

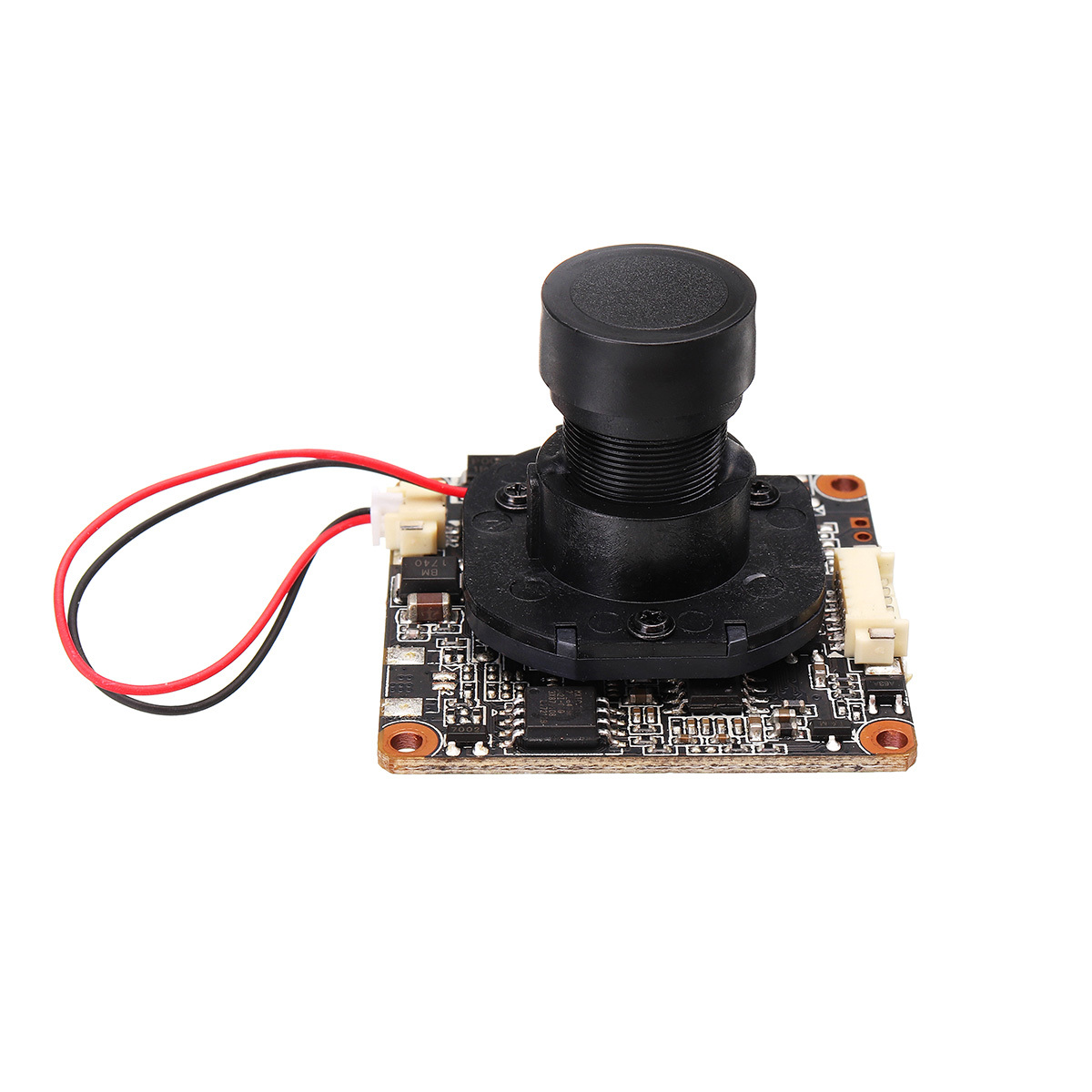

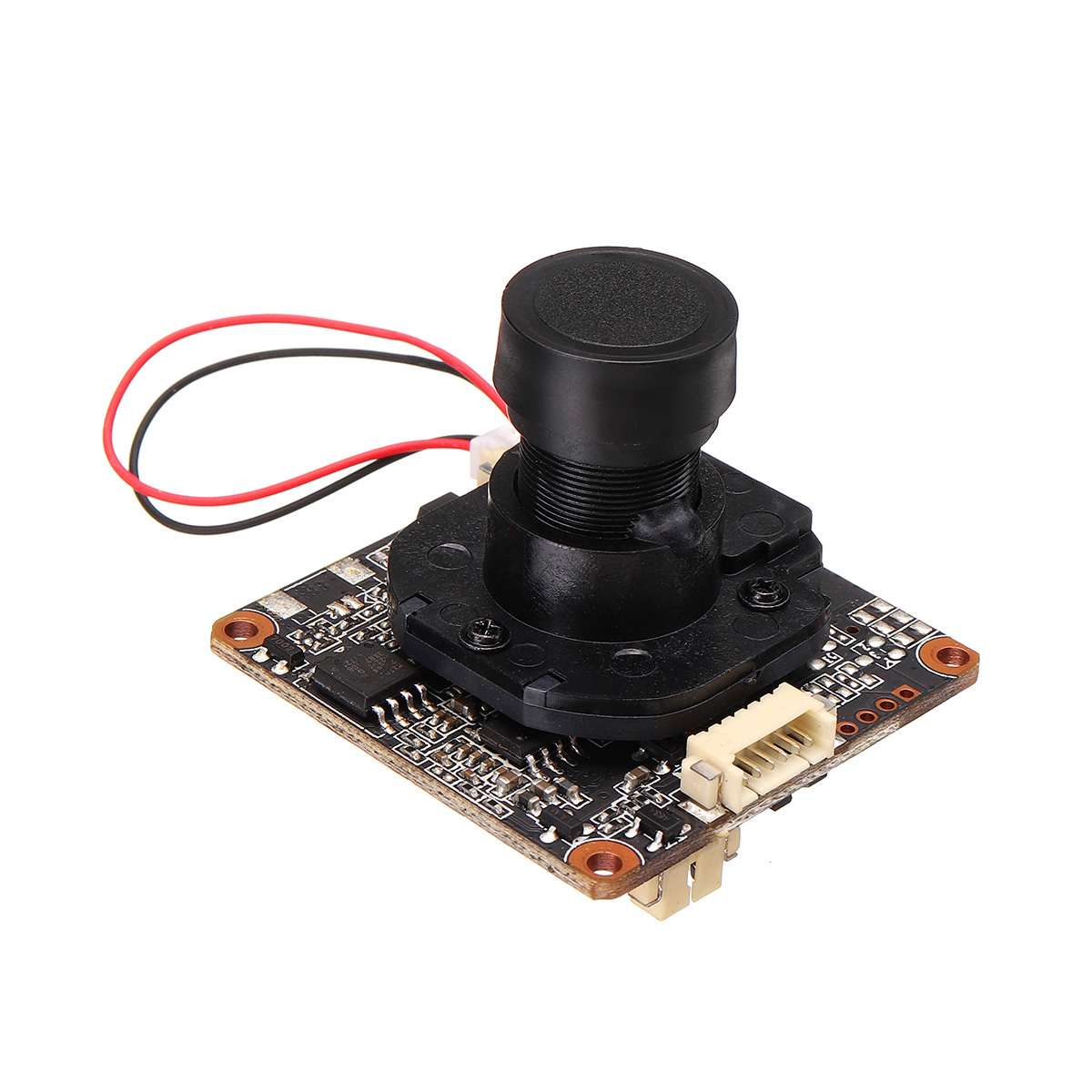

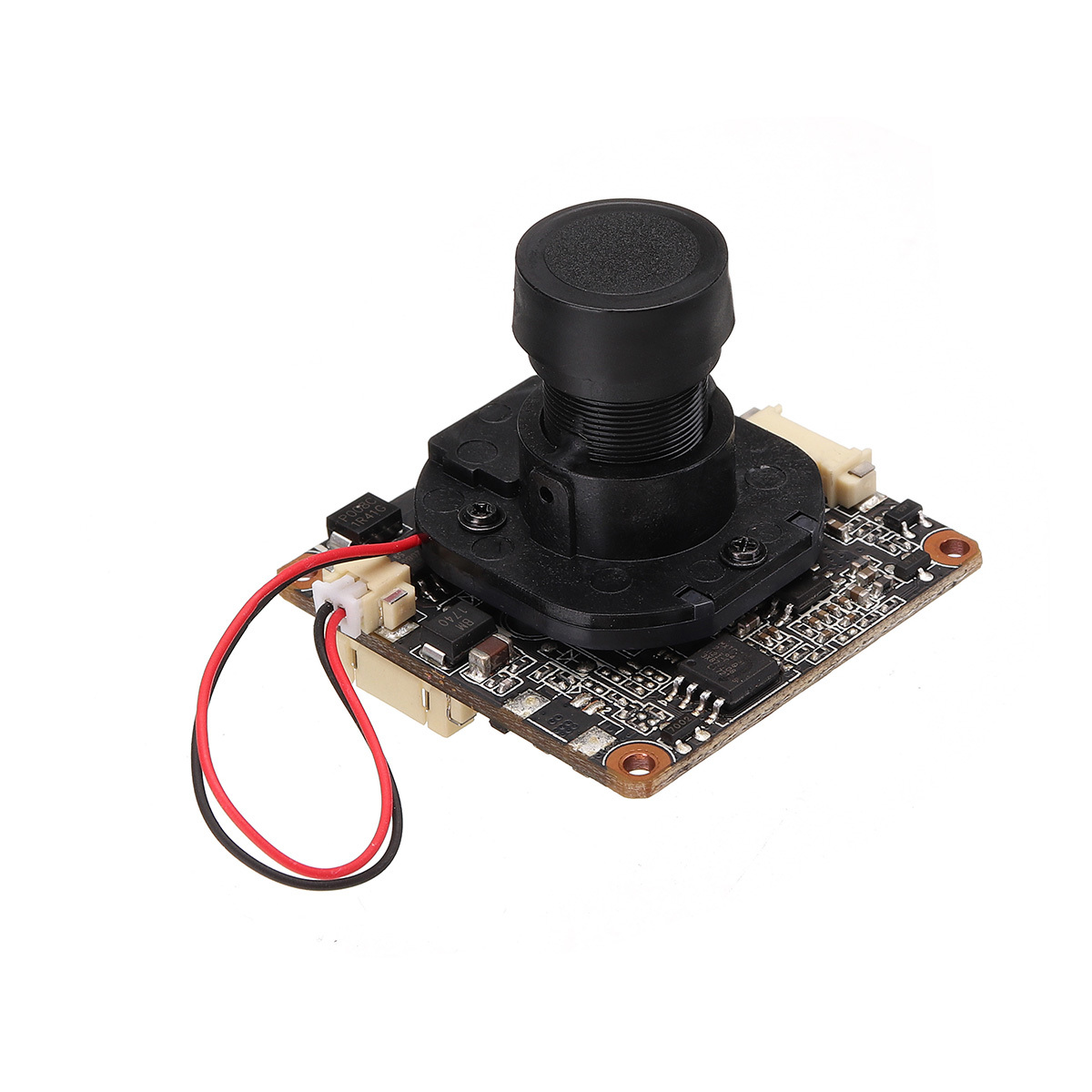

Mstar 200 Million 1080P Webcam Module H.265 With Audio Network Module DC12V 1.2W

or 6 weekly interest-free payments from $5.37 with Laybuy

$29.34 AUD

Only 2 left in stock

Estimated delivery between 2024/04/23 - 2024/04/30
Add to Wishlist
Add to Wishlist
SKU: C122-1293210 Category:

Description

Feature:

2 million 1080P 38X38 single board
2 million 1080P entry star module
Support Haikang private agreement
Support P2P, cloud storage
Good night vision performance
Computer client:seetong
Mobile App: Danale
Specification
Hardware Structure MSTAR MSC313E + 200-megapixel 1/2.7″ Low-light CMOS SC2135
Minimum Illumination Color 0.1 Lux@F1.2, black and white 0.005 Lux@F1.2
Wide Dynamic Range Digital Wide Dynamic
Signal to Noise Ratio ≥50dB
Image Quality Saturation setting, contrast setting, sharpness setting, brightness setting, auto white balance, manual white balance setting, backlight compensation setting, strong light suppression setting, auto exposure, 2D/3D noise reduction intensity setting, fog setting , WDR mode strength settings
Video Features Masking, OSD Character Overlay, Motion Detection
Interface Audio linear input and output.
Coding Format H.264 Main Profile/High Profile,
H.265/HEVC Main Profile/High Profile
Image Resolution 2 million main stream: 1920*1080, 1-20 frames/second
1.3 million main stream: 1280*720, 1-30 frames/sec
Substream: 640*480, 640*360, 1-30 frames/sec
Image Mode Support corridor mode, horizontal flip and vertical flip
Video Compression Rate 32Kbps-3.5Mbps continuously adjustable, support CBR / VBR
Audio Code G.711/AAC audio codec standard, support two-way voice intercom function, support audio and video synchronization
Network Interface 10/100M adaptive Ethernet interface, lightning protection design
Protocol Support Supports HTTP/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/ONVIF/P2P network protocols and supports Haikang’s proprietary protocol
Digital Storage The memory card is not supported. Supports multiple storage mechanisms for back-end storage
Mobile Client Support Windows Mobile, iPhone, iPad, Android platform
Function 1/2.7″ SC2135 CMOS sensor, using the latest MSTAR MSC313E program, standard single-layer 38mm * 38mm, support day and night conversion infrared sensor, support for photosensitive resistor signal linkage
General Parameters DC12V/POE, 1.2W Max, 38x38x15mm (without lens), 60g net weight

Package includes:1 x Webcam Module

Additional information

Weight 0.02 kg
MPN

1293210
