7″ Rugged Android Tablet with 1D 2D Bar code Scanner Reader Handheld Industrial Computer PDA Scanner NFC RFID Tablet

or 6 weekly interest-free payments from $99.96 with Laybuy what's this?

$659.76$1,191.55 AUD

Clear
Estimated delivery between 2022/07/07 - 2022/07/14
Add to Wishlist
Add to Wishlist
SKU: 20895 Category:

Description

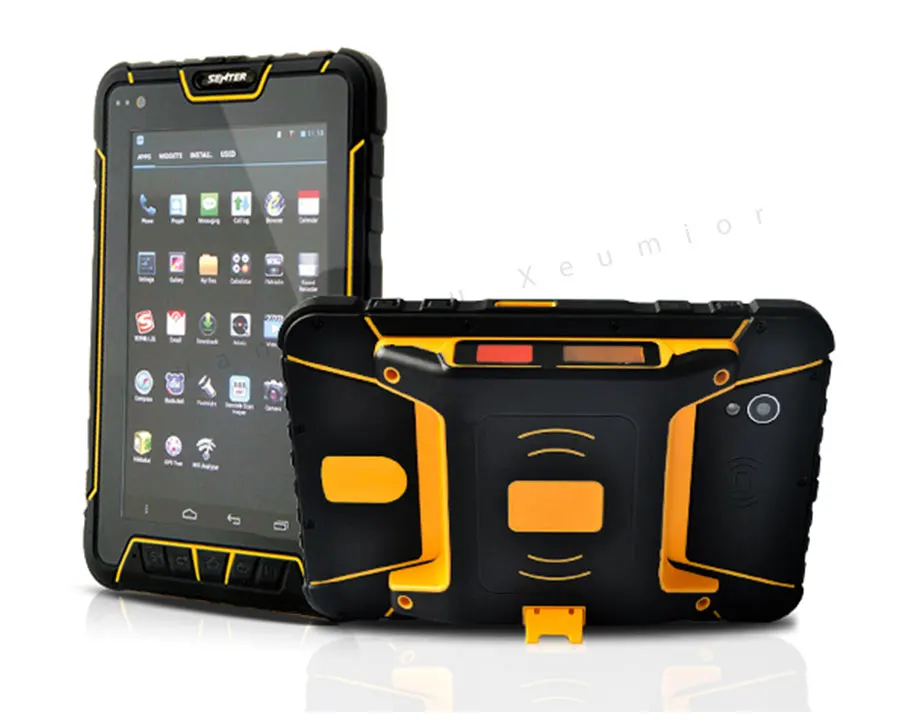

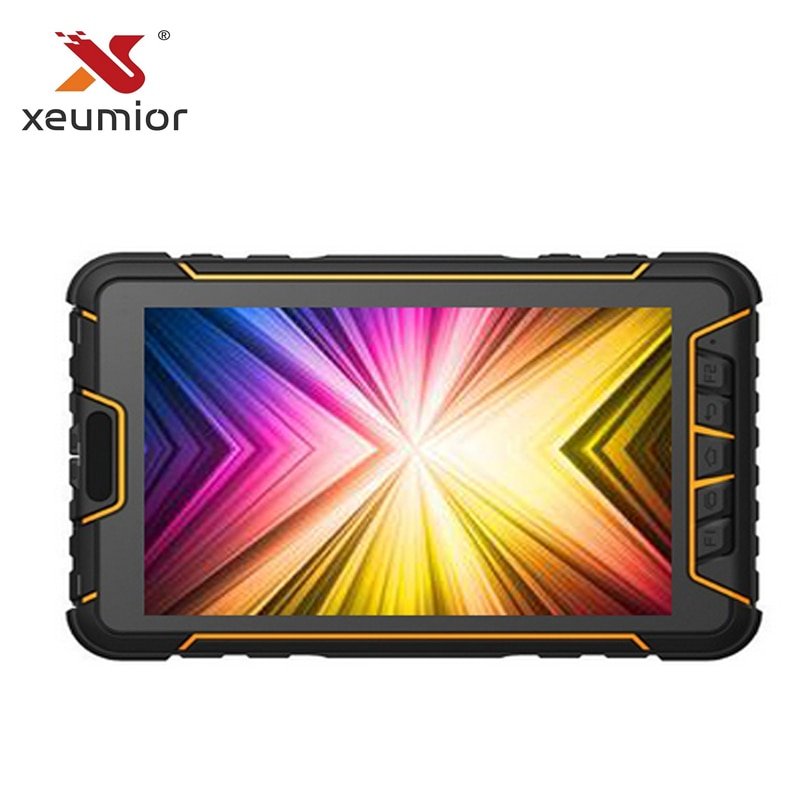

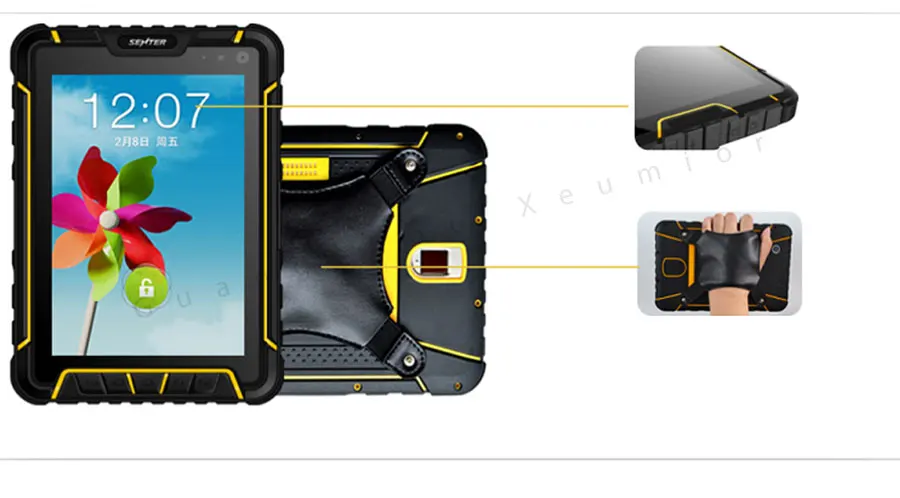

7″ Rugged Android Tablet with 1D 2D Bar code Scanner Reader Handheld Industrial Computer PDA Scanner NFC RFID Tablet



1.WIFI

2.Bluetooth

3.GPS

4.Camera

5.RFID/HF

6.3G/4G WCCMA/GSM



SM-907(1)_02SM-907(1)_03SM-907(1)_05SM-907(1)_07SM-907(1)_08SM-907(1)_11SM-907(1)_12SM-907(1)_13SM-907(1)_14SM-907(1)_15

Advanced system: Android 5.1 operating system; quad core 1.2 GHz CPU; RAM 2G ROM 16G, Micro SD 32G
— Three-proof design: IP67 three protection grade(waterproof, dustproof and shockproof), drop resistance from 1.2m
— Visible under strong light; 7 inch LCD screen, 1280×800 IPS capacitive touch screen
–Googleplay
— Powerful function: multi function information acquisition configuration (1D/2D bar code scanning, LF/HF/UHF RFID
reader, fingerprint identification)
— Multi communication modes: 3G/4G, WIFI, Bluetooth and many wireless communication modes
— Strong battery life: 3.7V, 7200mAh, more than 600 hours of continuous standby
— Support professional GPS: support differential data or common GPS(GlONASS)
— Support jacket extension: satisfy custom applications from customers
–Certification: CCC/CE/ROSH/MIL-STD-810G


General Specifications
Operating System Android 4.4 OS
CPU MSM8916, A53, 4 core CPU, 1.2GHz
RAM
RAM: 2G
FLASH: 16G
Extended Storage Micro SD, Maximum 32G
USB port 5 pin MicroUSB; support OTG (U-disk/Mouse/Keyboard/USB Ethernet cable)
OTG
Support, through OTG can meet 100M network port, network card setup, PPPoE dial-up, web browsing. Support OTG extend
RS232 serial port
External port Charge port, headphone port
Protection Grade
Industrial Protection Grade IP67
Drop Grade Drop resistance from 1.2m
Wireless Communication
Bluetooth Support 4.0
GPS Support GPS, DBS, GLONASS and professional GPS,Ublox; GPS and Beidou (alternative)
WIFI Support IEEE 802.11b/g/n
4G FDD/WCDMA/GSM
SPECIFICATIONS

LTE_FDD B1/B3/B7 LTE_TDD B41/B40
WCDMA B1//B2/B5
GSM 900/1800/1900
Data Acquisition (Optional)
Fingerprint identification
Supports fingerprint entry, image collection, fingerprint recognition, fingerprint deletion etc.
Type: TCSIST semiconductor sensor
Acquisition window size: 24.5*19mm
Effective image size:15.5*18.5mm
Sensor type: capacitive
Image size: 256*360 pixel
Resolution: 500 DPI
Matching mode: contrast mode(1:1); search mode(1:N)
Far infrared meter reading Working frequency 37.9K

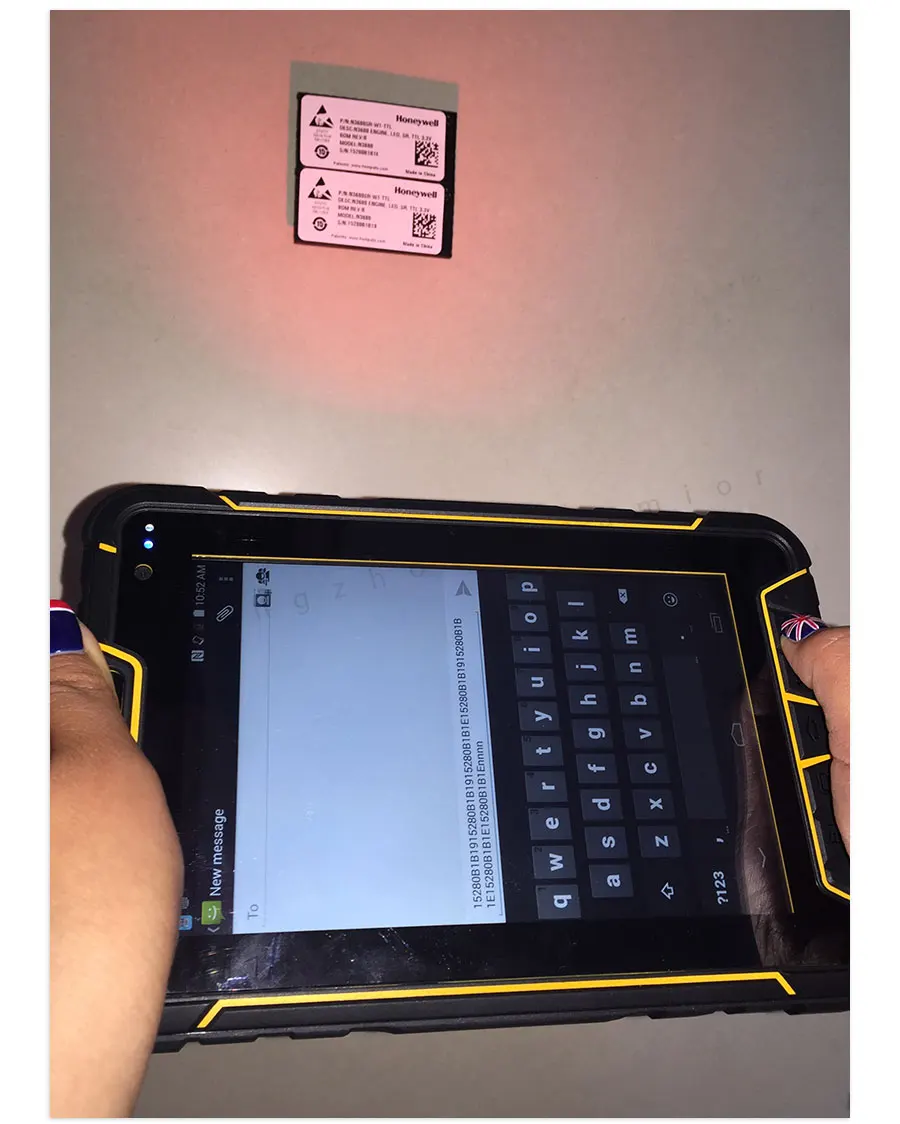

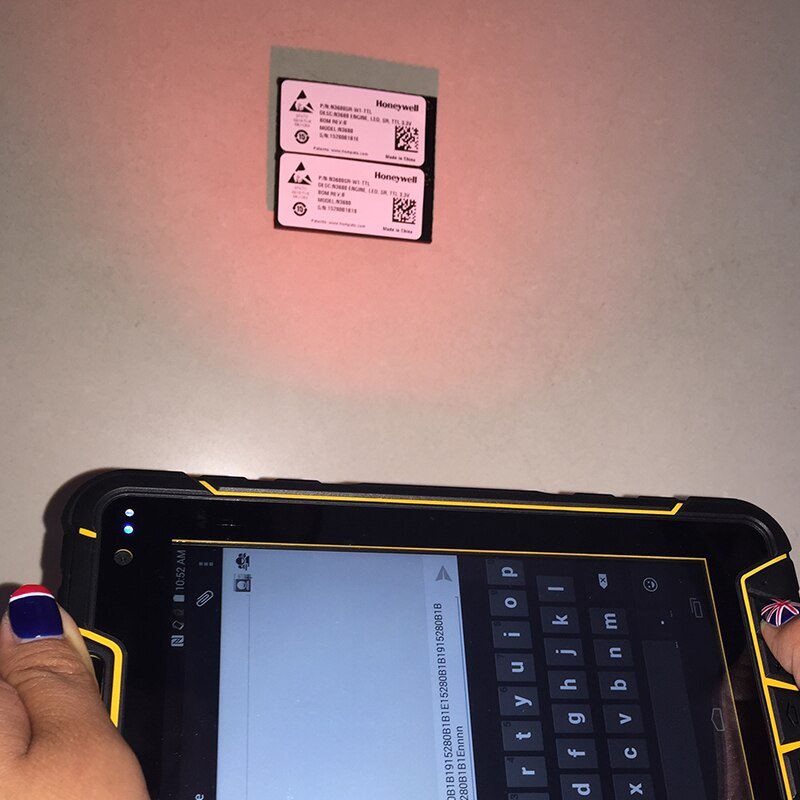

Barcode Scanning
1D Infrared Scanner Index:
Scanning speed: 50 times/second
Scanning distance: 5.7cm-60.96cm
Scanning angle: 53.3° ±3°
1D Laser Scanner Index:
Scanning speed: 104 times/second+12 times/second (two way scanning)
Scanning distance: 2.5cm-114.3cm
Scanning angle: 47±3°(default) /35±3°(reduced code)
2D Barcode Scanner Index:
Identification ability: 1D, 2D, OCR
Scanning angle: rotate 360°, incline±50°, deflection ±50°
Field of View: Horizontal 36°, vertical 23°
Depth of field: 4cm-23.5cm
Environmental luminance: 0~100,000 LUX
RFID
LF RFID:
134KHZ LF RFID or 124KHZ LF RFID
NFC (HF) RFID:
Working frequency: 13.56MHZ
Profile: Support ISO/IEC 15693, ISO/IEC 14443A profile
Support Cards: SR176, SRIX4K (TYPE-B), I- Code2, TI RFID label-it HF-I, EM4034, Mifare Classic ETC
Identification distance: not more than 5cm
UHF RFID:
Working frequency: 840-960MHz(customization of required frequency band)
Support agreement: EPC C1 GEN2/ISO 18000-6C
Output power: 10dBm-30dBm
Identification distance: not more than 6m
Physical Parameters

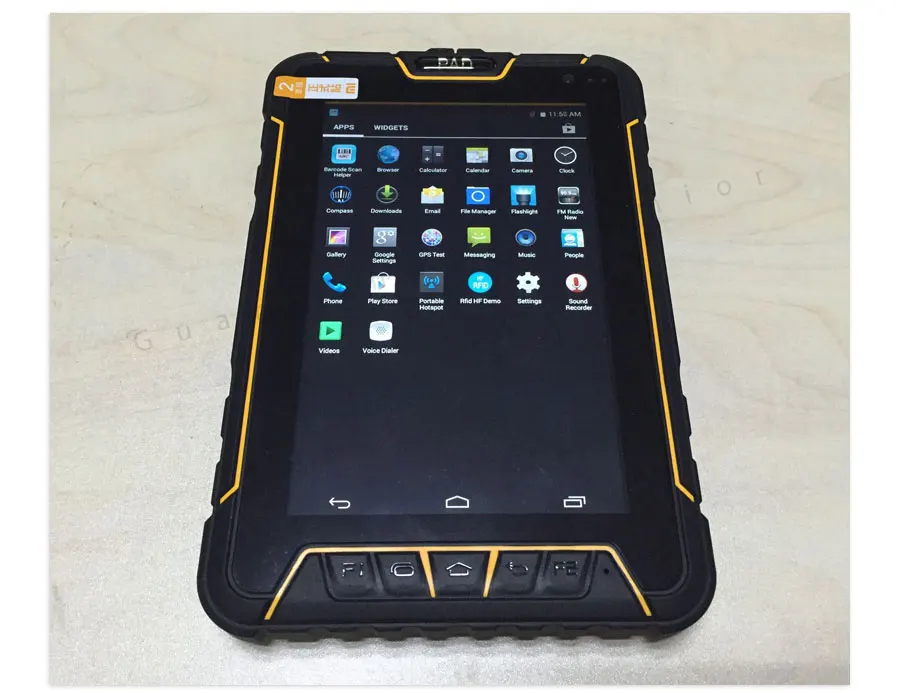

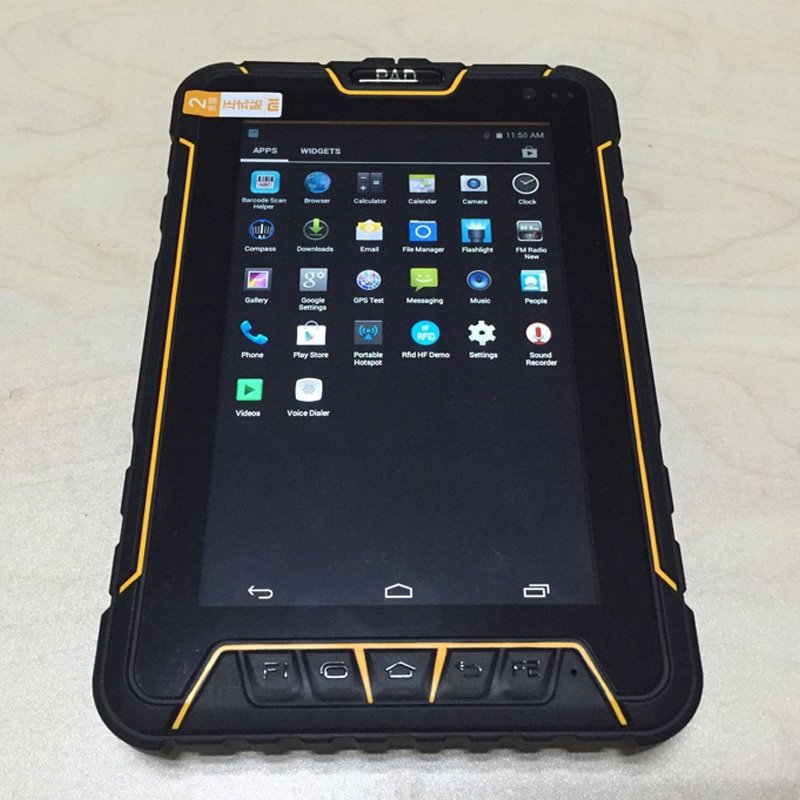

Display Screen 7 inch LCD screen, 1280×800 IPS screen, capacitive touch screen

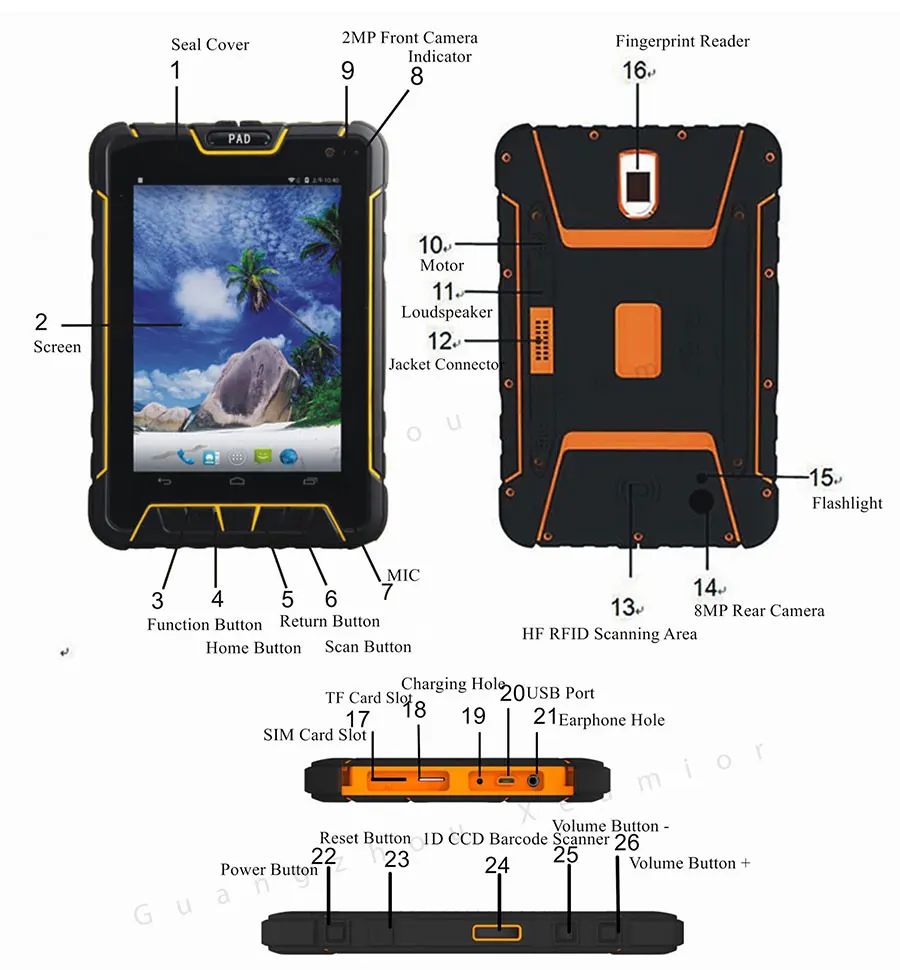

Keyboard Android menu, Homepage, Return, Volume, Barcode, ON/OFF, Reset

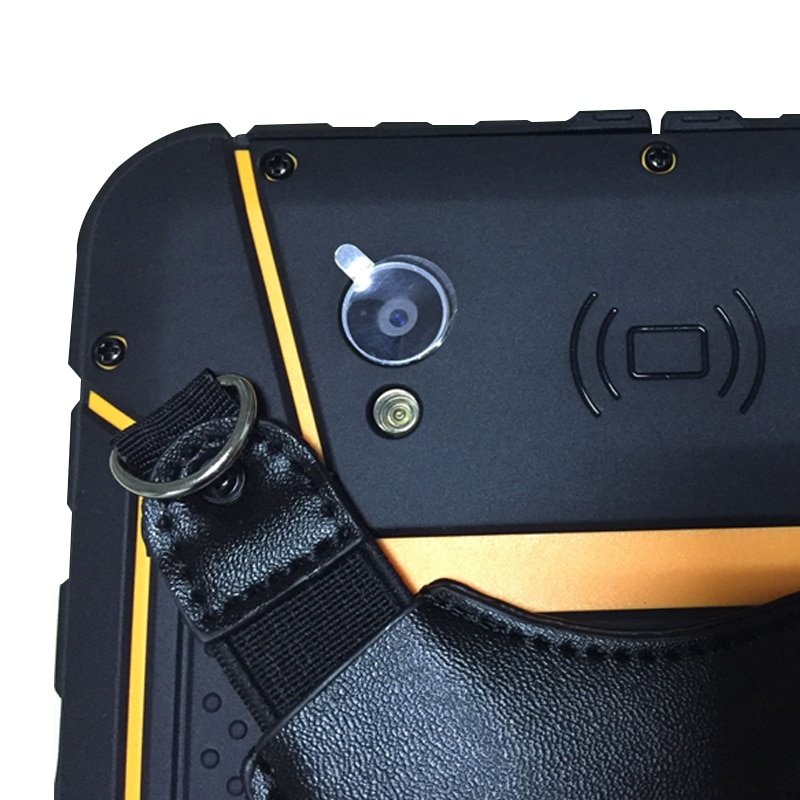

Camera 2 million pixels front camera, 8 million pixels rear camera with automatic focus and lighting function
Headset 3.5mm audio Interface, has mike and telephone receiver
LED indicator light Support (ordinary flicker, Call fast flicker, missed calls) three status bar
Flashlight Function S Support, can be used for emergency lighting
Googleplay store S Support
Gravity sensor Support
Compass Support
Vibrating motor Support
FM Support
Rechargeable Lithium Battery 3.7V, 7200mAh
Standby Standby current less than 10mA
Dimension 208*140*20mm
Weight 620g



Additional information

Weight2.60 kg
Dimensions35.00 × 25.00 × 16.00 cm
Options

1D Add LF RFID125KHz, 1D Add LF RFID134KHz, 2D Add LF RFID125KHz, 2D Add LF RFID134KHz, 2D Scanner, Standard function

Optional

CCD/1D/2Dbarcodescanner

CPU

MSM8916,A53,4coreCPU,1.2GHz

Type

BarcodeScanner

bluetooth

4.0

Novelty

New

RAM

2G,FLASH:16G
